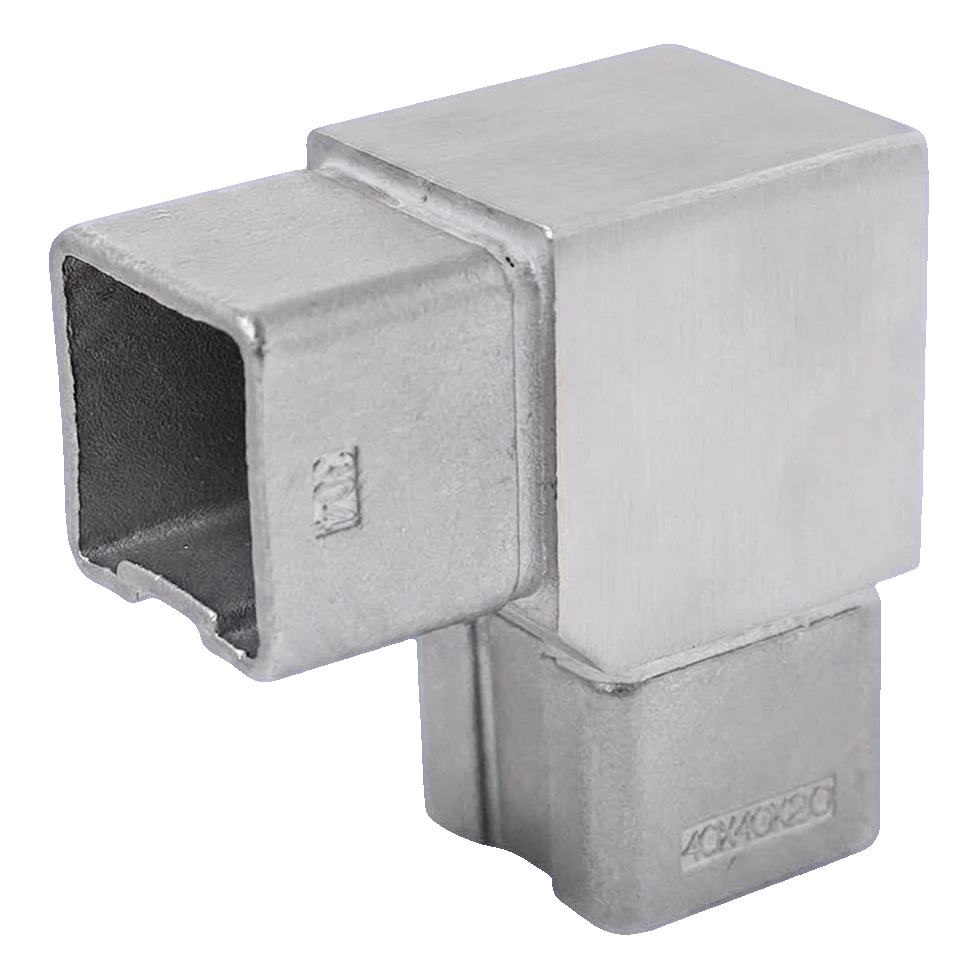

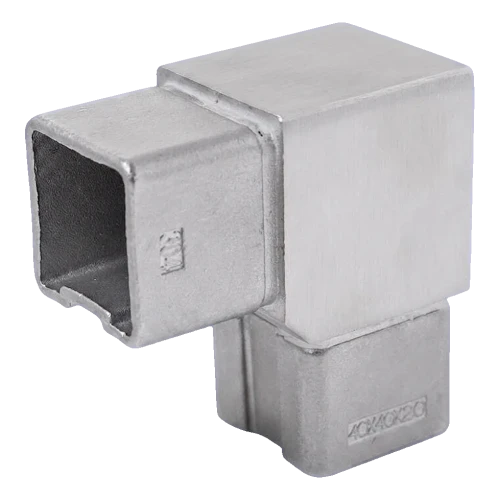

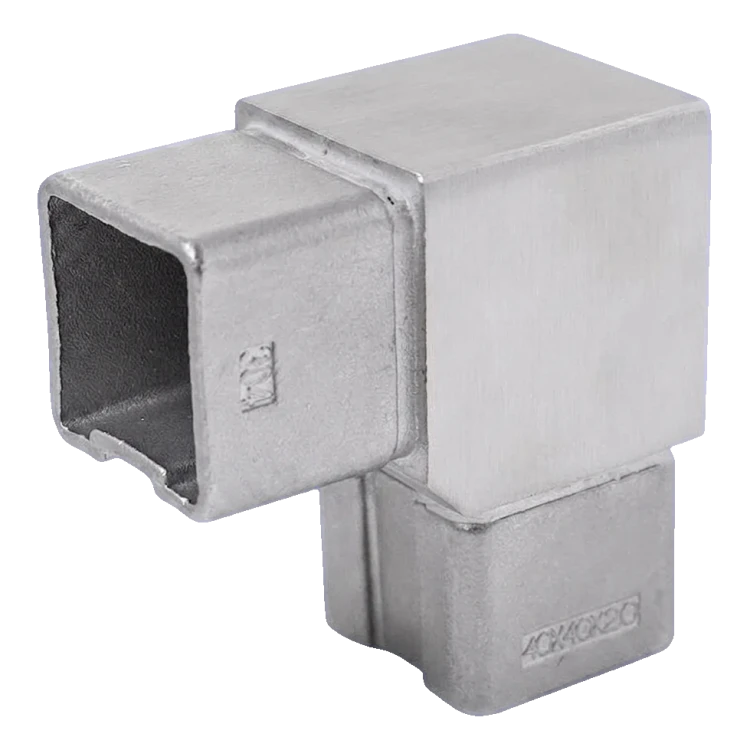

90° Elbow for 40x40 mm Balustrade Profile – AISI304 Stainless Steel, Satin Finish
0
Description
90° Elbow for 40x40 mm Balustrade Profile – AISI304 Stainless Steel, Satin Finish
90° elbow is a precision corner connector designed for constructing glass balustrades in 40x40 mm square profile systems. Made from AISI304 stainless steel with satin surface finish, it provides aesthetic and durable connection of two profiles at right angles. Through bonded assembly (inserted into profile), you achieve invisible, clean connection without screws and mounting holes — ideal solution for modern glass balustrades in commercial and residential buildings.
The connector is mounted using anaerobic adhesive, which bonds upon contact with metal and hardens after cutting off the air supply. This mounting technology guarantees permanent and sealed connection without the need for welding, which significantly reduces construction time on site.
Technical Parameters
- Angle: 90°
- Compatible profile: 40x40x2 mm

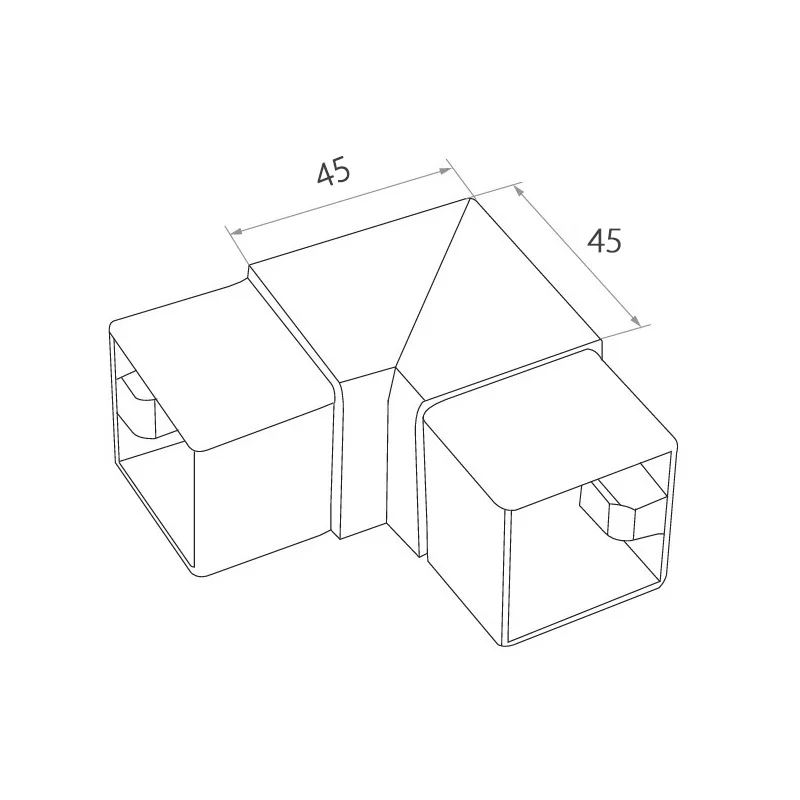

- External arm dimensions (after assembly): 45 × 45 mm
- Material: AISI304 stainless steel
- Surface finish: satin
- Assembly: bonded into profile (anaerobic adhesive)
- Weight: 0.28 kg
- EAN: 5903313206235
Application
The 90° elbow is a key structural element in glass balustrade systems based on 40x40 mm square profiles. It enables creating corners, direction changes in balustrade routing and connections at right angles. The satin surface finish harmoniously complements other elements of the stainless steel balustrade system, ensuring cohesive and elegant appearance of the entire structure.
Technical data
| Material | AISI 304 |
| Finish | Satin |
