12V 1A Plug-in Power Supply for VIANO RGB LED Strip Devices (OP01210)
Description

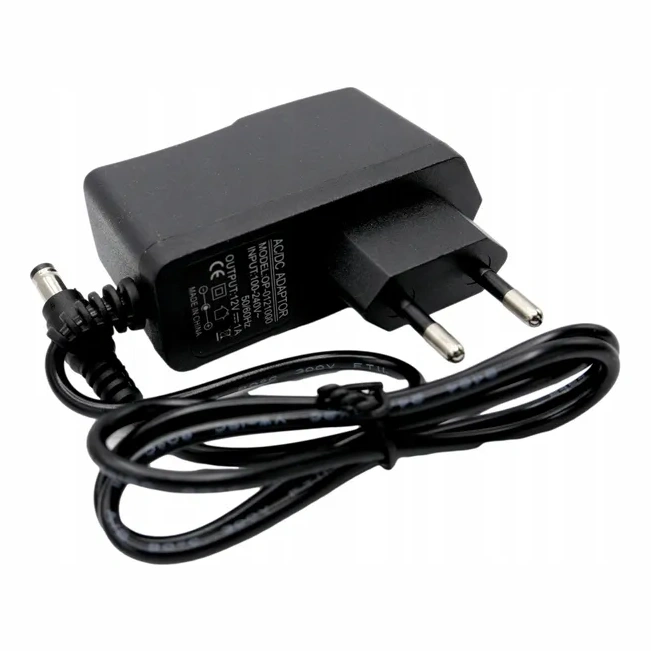

Plug-in Power Supply 12V 1A 12W – DC Plug 2.5×5.5 mm

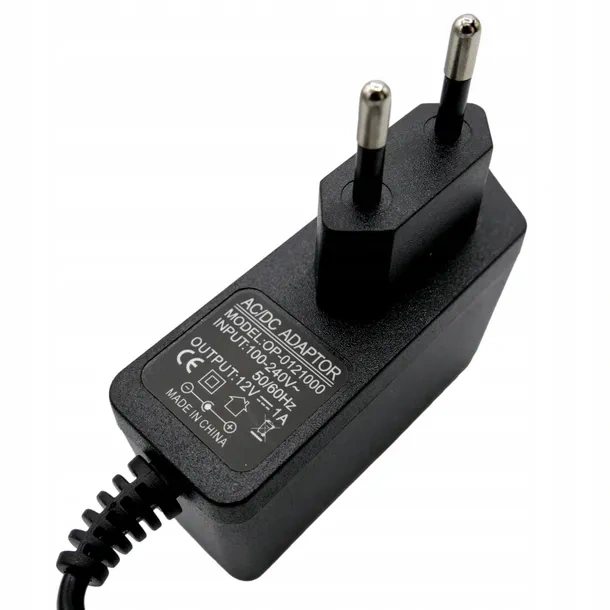

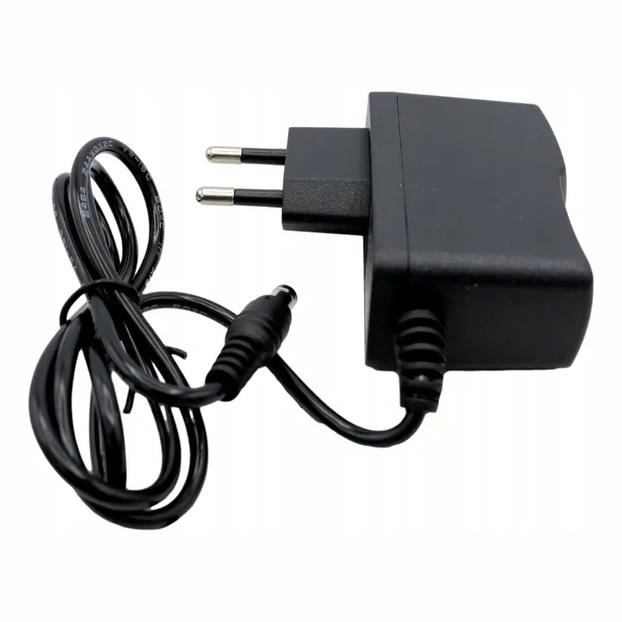

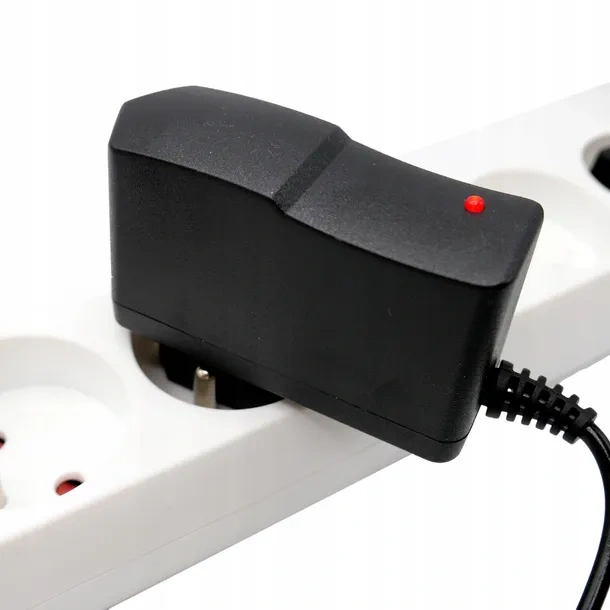

Plug-in Power Supply 12V 1A 12W is a reliable AC/DC mains adapter designed for powering low-voltage devices such as LED strips, routers, IP cameras and automation controllers. The compact, plug-in design allows direct connection to a 230V socket — with no additional cables on the supply side.

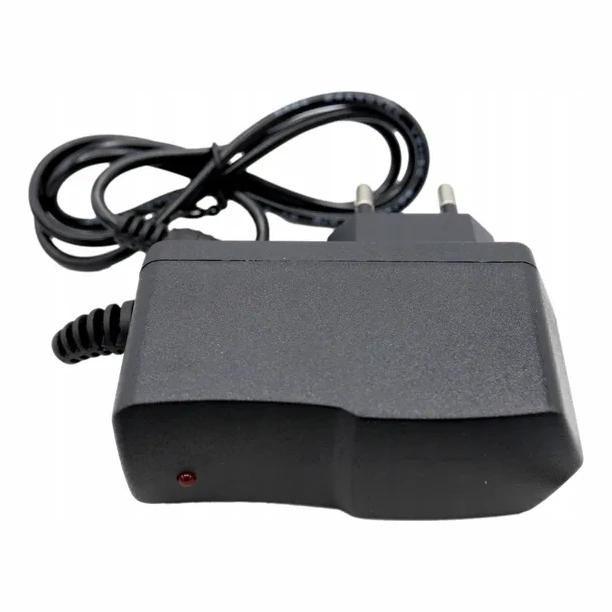

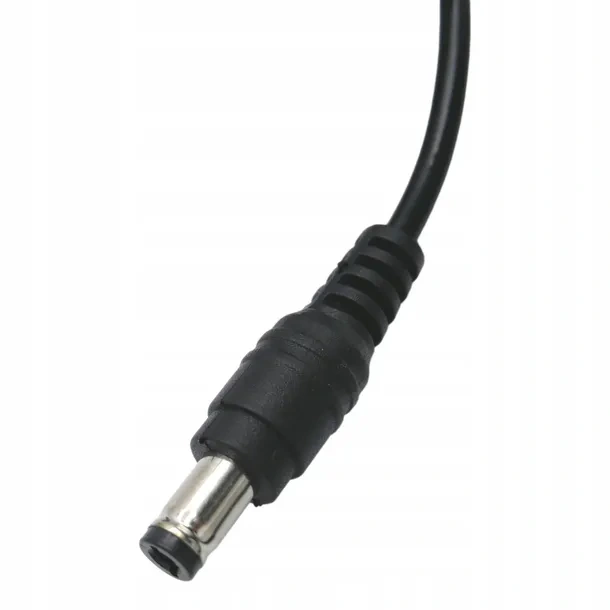

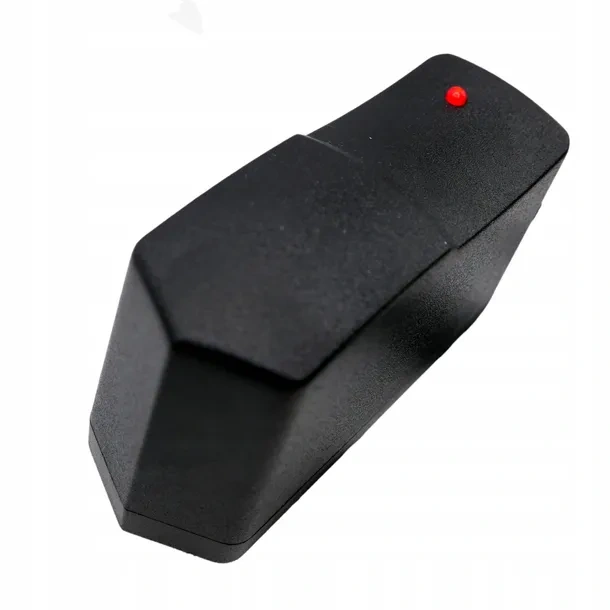

The power supply is equipped with a straight round DC plug measuring 2.5×5.5 mm (positive centre), ensuring compatibility with a wide range of 12V devices featuring a standard power socket. A red LED indicator signals correct operation of the unit, allowing instant verification that the power supply is active.
Wide input voltage range (100–240 VAC, 50/60 Hz) ensures stable operation even in networks with unstable voltage. Momentary voltage drops — for example, caused by switching on large loads nearby — will not cause a reset of the powered device. This is a significant advantage wherever continuity of operation is critical: in surveillance, Wi-Fi networks or automation systems.
Safety and Certifications

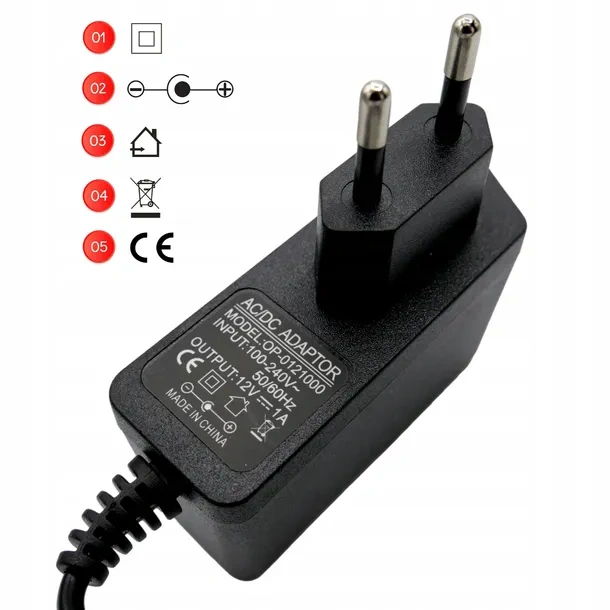

The power supply is manufactured in Class II protection — it features reinforced, double insulation between the mains and the output. As a result, it does not require earthing and is connected via a two-core supply cable. The unit bears the CE marking, confirming compliance with European Union standards, and does not generate electromagnetic interference that could affect the operation of nearby radio, TV and electronic equipment.

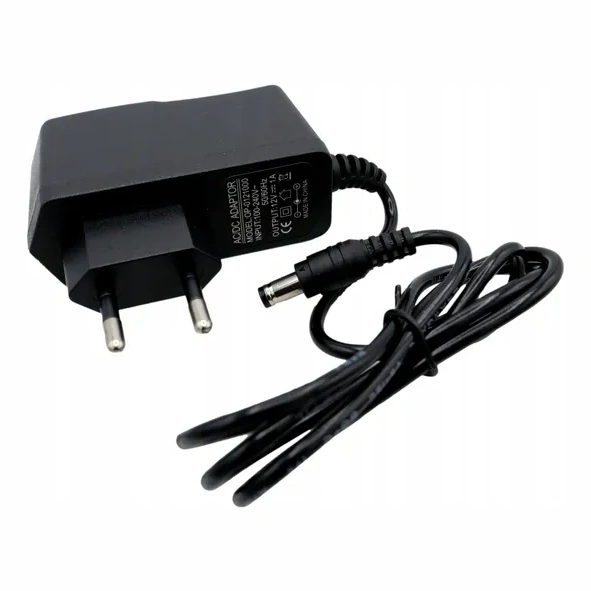

Thick, flexible output cable measuring 82 cm in length is another advantage of this power supply. The large cross-section of the copper conductors minimises voltage drop along the cable, resulting in higher energy efficiency and less heating. Silicone plastic insulation retains flexibility even at low temperatures — the cable does not stiffen or crack, which increases its service life during everyday use.
Technical Specifications
- Input voltage: 100–240 VAC, 50/60 Hz
- Output voltage: 12V DC
- Maximum output current: 1A
- Power: 12W

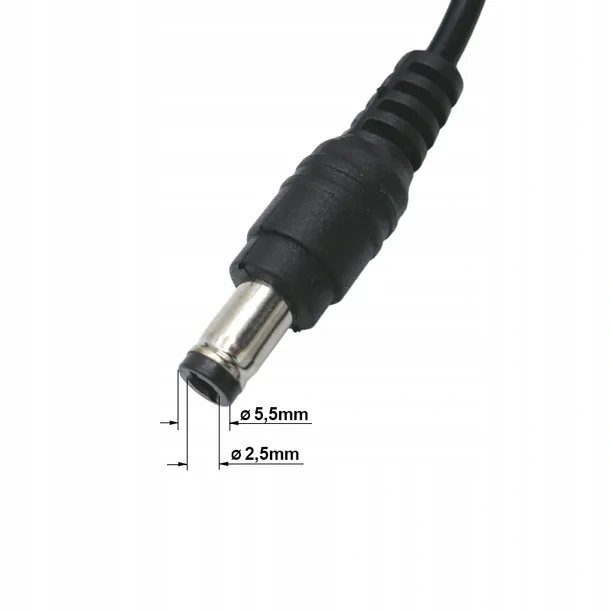

- Output plug: DC 2.5×5.5 mm, straight, positive centre
- Cable length with plug: 82 cm
- Protection class: II (double insulation)
- Ingress protection rating: IP20 (for indoor use)
- Housing dimensions: 25 × 75 × 80 mm (W × D × H)
- Operation indicator: LED (red)
- CE marking: yes

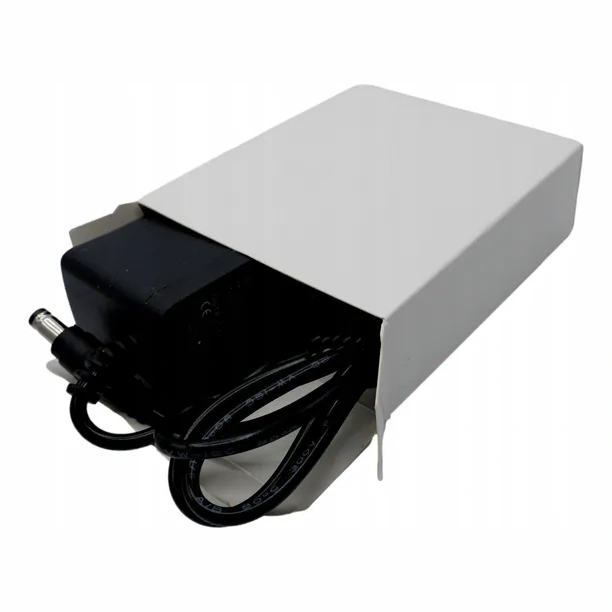

Application: the power supply is ideal as a 12V DC voltage source for LED strips (including RGB), routers, network switches, surveillance cameras, home automation controllers and other electronic devices equipped with a DC 2.5×5.5 mm socket. The unit is supplied in original cardboard packaging.
