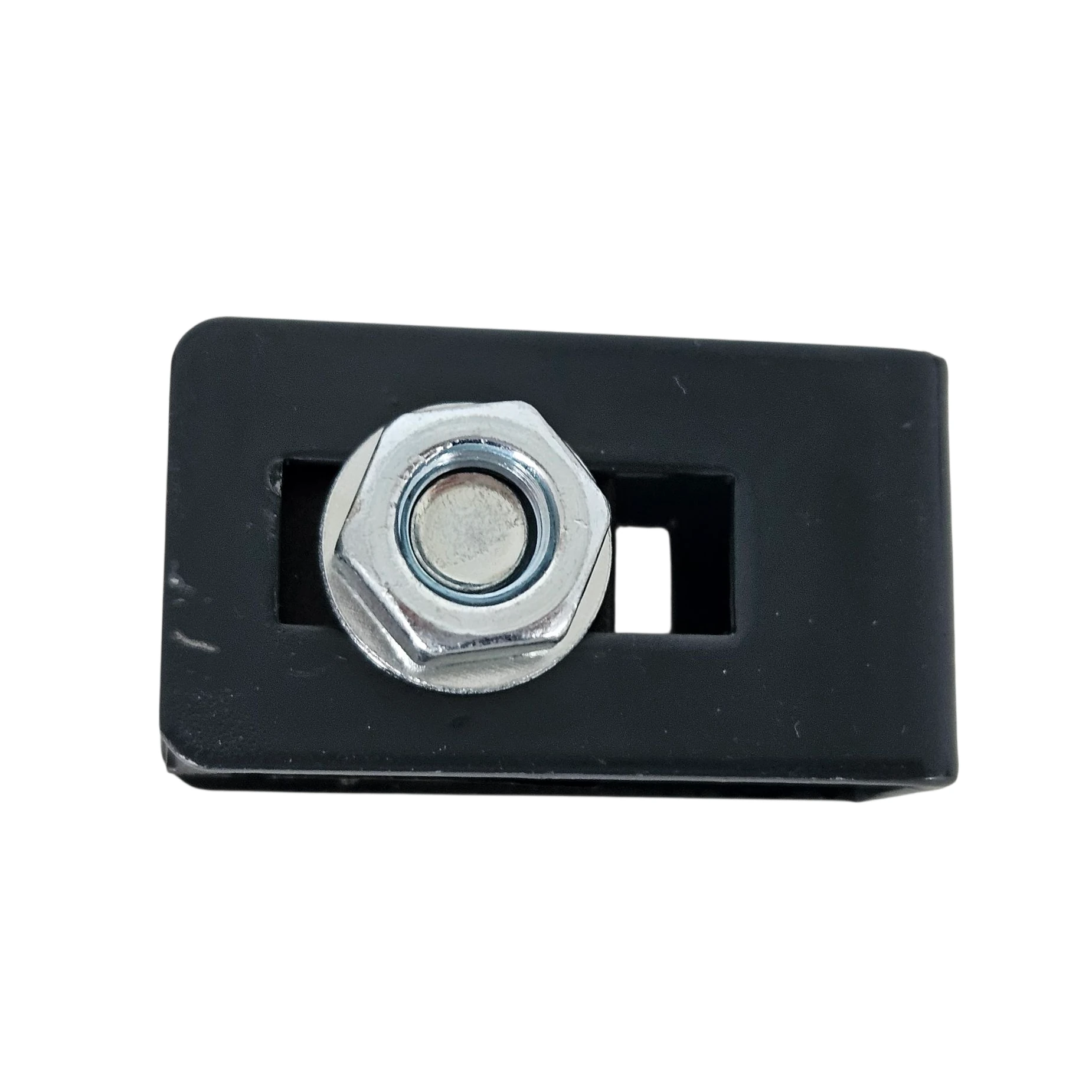

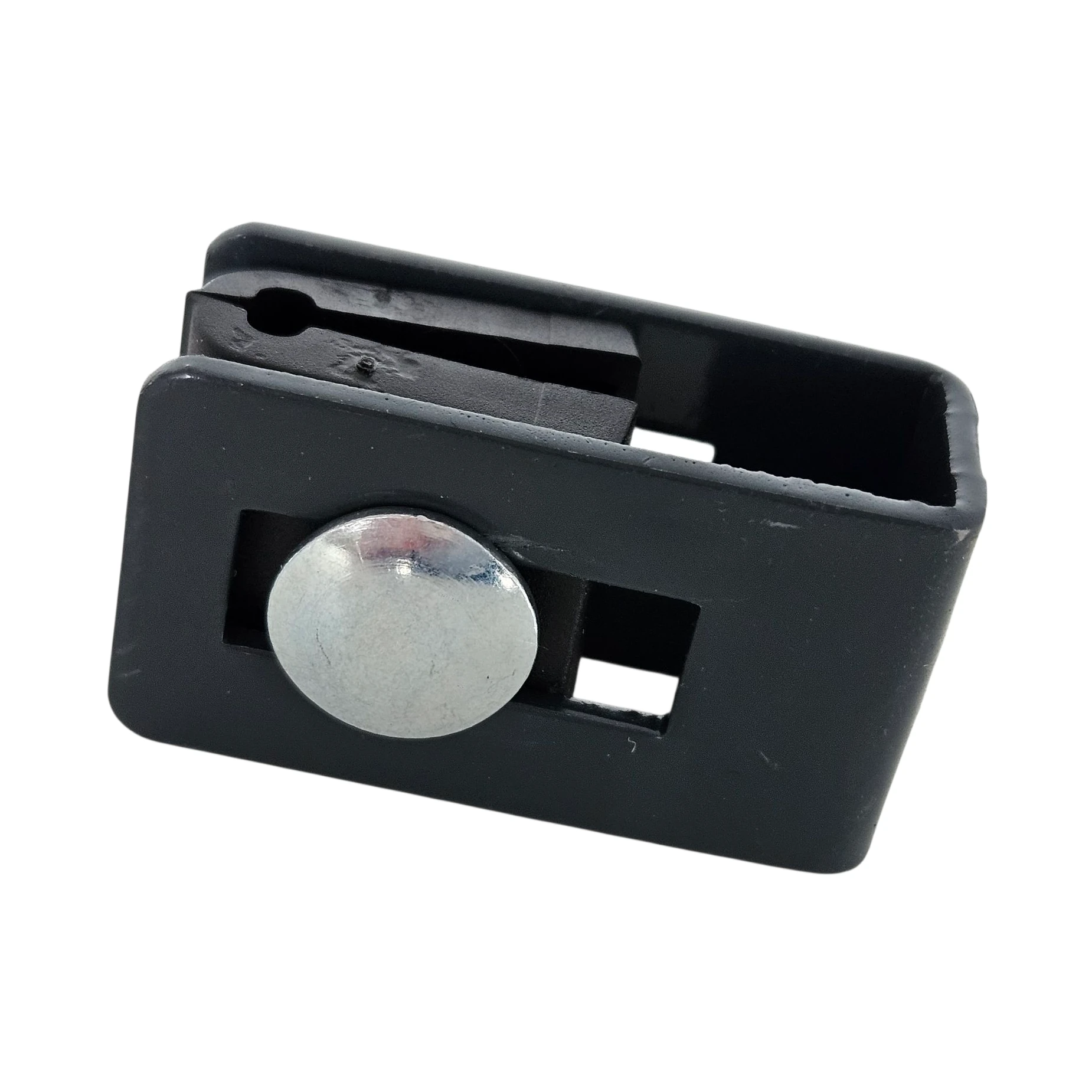

  • Universal bracket, holder, and connector for fence panels, anthracite graphite GPV-700-16
  • Universal bracket, holder, and connector for fence panels, anthracite graphite GPV-700-16 (2)
  • Universal bracket, holder, and connector for fence panels, anthracite graphite GPV-700-16 (3)
Synerga

Universal clamp bracket connector for fence panels anthracite

Go to Product feedback

Universal clamp for fence panels RAL 7016 anthracite, powder-coated galvanised steel. Complete set with 4 mm spacer, M8x25 mm bolt, nut and washer. Slotted mounting hole enables position adjustment.

Go to full description
with VAT without VAT
Price €0.46
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] obejmy #164

  • Accessory Type Universal clamp
  • Colour Graphite RAL 7016

Description

Universal fence post clamp · panel connector

2 mm sheet steel bent into a U shape with an internal clearance of 16 mm, a slotted hole for adjustment, a plastic spacer for Ø 4 mm wire and an M8 × 25 bolt

universalpanel connector
Ø 4 mmwire spacer
M8 × 25bolt included
zinc-coated and powder-coated, anthracite RAL 7016coating

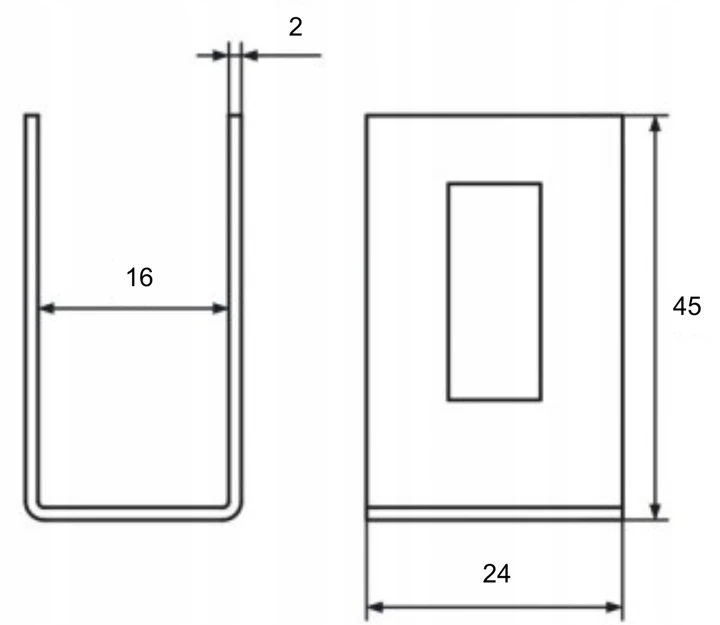

Universal fence post clamp dimension drawing: internal clearance g = 16 mm, sheet thickness s = 2 mm, width 24 mm, height 45 mm
Open the dimension drawing in full size
Illustrative drawing: side view with spacer and bolt, and front view. Dimensions as shown in the manufacturer's drawing.

Quick choice

ApplicationSecuring fence panels to posts of various cross-sections
SelectionFor panels made from Ø 4 mm wire; spacer for Ø 3 mm lub Ø 5 mm wire available on request
ConditionsThe zinc coating protects the steel against corrosion under typical conditions; in the event of contact with salt, chemicals or constant moisture, choose a version suitable for the exposure conditions

About the product

The universal fence post clamp (connector) is used to secure fence panels to posts of various cross-sections. The U-shaped sheet steel fits around a plastic spacer that holds the panel wire.

The internal U clearance is 16 mm, the sheet thickness is 2 mm and the clamp measures 24 × 45 mm. The slotted hole allows the M8 × 25 bolt to slide so that the panel position can be adjusted. The kit includes: a clamp, a spacer for Ø 4 mm wire, a bolt, a nut and a washer.

The coating (zinc-coated and powder-coated, anthracite RAL 7016) protects the steel against corrosion under typical conditions. In the event of contact with salt, chemicals or constant moisture, choose a version suitable for the exposure conditions.

Dimensions

Internal U clearance (g)16 mm
Sheet thickness (s)2 mm
Width × height24 × 45 mm
Bolt with nut and washerM8 × 25
Plastic wire spacerØ 4 mm
Dimensions as shown in the manufacturer's drawing; slotted hole dimensions are indicative.

Material and coating

Materialsteel
Coatingzinc-coated and powder-coated, anthracite RAL 7016

Unit of sale

Sales unit1 pcs

Selection and installation

  • ✓Check the panel wire diameter – the kit includes a spacer for Ø 4 mm wire.
  • ✓Place the panel wire in the opening in the plastic spacer inside the clamp.
  • ✓Pass the M8 × 25 bolt through the slotted holes, adjust the panel position and tighten the nut with the washer in place.

Important

The spacer supplied is sized for Ø 4 mm wire. For a different wire diameter, order a spacer for Ø 3 mm lub Ø 5 mm wire – specify this in the order comments.

Files to download

File icon Narrow universal bracket.pdf 151.43 kB
