Unequal aluminium angle 80×20×2 mm – L profile, length 2000 mm

Go to Product feedback

Unequal aluminium angle L, alloy EN AW-6060 T6/T66 (AlMgSi0.5). Leg A: 80 mm, leg B: 20 mm, wall thickness: 2 mm, length: 2000 mm. Weight: 1.12 kg (0.56 kg/m). Raw (unanodised) surface finish.

Go to full description
with VAT without VAT
Price €12.51
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] katowniki-nierownoramienne #148

  • Material Aluminium
  • Height [mm] 80
  • Wall Thickness [mm] 2
  • Length [mm] 2000

Description

Unequal aluminium angle 80×20×2 mm – L profile, length 2000 mm

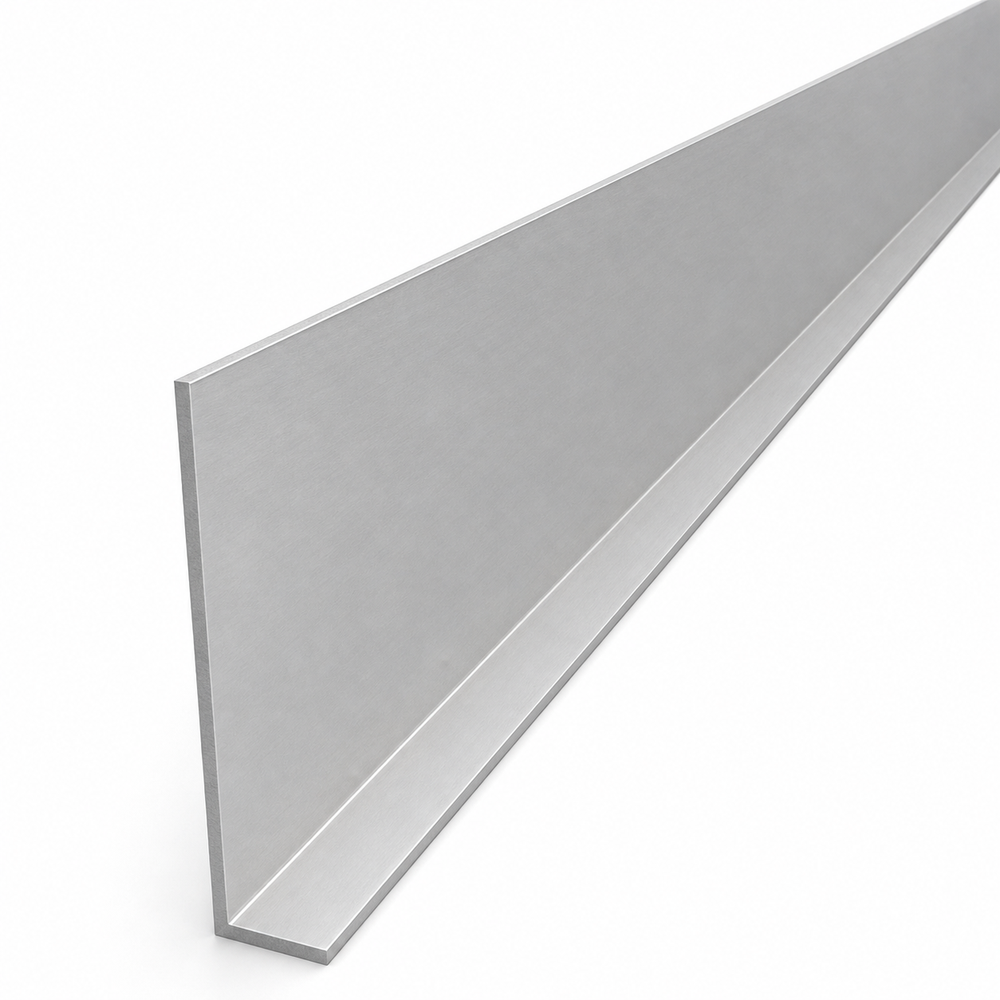

Unequal aluminium angle 80×20×2 mm – view of L profile
Unequal aluminium angle 80×20×2 mm – view of L profile

The unequal aluminium angle 80×20×2 mm is a robust L-type profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its unequal legs — 80 mm and 20 mm — the profile is ideal wherever an asymmetric support or a lightweight finishing element is required.

The length of the section is 2000 mm, and the total weight of the profile is just 1.12 kg (linear density 0.56 kg/m), making it easy to machine, quick to transport and convenient to install — even at height. The raw (unanodised) surface allows further processing: anodising, powder coating, or leaving uncoated in indoor applications.

Applications

The unequal angle profile is well suited for support structures, mounting frames, edge trims, panel reinforcements and repairs of aluminium components. In the photovoltaic industry it can serve as a spacer element, reinforcing strip or cable guide in sub-structure assemblies.

Cross-section dimensions

Dimensional drawing of the 80×20×2 mm aluminium angle cross-section with labels A, B, T
Dimensional drawing of the 80×20×2 mm aluminium angle cross-section with labels A, B, T

The diagram alongside shows the profile cross-section with dimensional labels A, B and T:

  • Leg A (longer): 80 mm
  • Leg B (shorter): 20 mm
  • Wall thickness T: 2 mm

Technical specification

  • Profile type: unequal angle (L)
  • Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
  • Leg A: 80 mm
  • Leg B: 20 mm
  • Wall thickness: 2 mm
  • Length: 2000 mm
  • Surface finish: raw (unanodised)
  • Total weight (2 m): 1.12 kg
  • Linear weight: 0.56 kg/m

Properties of EN AW-6060 T6/T66 alloy

The AlMgSi0.5 alloy in the T6/T66 heat-treatment condition combines good mechanical strength with high corrosion resistance and ease of machining. The profile can be cut, drilled and milled using standard workshop tools. Aluminium requires no anti-corrosion maintenance in indoor conditions, and after anodising it retains its durability outdoors as well.
