Unequal aluminium angle 60×20×2 mm – L-profile, length 2000 mm
0
Description

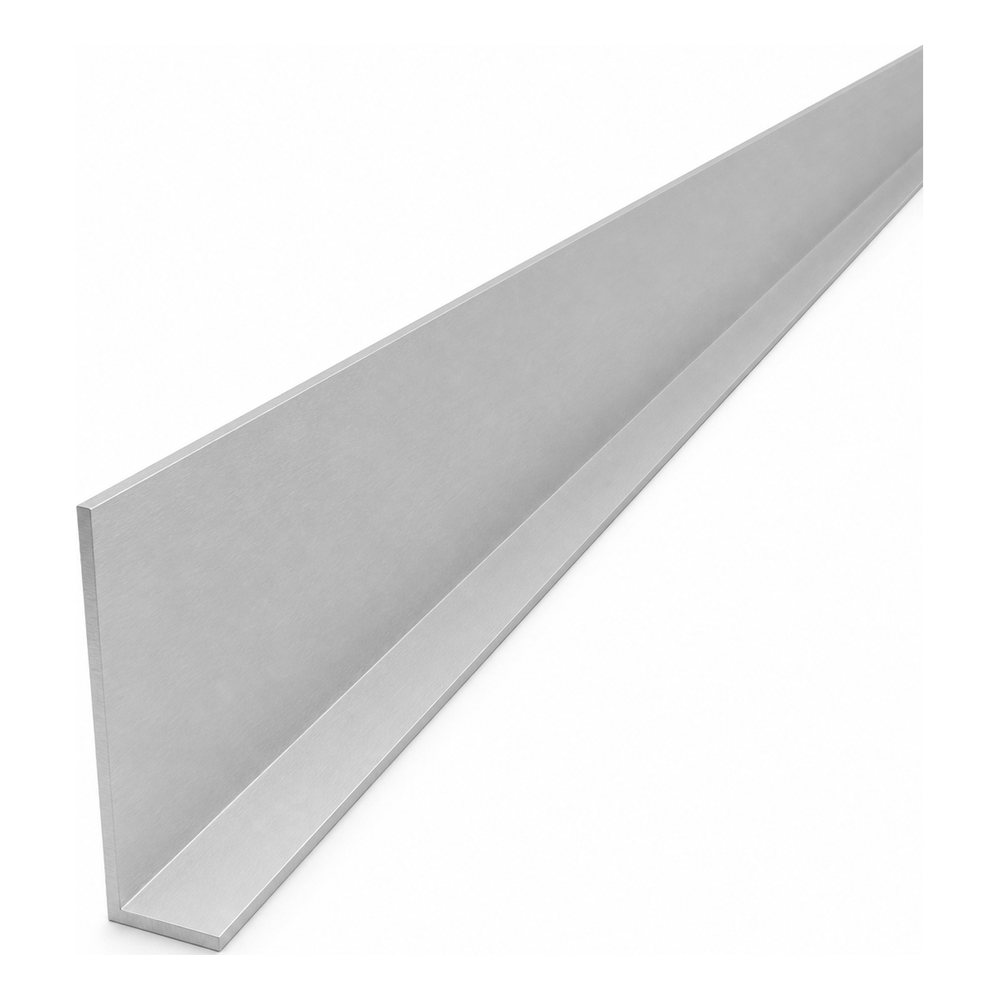

Unequal aluminium angle 60×20×2 mm – L-profile, length 2000 mm
Unequal aluminium angle 60×20×2 mm is a versatile L-profile designed for support structures, trims, mounting frames, and repair work. Made from alloy EN AW-6060 T64 (AlMgSi0.5 / PA38), it combines low weight with high rigidity and natural corrosion resistance. The section length is 2000 mm, making it easy to match typical construction dimensions without the need for additional cutting.
The unequal legs (60 mm × 20 mm) allow flexible design of joints and nodes — the longer leg provides a greater mounting surface, whilst the shorter leg acts as a support or flange. The mill finish, non-anodised surface allows further processing: anodising, powder coating, or leaving in its as-manufactured state for applications that do not require a decorative finish.
Technical Specification

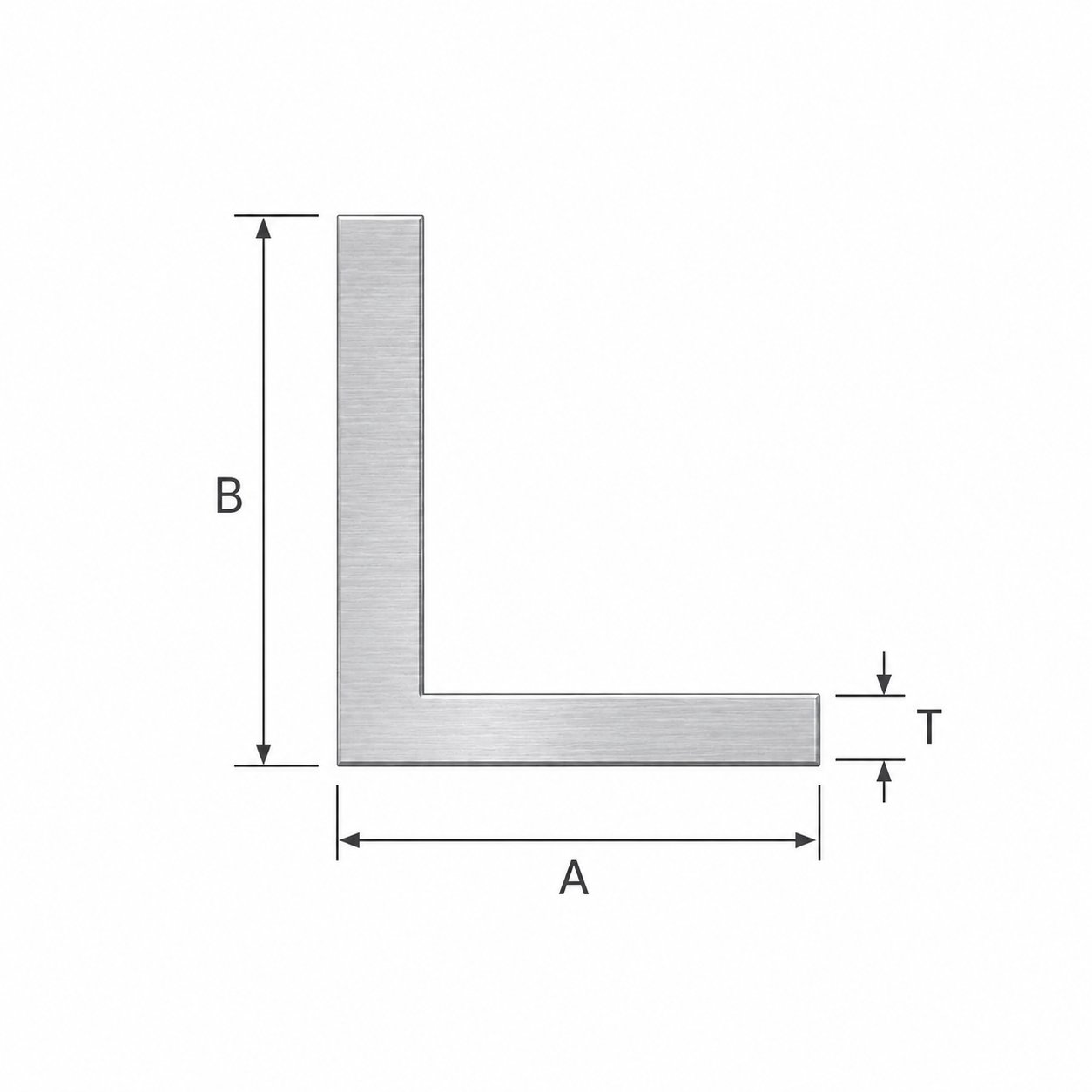

- Section type: unequal angle (L-profile)
- Leg A (longer): 60 mm
- Leg B (shorter): 20 mm
- Wall thickness T: 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: mill finish (non-anodised)
- Weight per 2 m section: 0.82 kg (0.41 kg/m)
Applications
The profile is suitable wherever a lightweight and sturdy angled connection is required: support structures for photovoltaic installations, protective frames, panel stiffeners, façade trim elements, and light metalwork and modelling projects. Thanks to the 6060 T64 alloy, the profile is easy to machine — cutting, drilling, and riveting — whilst retaining good tensile and bending strength.
