Unequal aluminium angle 50×30×2 mm – L-profile, length 2000 mm

Go to Product feedback

Unequal aluminium angle EN AW-6060 T6/T66, L-profile 50×30×2 mm, length 2000 mm, weight 0.84 kg. Raw, non-anodised surface. Suitable for internal and external structural applications.

Go to full description
with VAT without VAT
Price €9.38
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] katowniki-nierownoramienne #148

  • Material Aluminium
  • Height [mm] 50
  • Wall Thickness [mm] 2
  • Length [mm] 2000

Description

Unequal aluminium angle 50×30×2 mm – L-profile, length 2000 mm

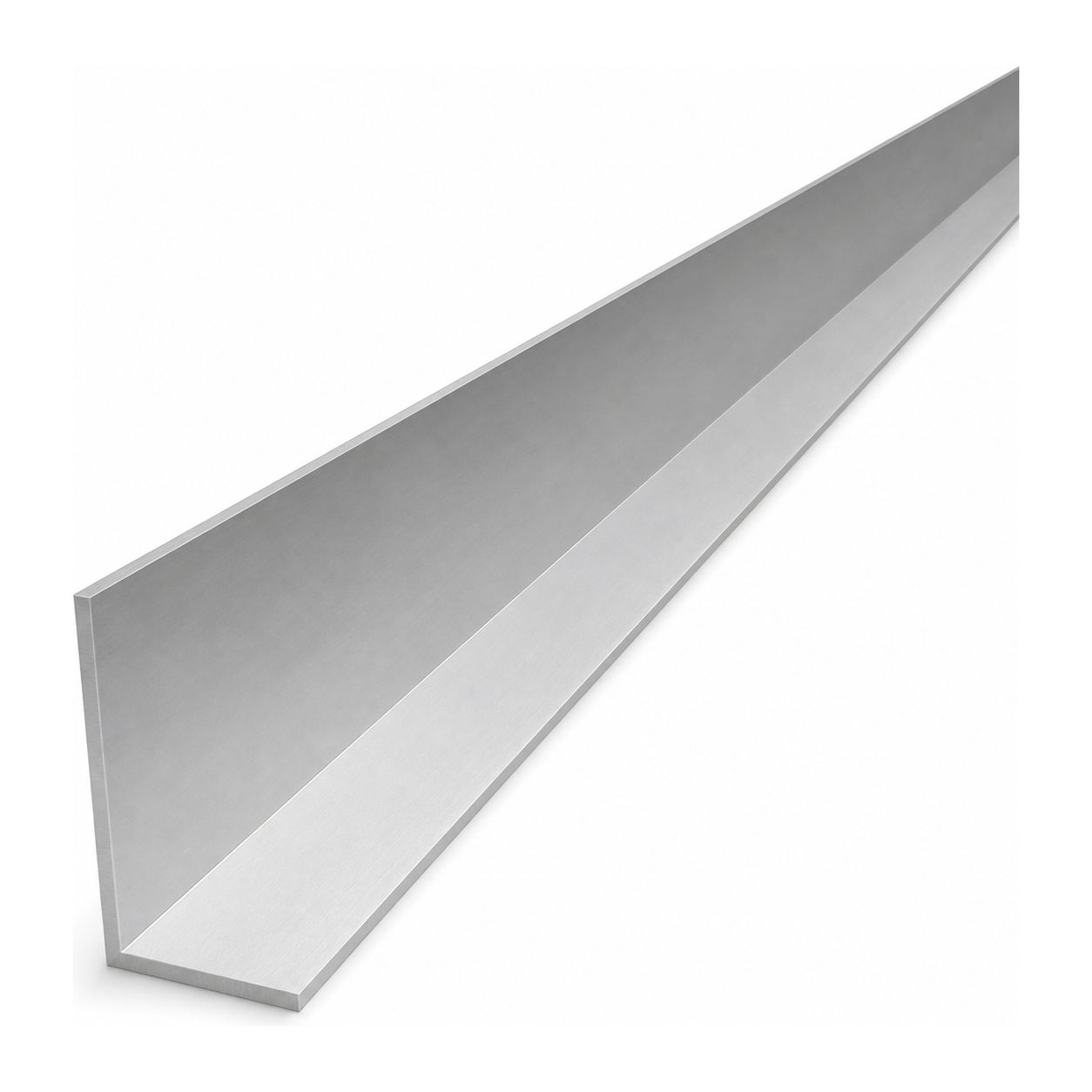

Unequal aluminium angle 50×30×2 mm – perspective view of the L-profile
Unequal aluminium angle 50×30×2 mm – perspective view of the L-profile

Unequal aluminium angle 50×30×2 mm is a versatile L-profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its unequal legs (50 mm and 30 mm), it is ideal wherever a variation in fixing width is required — from support structures and mounting frames, through edge finishing, to repairs and workshop tasks.

The profile, with a length of 2000 mm and a weight of just 0.84 kg, combines low weight with high rigidity. The 6060-series aluminium in T6/T66 temper offers good mechanical strength and natural corrosion resistance, allowing the angle to be used both indoors and outdoors — without the need for additional surface protection.

Dimensional drawing of the aluminium angle cross-section – dimensions A, B, T
Dimensional drawing of the aluminium angle cross-section – dimensions A, B, T

Technical Specification

  • Cross-section: unequal angle (L-profile)
  • Leg A (longer): 50 mm
  • Leg B (shorter): 30 mm
  • Wall thickness T: 2 mm
  • Length: 2000 mm
  • Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
  • Surface: raw (non-anodised)
  • Total weight (2 m): 0.84 kg (0.421 kg/m)

Applications

The 50×30 mm unequal angle is widely used in installation and structural work. It is suitable as a reinforcing element for frames and structures, edge finishing for sheet metal, and corner protection. The profile can be used effectively in photovoltaic installation support structures, cable trunking fixing systems, and in the construction of lightweight frames and technical enclosures. The raw surface allows further processing — anodising, powder coating, or painting — depending on the aesthetic requirements of the project.
