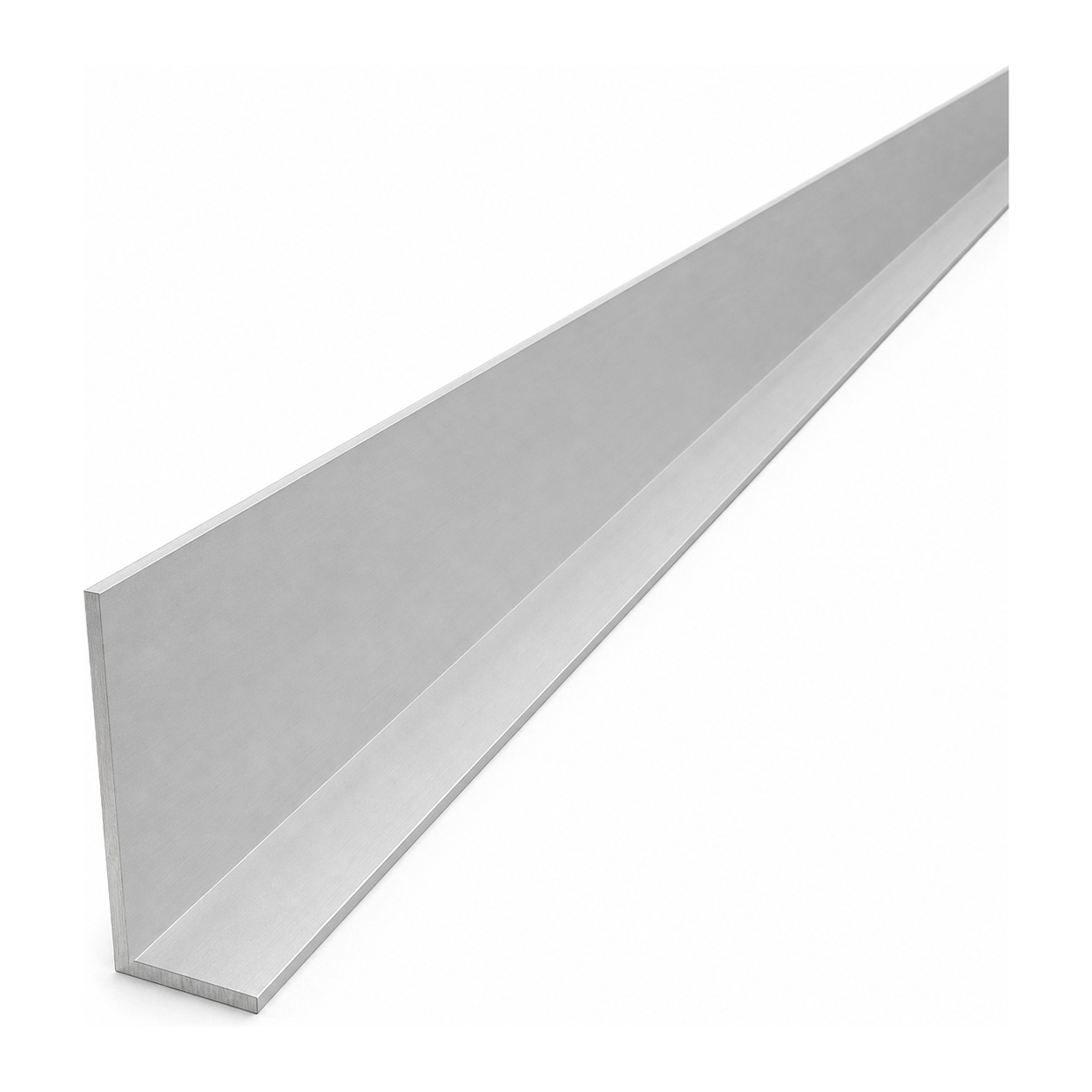

Unequal aluminium angle 50×25×2 mm – L-profile, length 2000 mm
Leave feedback on the product
Unequal aluminium angle EN AW-6060 T6/T66, L-profile. Leg A: 50 mm, leg B: 25 mm, wall thickness: 2 mm, length: 2000 mm. Weight: 0.76 kg/pce. Raw, non-anodised surface.
Product code: 001-704
Product features
[PIM] katowniki-nierownoramienne #148
- Material Aluminium
- Height [mm] 50
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Unequal aluminium angle 50×25×2 mm – L-profile, length 2000 mm
The unequal aluminium angle 50×25×2 mm is a versatile L-type profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). The unequal legs (50 mm and 25 mm) allow optimum adaptation to structures where one leg serves a load-bearing function and the other a mounting or finishing function. The 2000 mm length simplifies cut planning and minimises material waste on site.
Thanks to its low self-weight (0.76 kg per 2 m length, equating to just 0.38 kg/m), the profile is easy to handle and install whilst still providing adequate structural rigidity. The EN AW-6060 T6/T66 aluminium alloy guarantees natural corrosion resistance — the profile is suitable for both indoor and outdoor use without any additional protection.
Applications
The angle section is ideal wherever a lightweight, rigid and weatherproof support structure is required — from frames and guards, through edge reinforcements, to façade finishing elements and photovoltaic installations. The unequal leg configuration offers additional design flexibility compared with symmetrical angle sections.
Technical specification
- Cross-section type: unequal angle (L-profile)
- Leg A (longer): 50 mm
- Leg B (shorter): 25 mm
- Wall thickness T: 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m length: 0.76 kg (0.38 kg/m)
