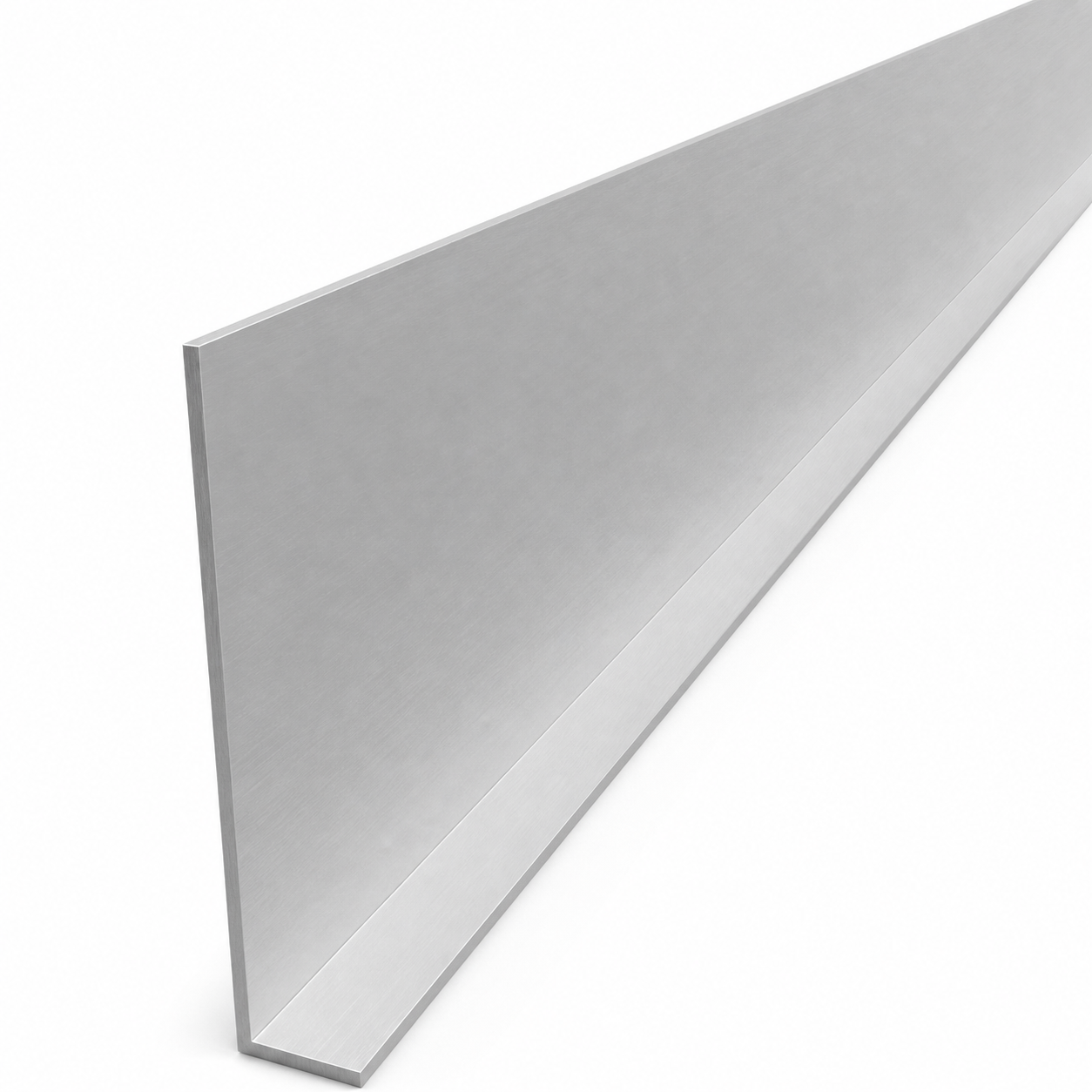

Unequal aluminium angle 100×20×2 mm – L-profile, length 2000 mm
Leave feedback on the product
Unequal aluminium angle, L-profile, alloy EN AW-6060 T6/T66. Leg A: 100 mm, leg B: 20 mm, wall thickness: 2 mm, length: 2000 mm. Weight: 1.28 kg. Raw, non-anodised surface.
Product code: 001-716
Product features
[PIM] katowniki-nierownoramienne #148
- Material Aluminium
- Height [mm] 100
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Unequal aluminium angle 100×20×2 mm – L-profile, length 2000 mm
The unequal aluminium angle 100×20×2 mm is a versatile L-profile designed for structural applications, finishing work, frame construction and repairs. Made from alloy EN AW-6060 T6/T66 (AlMgSi0.5 / PA38), it combines low weight with high rigidity and natural corrosion resistance — properties particularly important for projects requiring durable and lightweight structural solutions.
The unequal leg geometry of the profile (100 mm × 20 mm) allows it to be used as a reinforcing element, finishing strip or support in locations where a standard equal-leg angle would be too bulky or unsuitable in terms of dimensions. The raw, non-anodised surface allows further processing — painting, anodising or powder coating — depending on project requirements.
Benefits for the installer
- Low weight — just 1.28 kg per 2 m length (0.64 kg/m) — easy to transport and install
- Alloy EN AW-6060 T6/T66 — excellent machinability, weldability and resistance to atmospheric corrosion
- Unequal leg profile — flexible use in structures with limited space
- Raw surface — ready for any finishing treatment
- 2000 mm length — standard length for straightforward planning and cutting to size
Technical specification
- Section type: unequal angle (L-profile)
- Leg A (longer): 100 mm
- Leg B (shorter): 20 mm
- Wall thickness T: 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight: 1.28 kg (0.64 kg/m)
