Unequal Leg Aluminium Angle 150×100×10 mm – L-Profile, Length 2000 mm

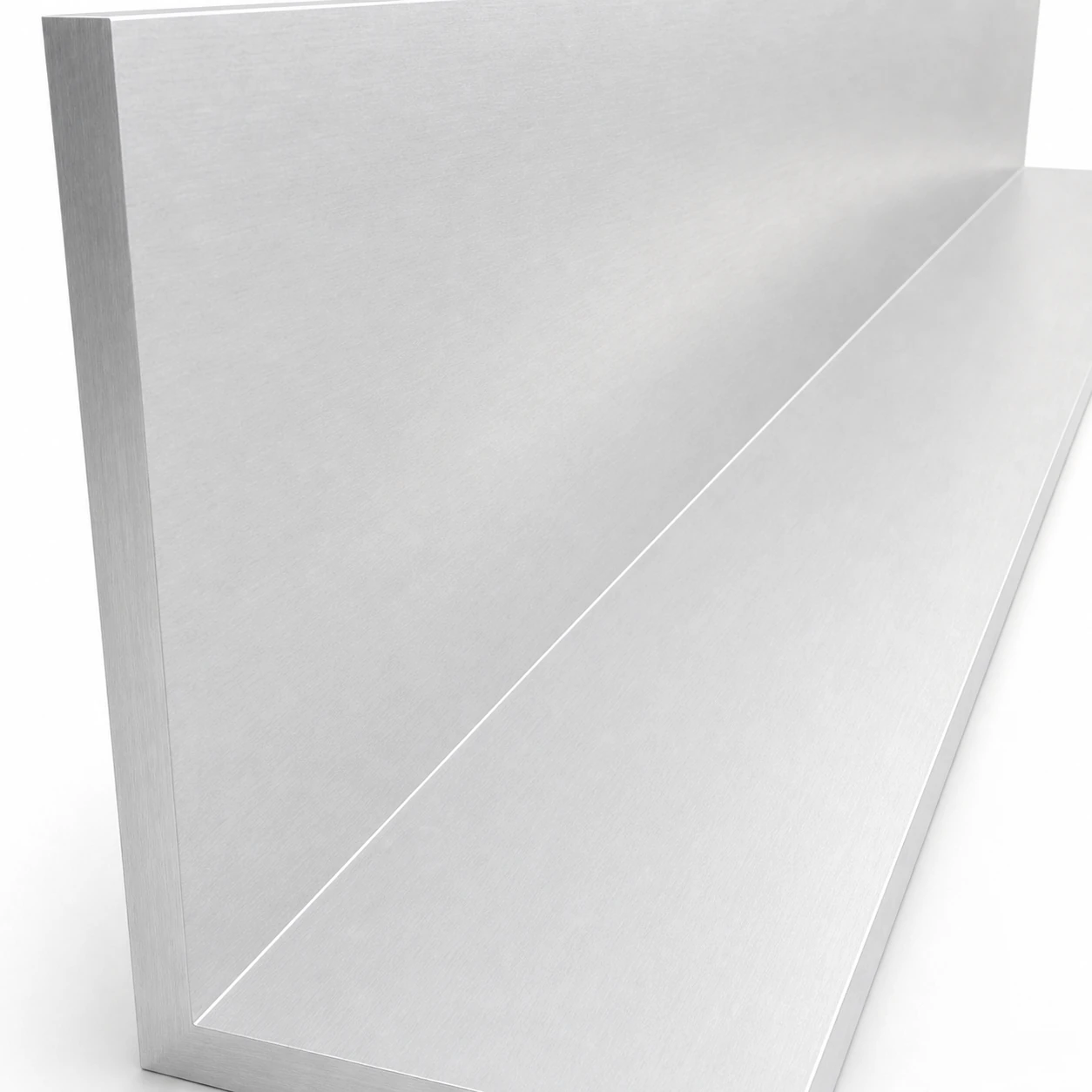

Unequal leg aluminium angle 150×100×10 mm is a robust L-type profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). This two-metre section with legs of 150 mm and 100 mm combines high rigidity with low self-weight, making it a versatile structural element for photovoltaic installations, support frames, bracketing structures, and finishing work.
The EN AW-6060 aluminium alloy in the T64 temper offers excellent machinability — the profile can be easily cut, drilled, and tapped on site without specialist equipment. Aluminium is inherently corrosion resistant, making the angle suitable for both indoor and outdoor applications. The mill finish (non-anodised) surface allows further processing — anodising, powder coating, or leaving untreated in low-aggression environments.

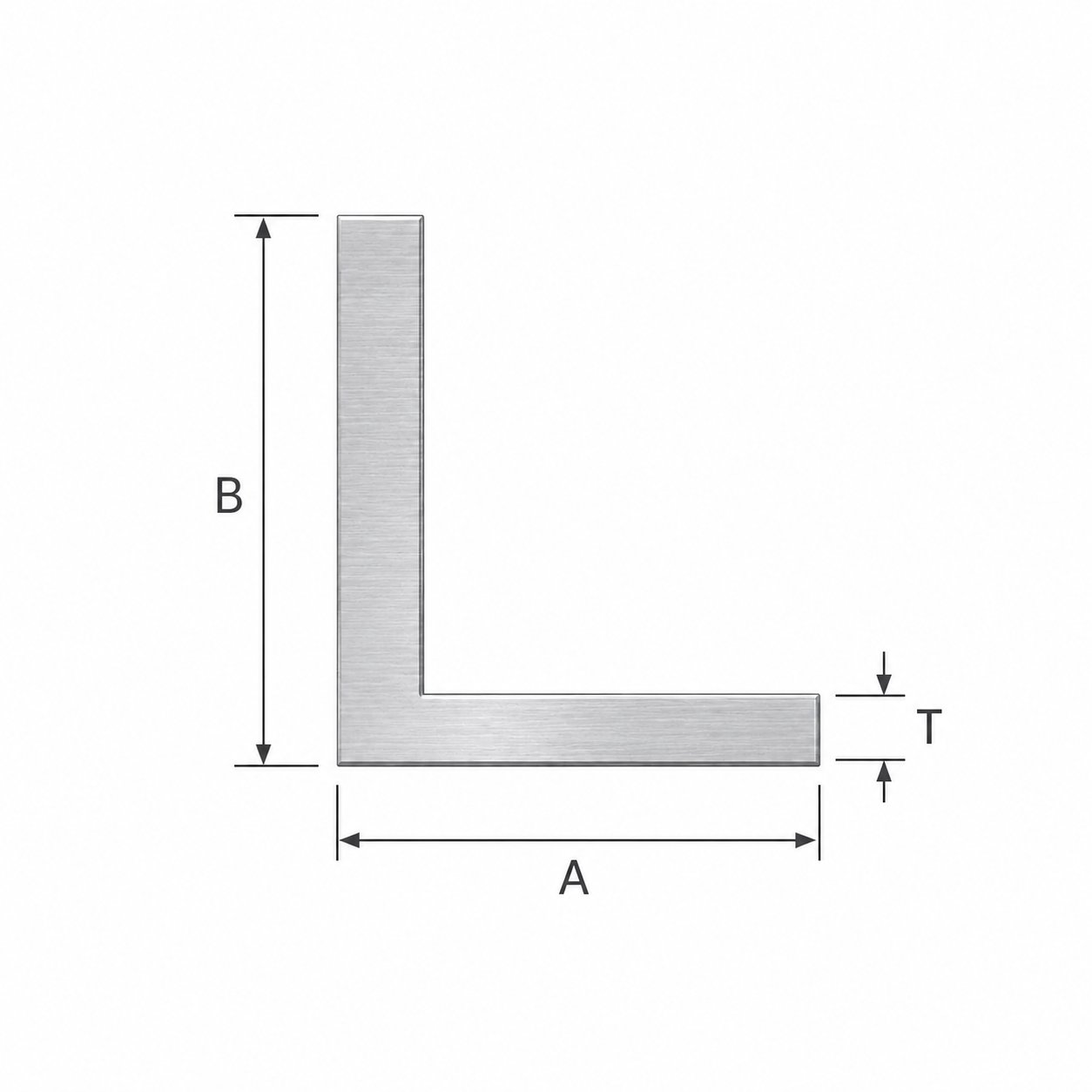

Dimensions and Technical Specification
- Section type: unequal leg angle (L-profile)
- Leg A (longer): 150 mm
- Leg B (shorter): 100 mm
- Wall thickness T: 10 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: mill finish (non-anodised)
- Weight per 2 m section: 13.20 kg (approx. 6.6 kg/m)
Applications
The unequal legs of 150×100 mm with a wall thickness of 10 mm allow significant loads to be carried whilst maintaining a favourable strength-to-weight ratio. The profile is suitable as a structural support element for PV installations, a reinforcing frame, an angle connector, a bracket, or an edge finish. Thanks to the substantial wall thickness, the angle is ideal for bolted and welded connections without risk of deformation.
