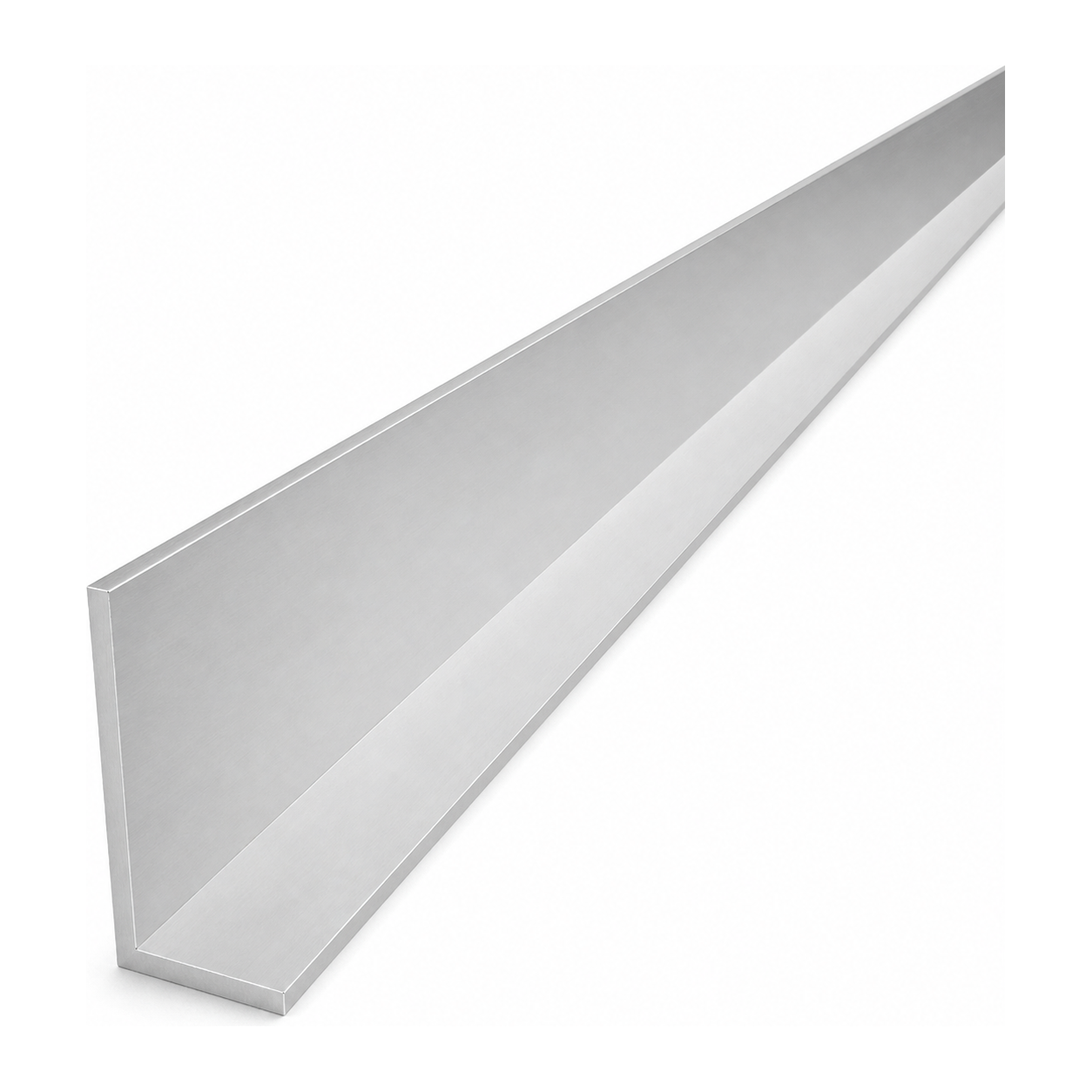

Unequal Angle Aluminium 50×25×3 mm – L Profile, Length 2000 mm
Leave feedback on the product
Unequal aluminium angle, L profile, alloy EN AW-6060 T6/T66. Leg A: 50 mm, leg B: 25 mm, wall thickness: 3 mm, length: 2000 mm. Weight: 0.59 kg/m. Raw, non-anodised surface.
Product code: 001-705
Product features
[PIM] katowniki-nierownoramienne #148
- Material Aluminium
- Height [mm] 50
- Wall Thickness [mm] 3
- Length [mm] 2000
Description
Unequal Angle Aluminium 50×25×3 mm – L Profile, Length 2000 mm
Unequal aluminium angle 50×25×3 mm is a versatile L-type profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its unequal legs – the longer 50 mm and the shorter 25 mm – it is ideally suited wherever a rigid yet lightweight corner construction with an asymmetric cross-section is required. The profile in its raw state (non-anodised) is ready for further processing — anodising, powder coating, or direct installation in locations not exposed to atmospheric conditions.
6060 series aluminium in the T6/T66 temper combines good machinability with high corrosion resistance, allowing the angle to be used both inside buildings and in sheltered external structures. The low weight — just 0.59 kg/m — greatly facilitates transport and installation, particularly with longer sections and work at height.
Applications
- Reinforcement and bracing of aluminium frames and structures
- Finishing of edges, corners, and joints between components
- Sub-structure elements for photovoltaic and ventilation installations
- Frames, guards, and equipment enclosures
- Repair work and prototyping
Technical Specification
- Cross-section type: unequal angle (L profile)
- Leg A (longer): 50 mm
- Leg B (shorter): 25 mm
- Wall thickness T: 3 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight (2 m): 1.18 kg
- Unit weight: 0.59 kg/m
