Unequal Angle Aluminium 20×10×2 mm – L-Section Profile, Length 2000 mm
0
Description

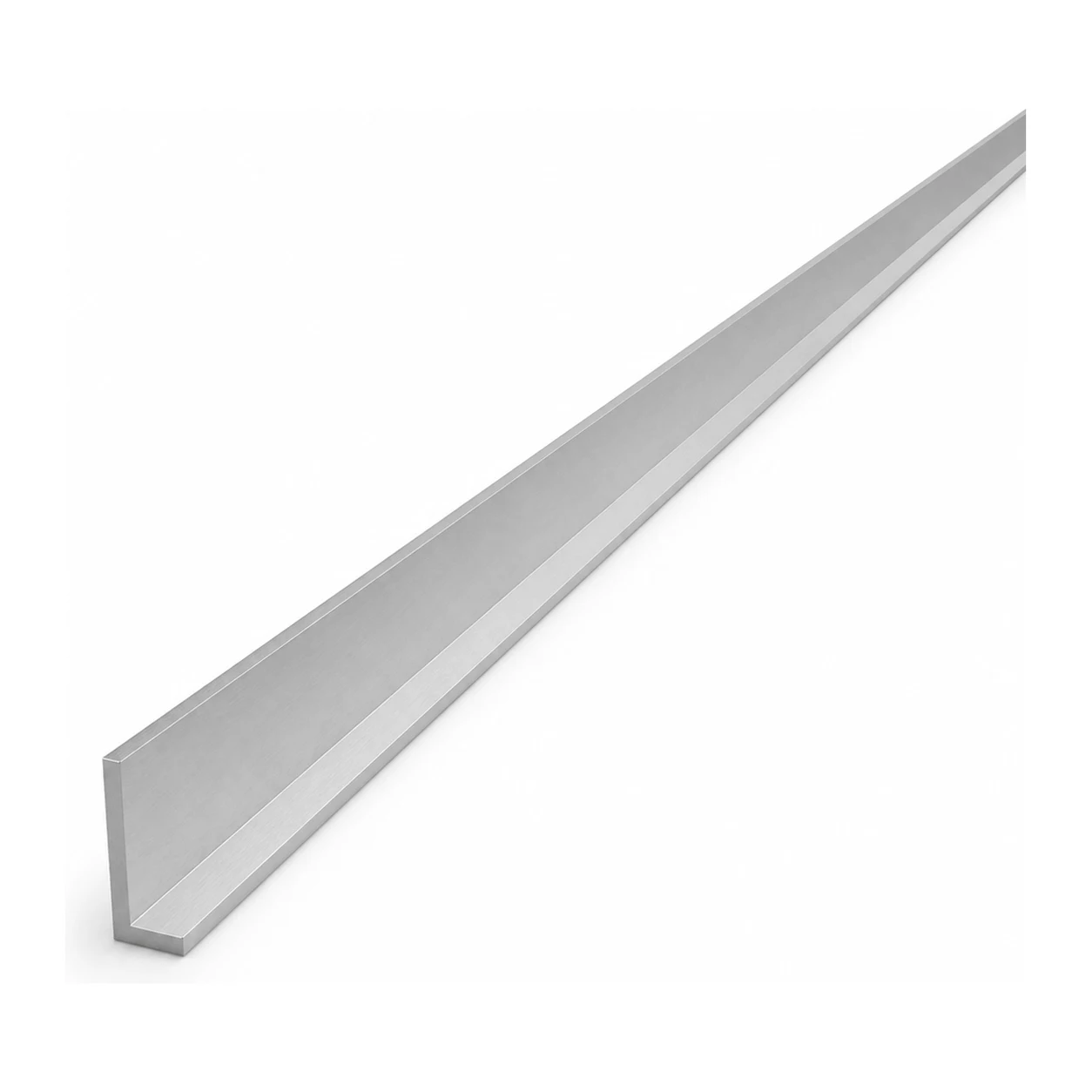

Unequal Angle Aluminium 20×10×2 mm – L-Section Profile, Length 2000 mm
The unequal aluminium angle 20×10×2 mm is a versatile L-section profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), with a length of 2000 mm. Thanks to its unequal legs (20 mm × 10 mm), it is suitable wherever asymmetric reinforcement or edge finishing is required — in support structures, frames, enclosures, as well as for minor repairs and finishing work.
Aluminium from the 6060 series in the T64 temper combines good rigidity with low weight — just 0.30 kg per 2 m length (linear weight 0.151 kg/m). The material is naturally corrosion resistant, making it suitable for both indoor and outdoor use. The mill finish (non-anodised) surface allows for further processing — anodising, powder coating, or leaving without additional protection.
Dimensions and Technical Specification
- Section type: unequal angle (L-section)
- Leg A (longer): 20 mm
- Leg B (shorter): 10 mm
- Wall thickness T: 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: mill finish (non-anodised)
- Weight per 2 m length: 0.30 kg
- Linear weight: 0.151 kg/m
- Material density: 2.70 g/cm³
Applications
The 20×10 mm unequal angle is used primarily as a structural and finishing element. It is employed in the construction of lightweight frames and subframes, reinforcing edges of boards and panels, joining components at 90°, as well as a protective trim strip in technical installations. The asymmetric profile allows one leg to be discreetly concealed whilst still providing a sufficient mounting surface on the longer leg.
