Unequal Aluminium Angle 60×40×2 mm – L Profile, Length 2000 mm
Leave feedback on the product
Unequal aluminium angle EN AW-6060 T6/T66, L profile. Leg A: 60 mm, leg B: 40 mm, wall thickness: 2 mm, length: 2000 mm. Mill finish. Weight: approx. 1.06 kg (0.529 kg/m).
Product code: 001-711
Product features
[PIM] katowniki-nierownoramienne #148
- Material Aluminium
- Height [mm] 60
- Wall Thickness [mm] 2
- Length [mm] 2000
Description

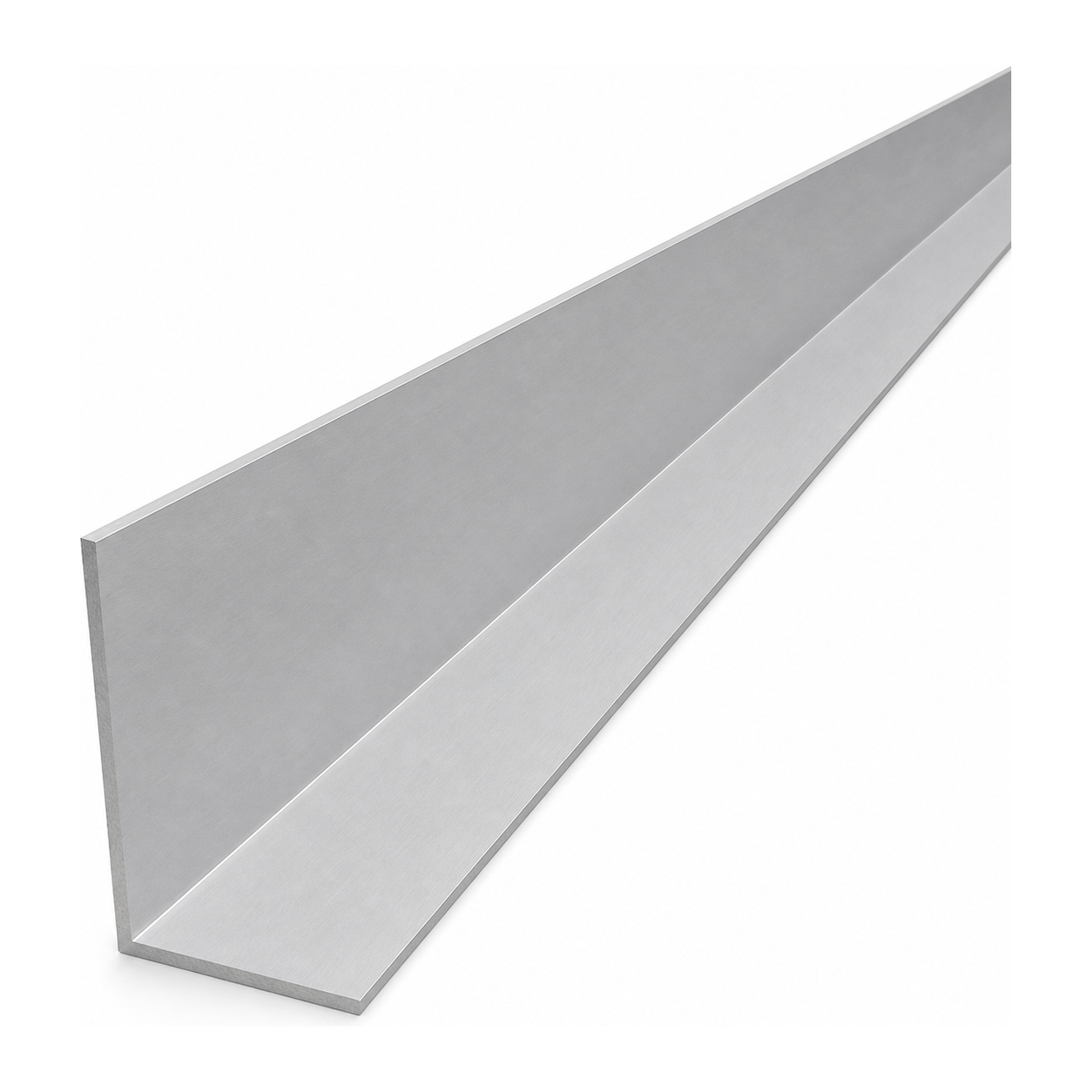

Unequal Aluminium Angle 60×40×2 mm – L Profile, Length 2000 mm
Unequal aluminium angle 60×40×2 mm is a versatile L-profile designed for support structures, mounting frames, finishing and repairs. Made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), it combines low weight with high rigidity and natural corrosion resistance — the ideal combination for professional installers seeking a lightweight yet durable structural material.
Benefits for installation teams
The unequal legs (60 mm and 40 mm) allow the profile to be matched to components of different widths — the shorter leg serves, for example, as a fixing face, whilst the longer leg acts as a support or guide. The wall thickness of 2 mm provides an optimal strength-to-weight ratio, meaning a 2000 mm length weighs just approx. 1.06 kg (linear weight 0.529 kg/m). The profile is easy to cut, drill and join using standard workshop tools.
The mill finish (non-anodised) surface allows for further processing — anodising, powder coating or painting — depending on the requirements of the specific project.
Technical specification
- Profile type: unequal angle (L profile)
- Leg A (longer): 60 mm
- Leg B (shorter): 40 mm
- Wall thickness T: 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: mill finish (non-anodised)
- Weight per 2 m length: approx. 1.06 kg
- Linear weight: 0.529 kg/m
Applications
- Support structures and mounting frames
- Reinforcements, stiffeners and connectors in aluminium profiles
- Edge finishing and corner protection
- Repair and adaptation components in technical installations
