Unequal Aluminium Angle 50×30×4 mm – L-Profile, Length 2000 mm
0
Description

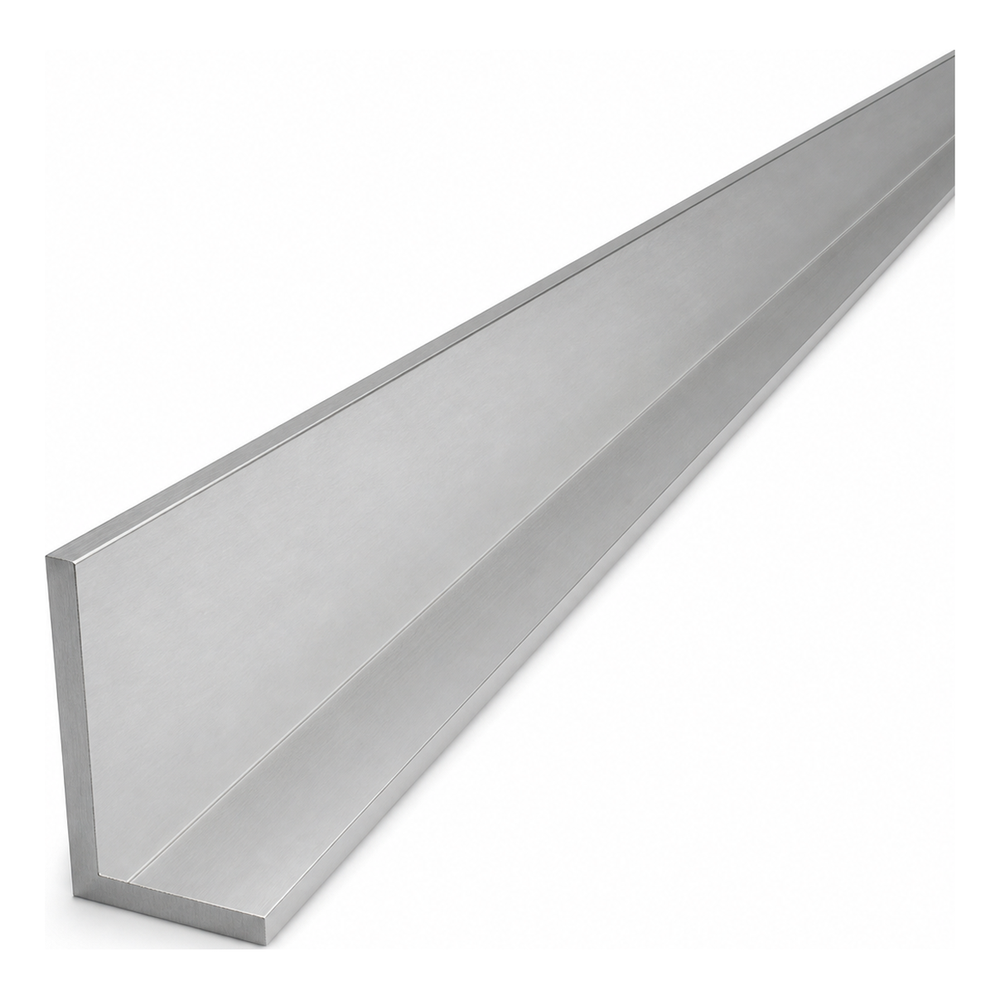

Unequal Aluminium Angle 50×30×4 mm – L-Profile, Length 2000 mm
The unequal aluminium angle 50×30×4 mm is a versatile L-profile designed for building support structures, mounting frames, edge trims, and repairs. Made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), it combines low weight with high rigidity and natural corrosion resistance — making it a practical material for everyday installer work.
Thanks to its unequal legs (50 mm × 30 mm), the profile allows for efficient joint design where one leg acts as the load-bearing element and the other as the fixing or finishing element. The raw, non-anodised aluminium surface enables further processing: anodising, powder coating, or leaving in its natural state.

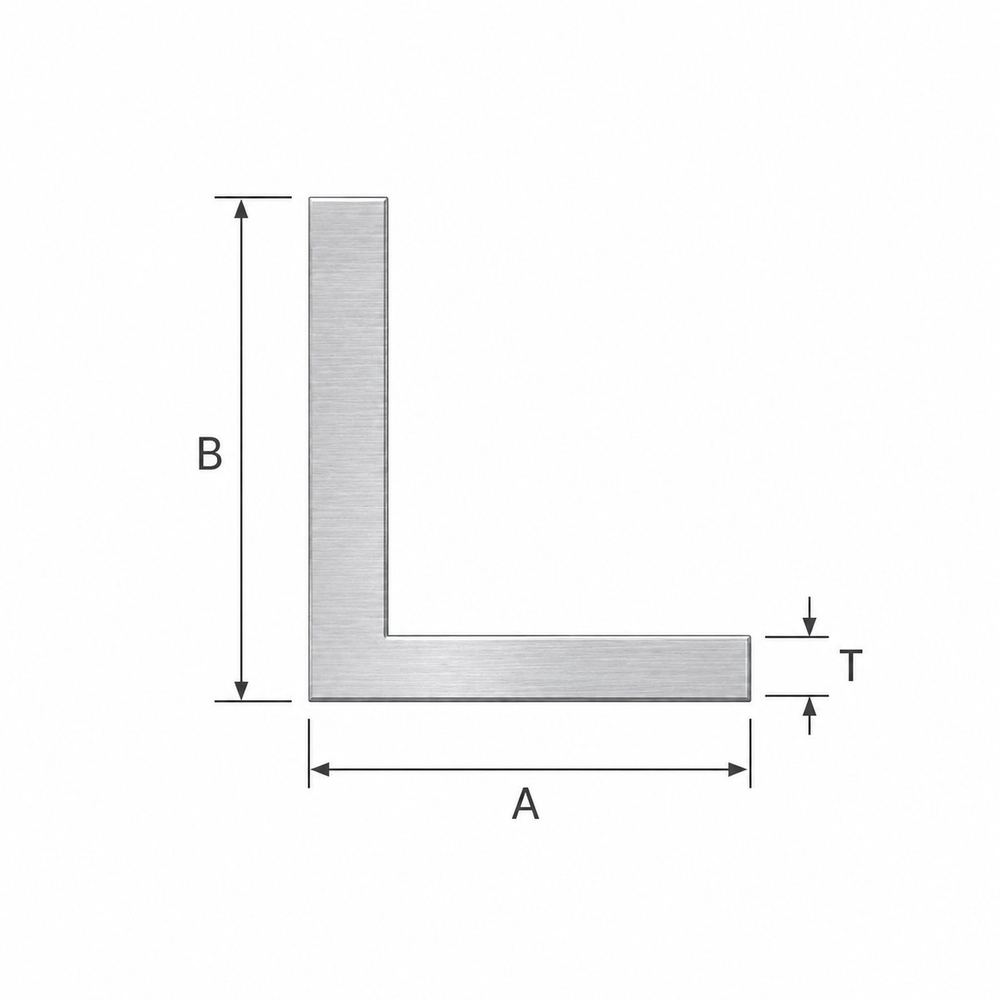

Cross-section Dimensions and Parameters
- Section type: unequal angle (L-profile)
- Leg A (longer): 50 mm
- Leg B (shorter): 30 mm
- Wall thickness T: 4 mm
- Length: 2000 mm
Material and Properties
- Alloy: EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Profile weight (2 m): 1.66 kg (approx. 0.83 kg/m)
- Corrosion resistance: high — natural aluminium oxide layer
Applications
The angle profile is suitable wherever a lightweight and sturdy angular connection is required: support structures for installations, equipment frames, enclosures, edge reinforcements for boards and panels, finishing elements, and repairs. The unequal legs allow the profile to be adapted to asymmetric structural joints, reducing the number of additional connectors and adaptors.
