Unequal Aluminium Angle 30×20×2 mm – L Profile, Length 2000 mm
0
Description

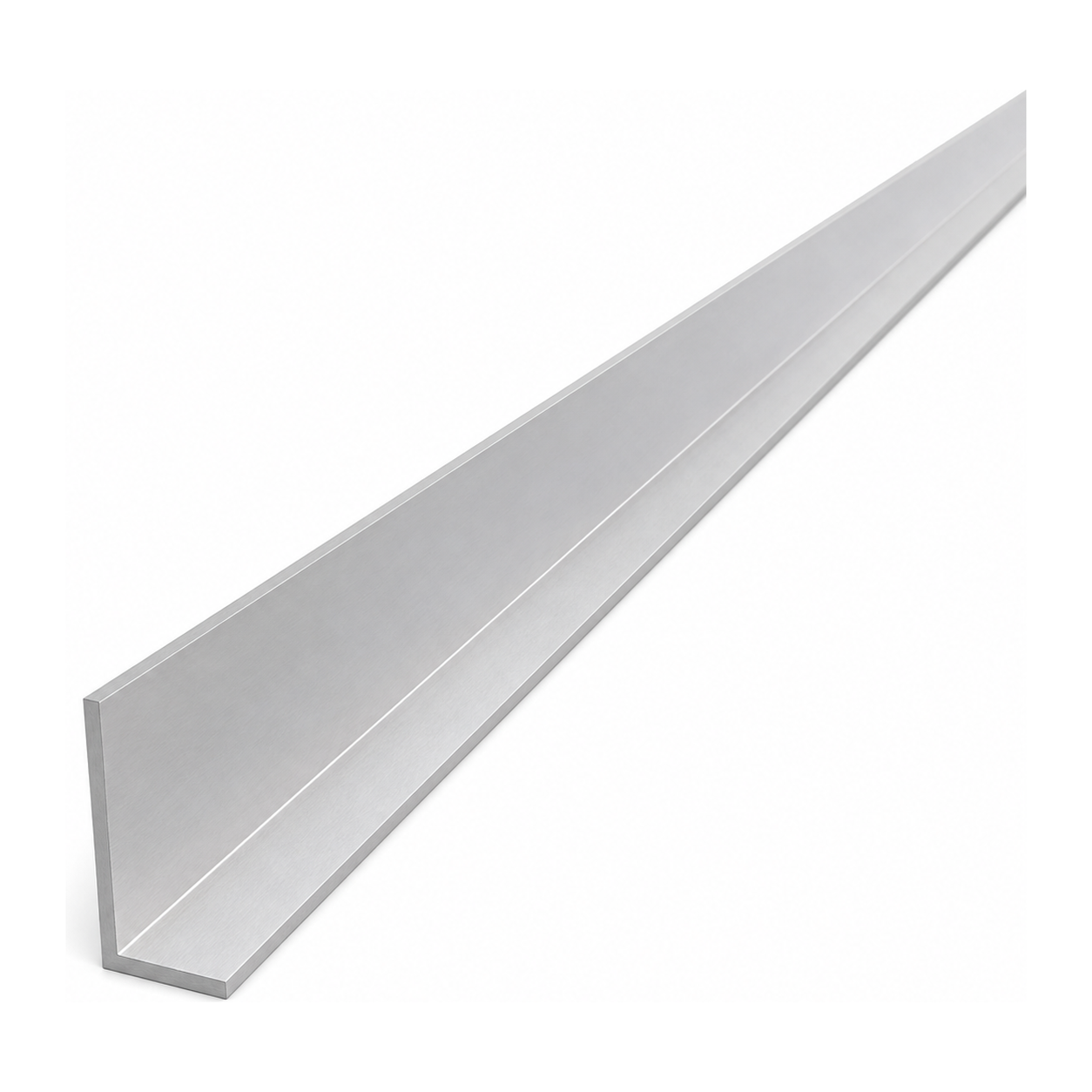

Unequal Aluminium Angle 30×20×2 mm – L Profile, Length 2000 mm
Unequal aluminium angle 30×20×2 mm is a versatile L-type profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Its unequal-leg geometry allows flexible design of joints, reinforcements and frames, while the low self-weight (0.54 kg per 2 m length) makes handling and installation straightforward. The raw, non-anodised aluminium surface provides natural corrosion resistance and is ready for further processing — powder coating, anodising, or left in its natural state.
The profile is well suited for support structures, trims, protective frames, and wherever a lightweight yet rigid angular connection is required. The 2000 mm length is convenient for cutting to size directly on site.
Technical Specification
- Section type: unequal angle (L profile)
- Leg A (longer): 30 mm
- Leg B (shorter): 20 mm
- Wall thickness T: 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m length: 0.54 kg (0.27 kg/m)
- Colour: natural silver (raw aluminium)
Applications
- Support structures and mounting frames
- Edge reinforcements and corner guards
- Trim for sheet, plate and panel joints
- Repair components and workshop tasks
- Sub-structures for photovoltaic and electrical installations
The EN AW-6060 alloy in the T64 temper combines good mechanical strength with ease of fabrication — the profile can be cut, drilled and welded with standard tools. The unequal-leg ratio (30/20 mm) allows optimum adaptation to components of varying thickness and geometry.
