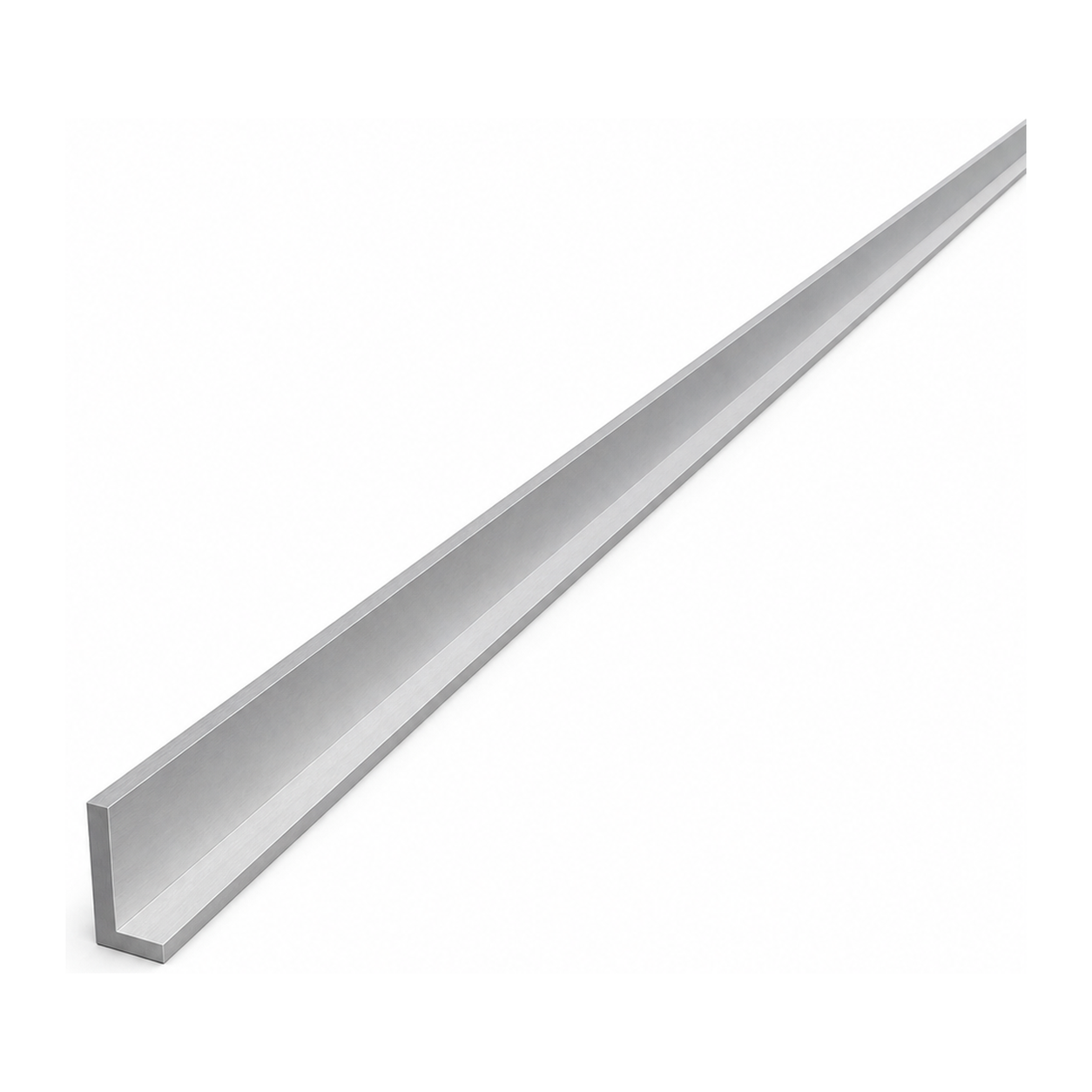

Unequal Aluminium Angle 15×10×2 mm – L-Profile, Length 2000 mm
0
Description
Unequal Aluminium Angle 15×10×2 mm – L-Profile, Length 2000 mm
Unequal aluminium angle 15×10×2 mm is a lightweight and rigid L-type profile intended for structural, finishing, and repair applications. Made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), it offers high corrosion resistance and an excellent strength-to-weight ratio — at a length of 2 metres it weighs just 0.25 kg. The unequal legs (15 mm and 10 mm) allow precise fitting of the profile in locations where different embedment depths or asymmetric element connections are required.
The raw, non-anodised surface allows for further processing — anodising, powder coating, or painting — depending on project requirements. The profile is ideally suited as a reinforcing element in frames, enclosures, cable covers, and small installation structures.
Technical Specification
- Cross-section type: unequal angle (L-profile)
- Leg A (longer): 15 mm
- Leg B (shorter): 10 mm
- Wall thickness T: 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight: 0.25 kg (0.124 kg/m)
Applications
- Structural elements for frames and enclosures
- Edge finishing for panels and boards
- Corner reinforcement in technical installations
- Minor repairs and prototyping
- Cable covers and guides
Technical data
| Material | Aluminium |
| Height [mm] | 15 |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
