Unequal Aluminium Angle 100×50×3 mm – L-Profile, Length 2000 mm

Go to Product feedback

Unequal aluminium angle EN AW-6060 T6/T66, L-profile. Leg A: 100 mm, leg B: 50 mm, wall thickness: 3 mm, length: 2000 mm. Weight: 2.47 kg. Mill finish (non-anodised).

Go to full description
with VAT without VAT
Price €28.55
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] katowniki-nierownoramienne #148

  • Material Aluminium
  • Height [mm] 100
  • Wall Thickness [mm] 3
  • Length [mm] 2000

Description

Unequal Aluminium Angle 100×50×3 mm – L-Profile, Length 2000 mm

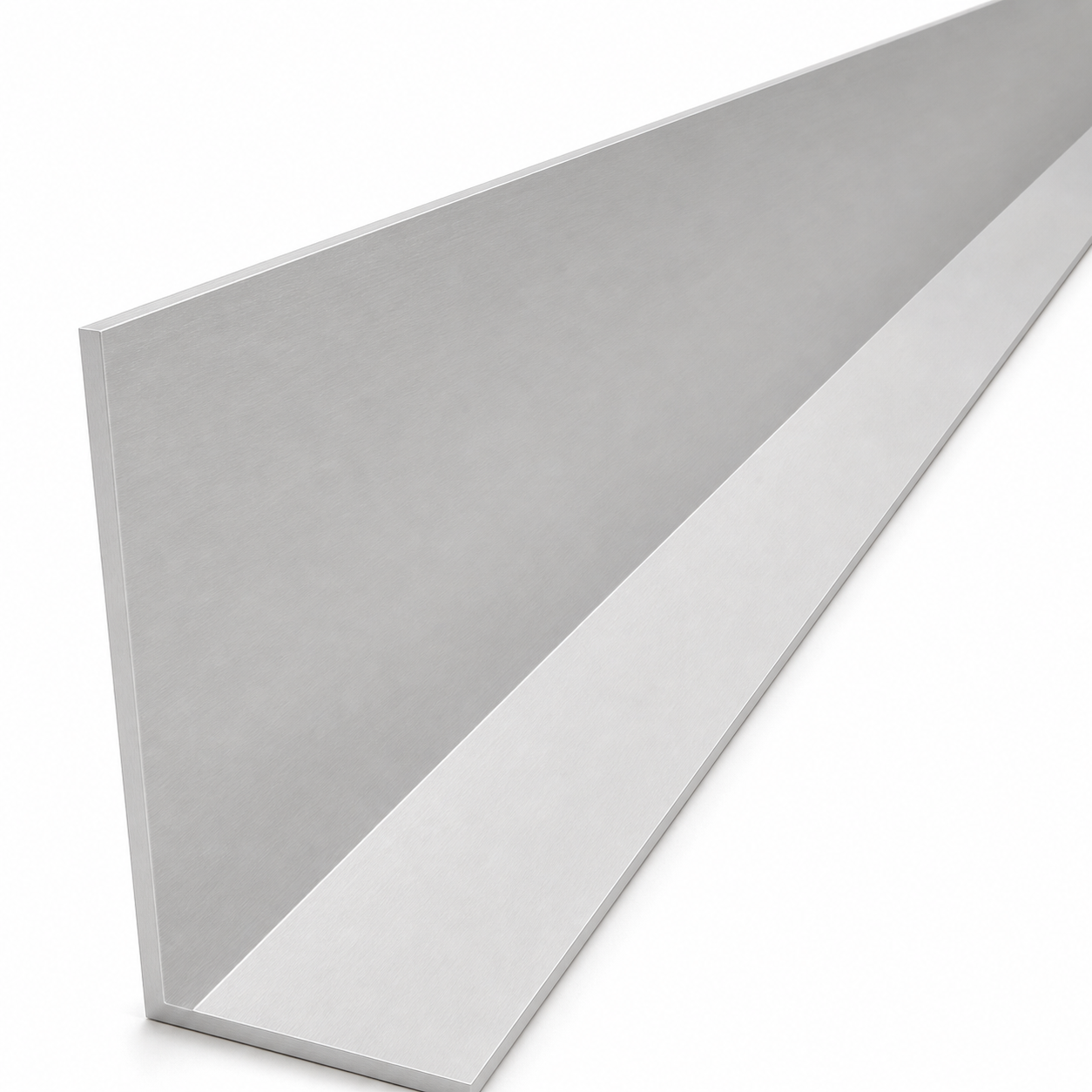

Unequal aluminium angle 100×50×3 mm – perspective view of L-profile
Unequal aluminium angle 100×50×3 mm – perspective view of L-profile

The unequal aluminium angle 100×50×3 mm is a robust L-profile with a length of 2000 mm, manufactured from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to the unequal leg ratio — 100 mm and 50 mm — it offers an optimal stiffness-to-weight ratio, making it an ideal structural component for photovoltaic installations, load-bearing frames, façade finishing, and repairs.

The profile surface is mill finish (non-anodised), giving full freedom for further processing — anodising, powder coating, or leaving in its natural state. The 6060 aluminium series is characterised by excellent corrosion resistance, outstanding weldability, and ease of machining, making it one of the most widely used alloys in aluminium structures.

Technical Specification

Dimensional drawing of aluminium angle cross-section – leg A, leg B, wall thickness T
Dimensional drawing of aluminium angle cross-section – leg A, leg B, wall thickness T
  • Cross-section type: unequal angle (L-profile)
  • Leg A (longer): 100 mm
  • Leg B (shorter): 50 mm
  • Wall thickness T: 3 mm
  • Length: 2000 mm
  • Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
  • Surface: mill finish (non-anodised)
  • Weight (2 m): 2.47 kg (linear density: 1.234 kg/m)

Applications

The unequal aluminium angle is suitable wherever a lightweight and rigid structural reinforcement is required — from PV substructure frames and façade finishing elements to repairs and modifications of existing aluminium structures. The unequal legs allow for the design of connections with varied geometry, where one leg serves a load-bearing function and the other a fixing function.
