Trolley pack 80 (8-roller. nylon rollers) KIT for sliding gates with accessories

Key benefits of the kit

• Load capacity up to 700 kg — reliable performance even with very heavy industrial gates
• 8 nylon rollers (including two horizontal) — quiet and smooth gate operation under heavy load
• Swivel trolley design — automatically adjusts to the gate's travel path, minimising stress and extending the service life of components
• Height adjustment — built-in adjustment bolts allow precise alignment of the trolley to the gate's parameters
• Hot-dip galvanised finish — effective corrosion protection in variable weather conditions
• Complete kit with accessories — quick installation with no need to purchase additional components

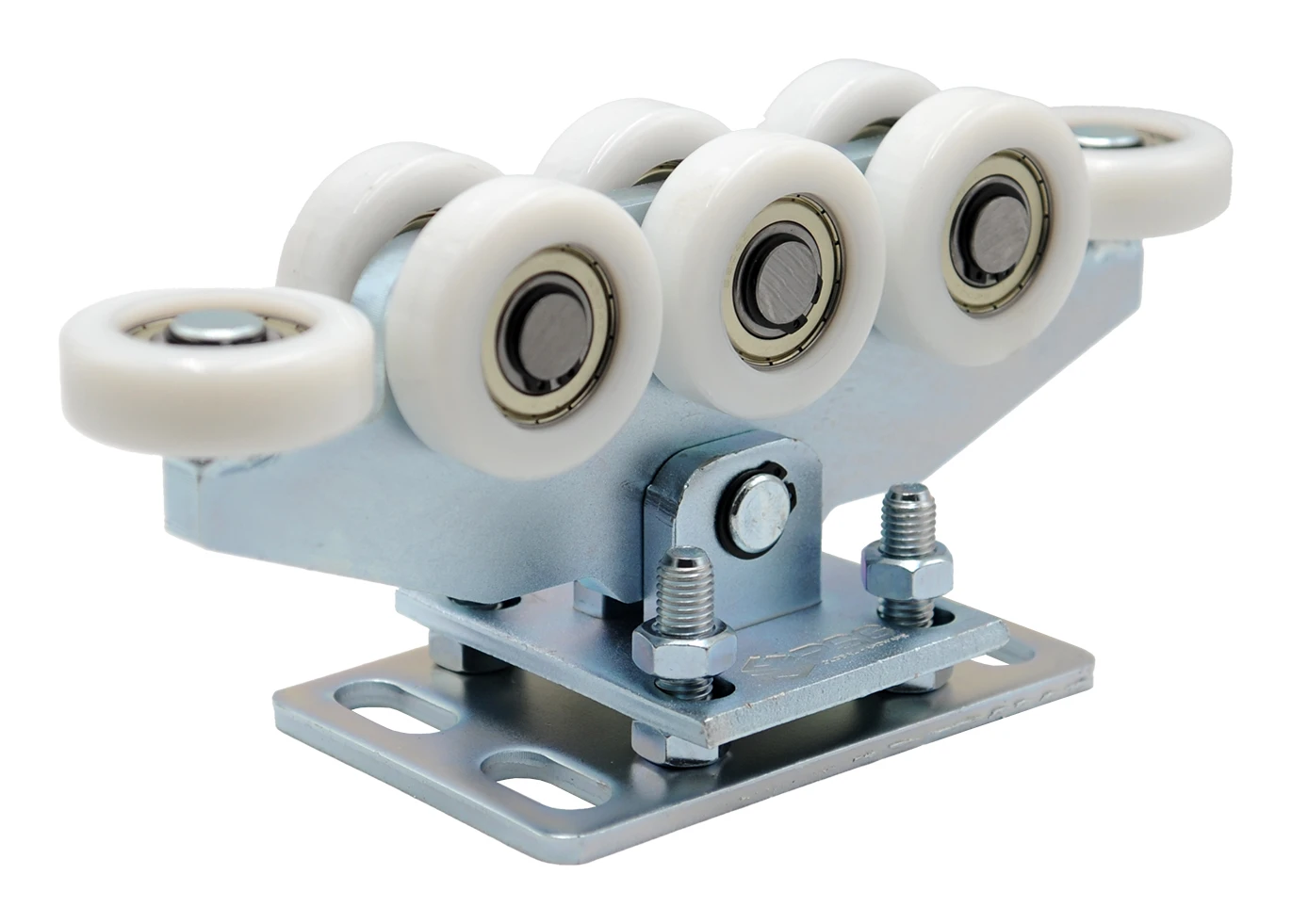

Swivel design of the running trolley

Each trolley is fitted with a pivot pin connecting the body to the mounting base, allowing the mechanism to move freely in line with the gate's travel path. The swivel suspension reduces stress generated during operation — particularly under heavy loads and intensive use. This solution significantly extends the service life of the trolleys, rollers and guide track. The nylon rollers ensure quiet and smooth operation, while two additional horizontal rollers provide lateral stability, eliminating play and vibration even during rapid gate movement.

Accessories included in the kit

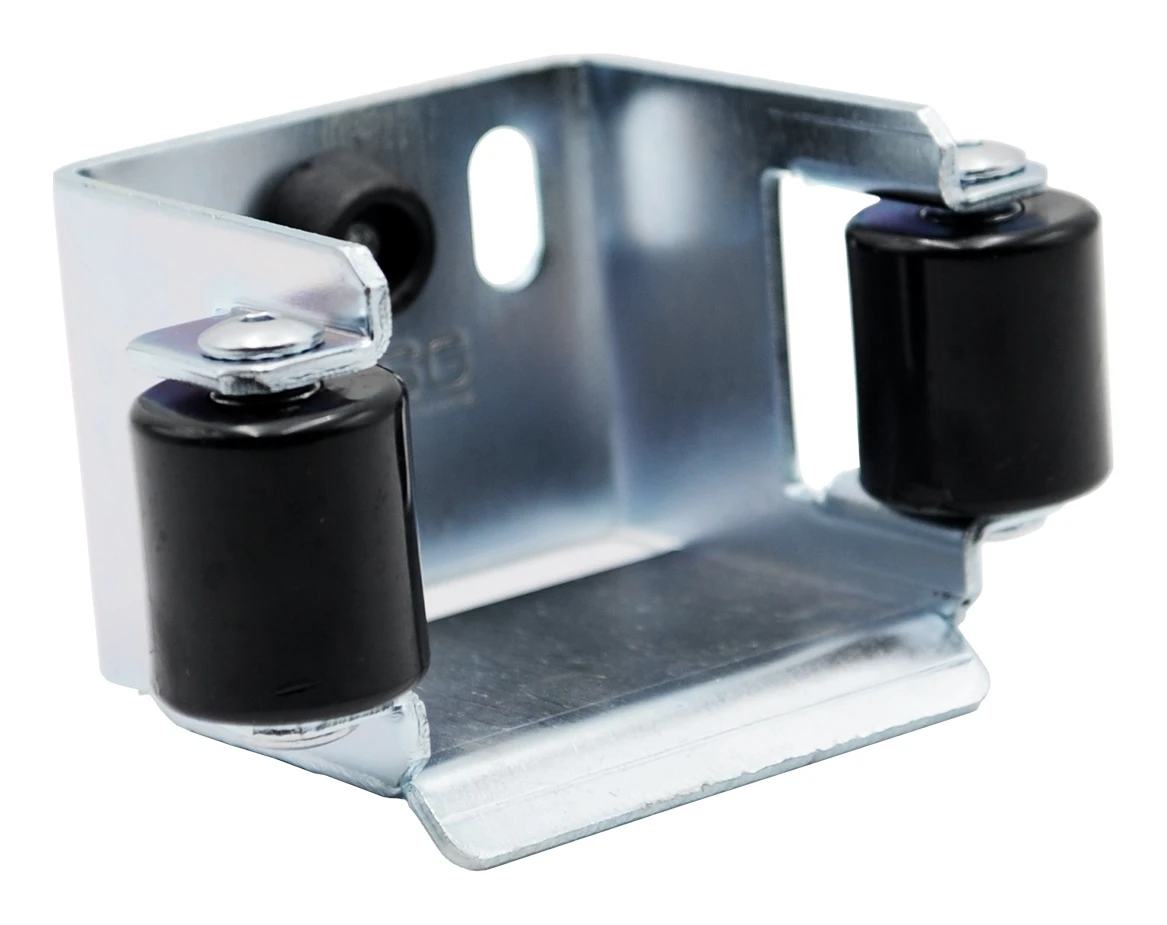

The catch roller bracket stabilises the gate when closed and distributes its weight across a greater number of components, significantly extending the service life of the running trolleys. It is fitted with two plastic rollers that guide the gate — the width between the rollers is 88 mm. The bracket is designed for an 80 × 80 mm track, with a mounting hole spacing of 70 mm and an adjustment slot measuring 25 × 10 mm.

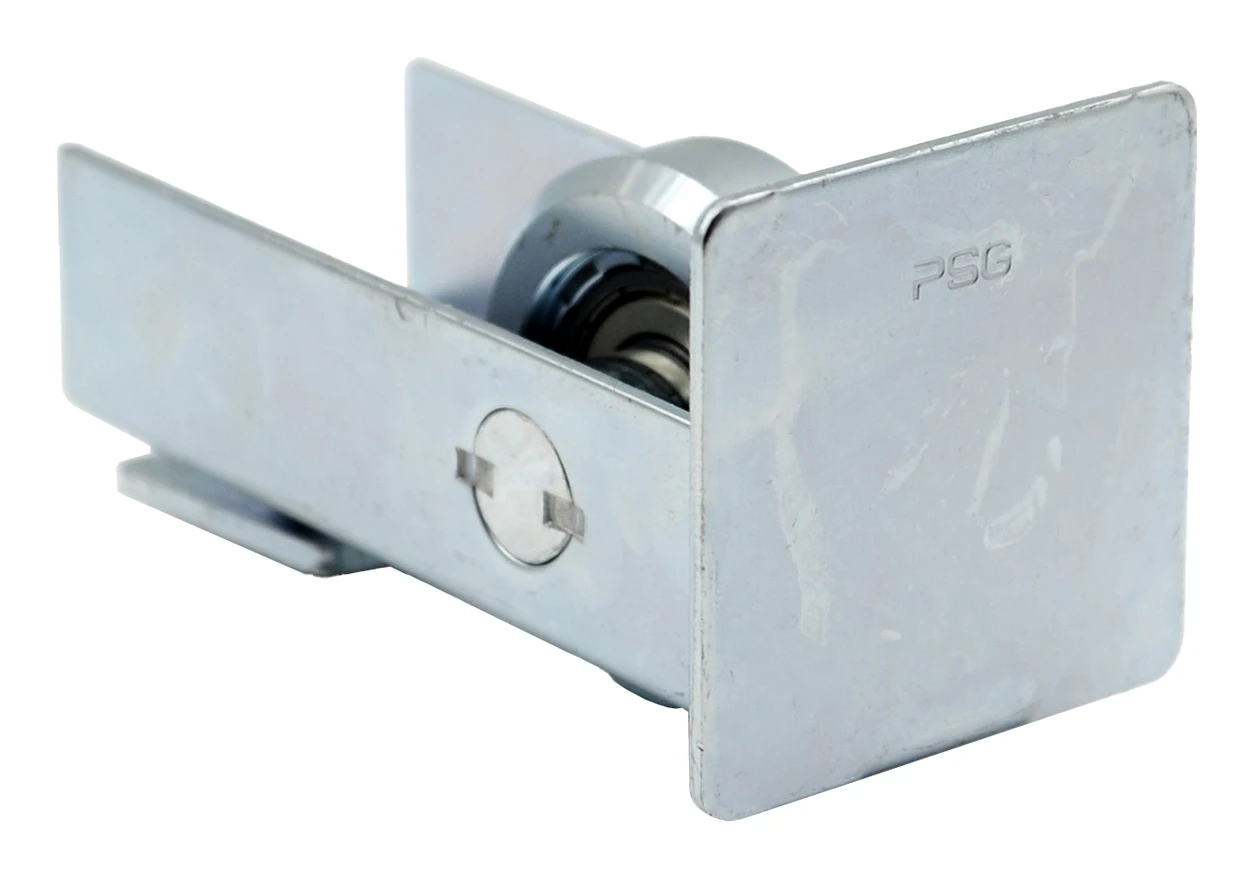

The guide roller with end stop is a steel, galvanised component mounted at the beginning of the sliding gate track. The roller engages with the catch roller bracket fixed to the gate post, distributing the gate's weight across additional support points and ensuring stability when closed. Designed for an 80 × 80 × 5 mm track, supplied complete with mounting bolts.

Technical specification

• Type: 80 trolley kit
• Application: self-supporting sliding gates
• Roller type: nylon
• Number of rollers: 8 (including 2 horizontal)
• Compatible track: 80 × 80 × 5 mm
• Maximum trolley load: 700 kg
• Corrosion protection: galvanised finish
• Height adjustment: yes (adjustment bolts)
• Design: swivel (self-adjusting)
• Kit weight: 19 kg
• Packaging volume: 16,524 cm³

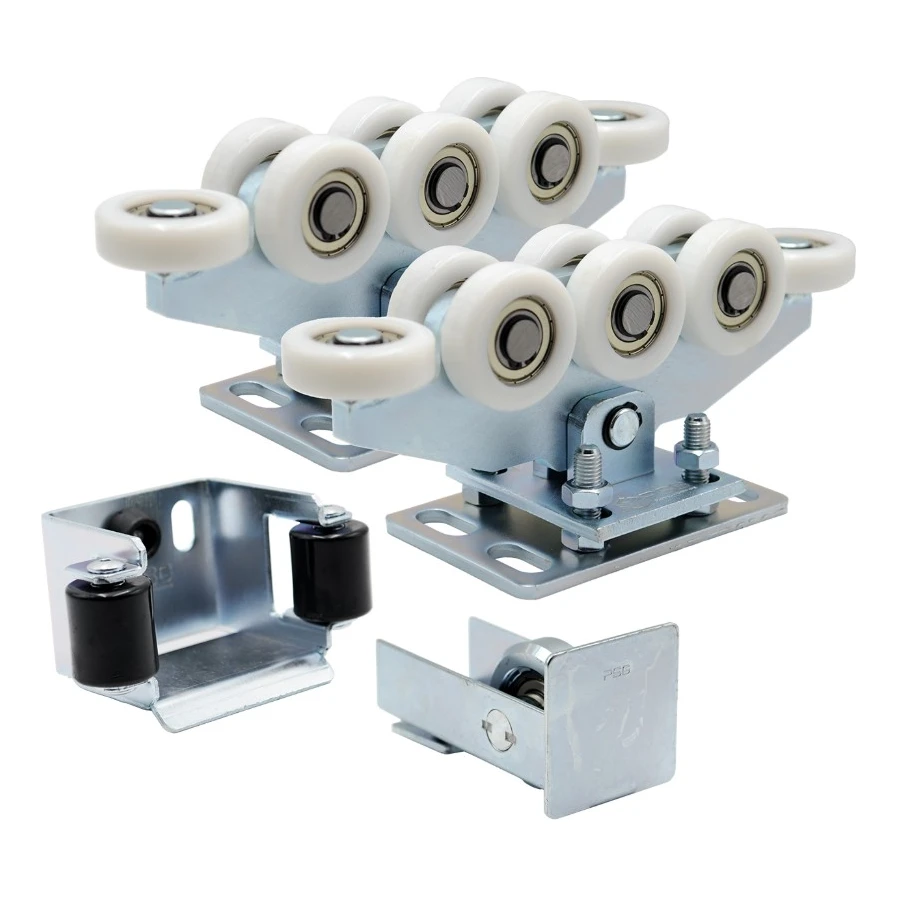

Kit contents

• 8-roller running trolleys with nylon rollers — 2 pcs.
• Catch roller bracket (width between rollers 88 mm, hole spacing 70 mm) — 1 pc.
• Guide roller with end stop for 80 × 80 × 5 mm track, with mounting bolts — 1 pc.
