Trolley Pack 80 (6-wheel, nylon wheels) KIT for sliding gates with accessories

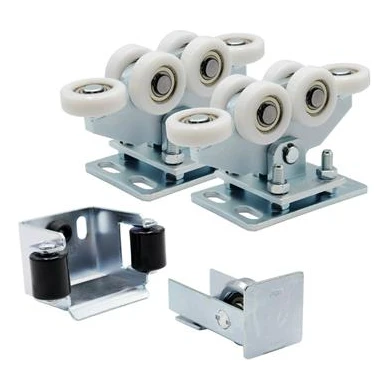

Kit contents:

• 2× 6-wheel running trolley with nylon rollers (including 2 horizontal stabilising rollers)
• 1× catch post bracket with two plastic guide rollers
• 1× guide roller with end stop including mounting screws

All components in the kit are galvanised, providing effective corrosion protection and reliable performance in variable weather conditions. The kit is compatible with an 80 × 80 × 5 mm track, making it a versatile solution for both residential and industrial applications.

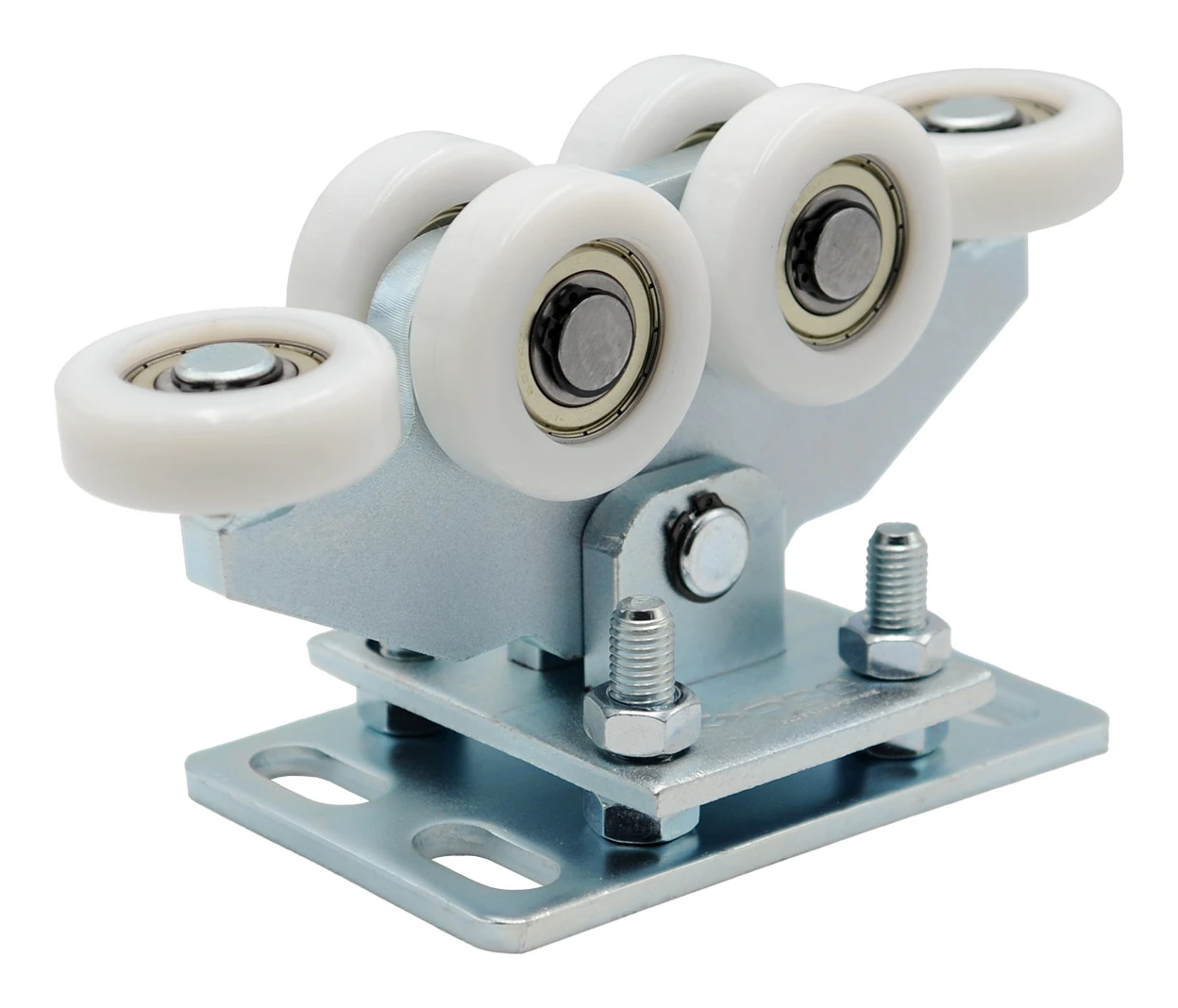

6-Wheel Running Trolley — Quiet and Smooth Gate Operation

At the heart of the kit is a pair of 6-wheel running trolleys with nylon rollers mounted on bearings. Four load-bearing rollers and two horizontal rollers provide excellent stability and precise gate guidance within the track. The pivot construction of the trolley — based on a pin connecting the trolley to the base plate — allows it to self-align with the gate's path of travel. This minimises stress, improves smooth operation, and significantly extends the service life of the entire mechanism. Height adjustment via screws enables precise alignment during installation.

Trolley specifications:

• Trolley type: 80
• Number of rollers: 6 (including 2 horizontal stabilising rollers)
• Roller material: nylon
• Compatible track: 80 × 80 × 5 mm
• Maximum trolley load: 500 kg
• Finish: galvanised
• Height adjustment: yes (via screws)

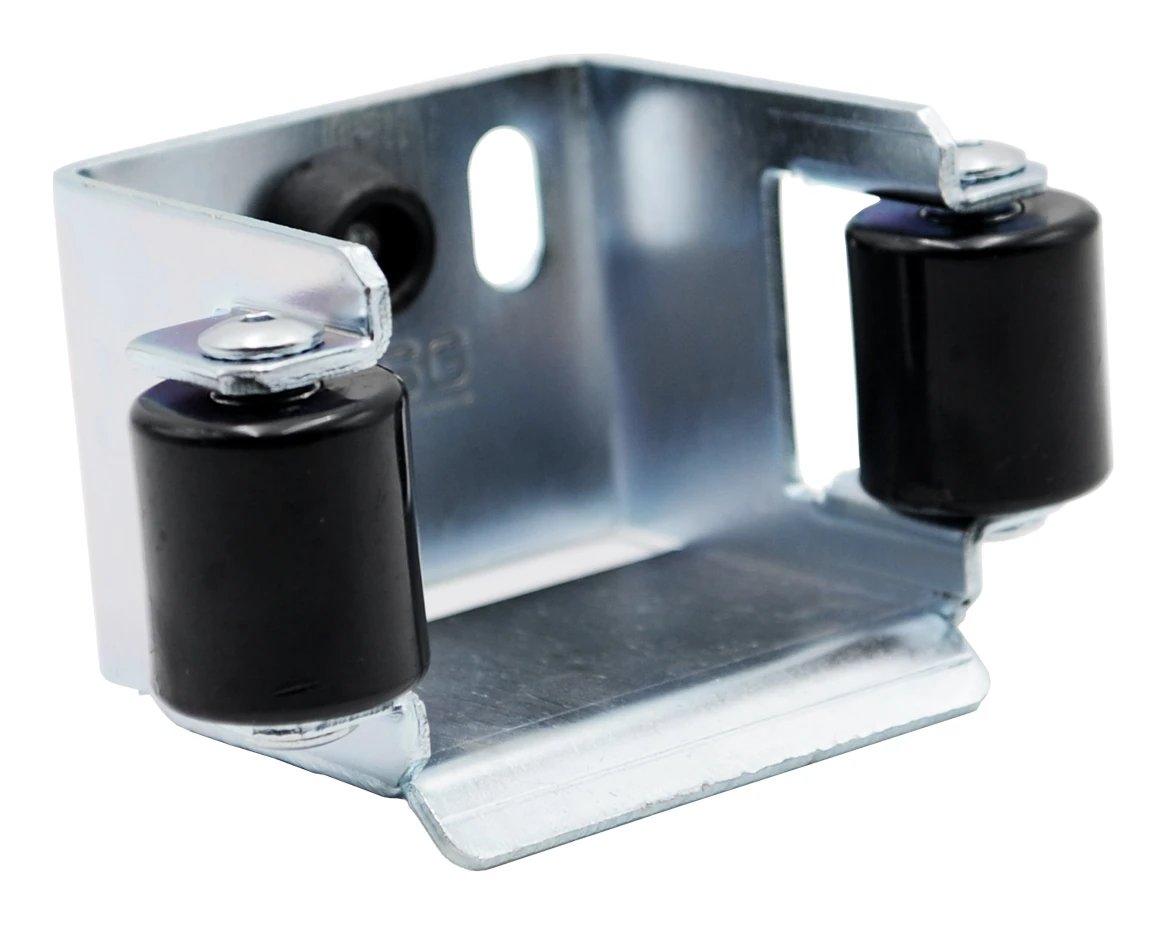

Catch Post Bracket — Gate Stabilisation When Closed

The catch post bracket stabilises the gate when closed and distributes its weight across a greater number of components, which significantly extends the service life of the running trolleys. It is fitted with two plastic guide rollers that smoothly guide the gate track into the bracket.

Catch post bracket specifications:

• Width between rollers: 88 mm
• Compatible track: 80 × 80 mm
• Mounting hole spacing: 70 mm
• Mounting slot dimensions: 25 × 10 mm

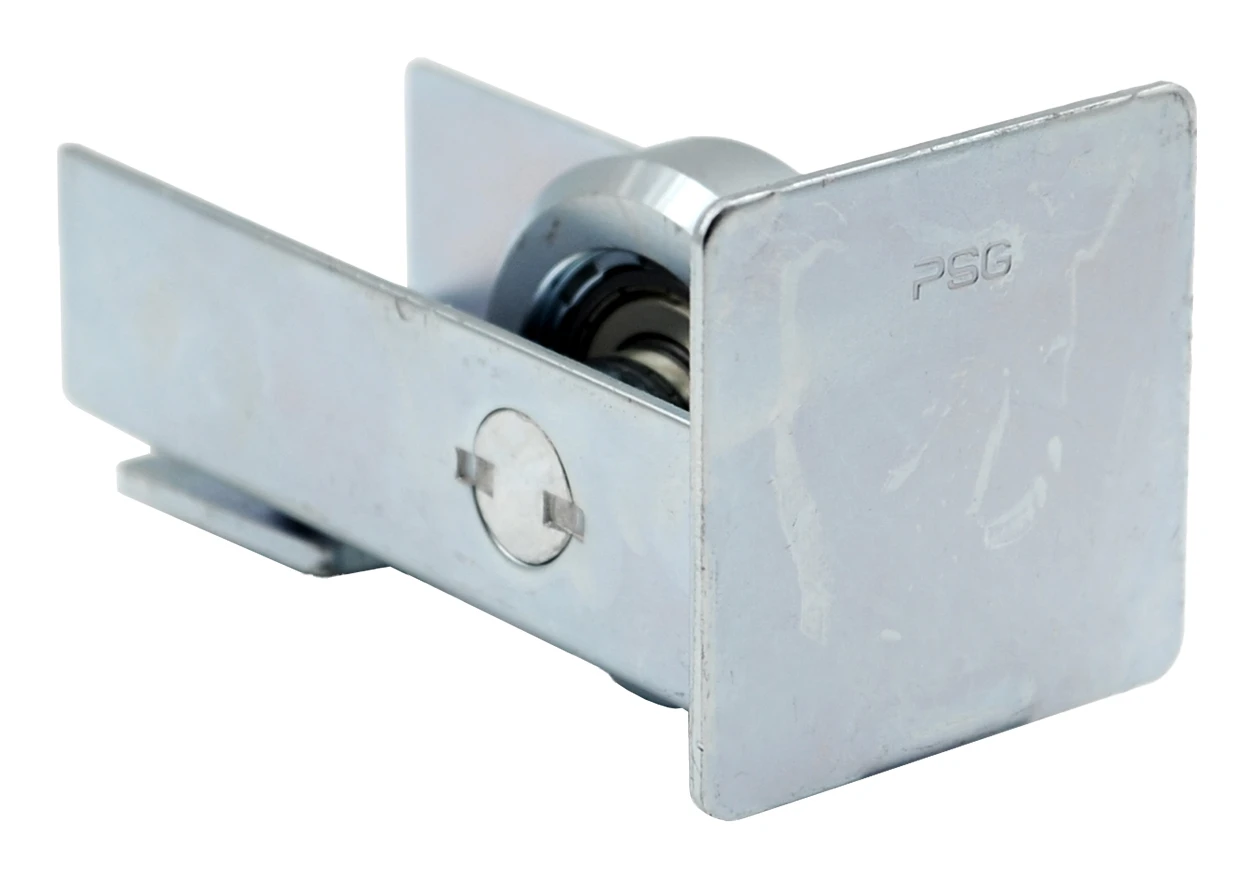

Guide Roller with End Stop — Safe Gate Guidance

A steel component mounted at the leading end of the cantilever sliding gate track. When the gate closes, the roller enters the catch post bracket fixed to the post, which distributes the gate's weight across a greater number of components and effectively stabilises it in the closed position.

Guide roller specifications:

• Compatible track: 80 × 80 × 5 mm
• Finish: galvanised
• Included: mounting screws

Logistics data:

• Kit weight: 16 kg
• Volume: 16,524 cm³
• EAN: 5903313206495
