Trolley Pack 80 (10-roller, nylon rollers) KIT for sliding gate with accessories
Leave feedback on the product
Complete kit for self-supporting sliding gates: 2 x 10-wheel trolleys, approach bracket and approach roller. Load capacity 900 kg, rail 80×80×5 mm, galvanised finish.
Product code: 000-308
Product features
[PIM] wozki #111
- Rail Size 80x80x5
- Product Type Package / KIT with accessories
- Roller Material Nylon
- Number of Rollers [szt.] 10
- Trolley Construction Swivel
- Max. load capacity [kg] 900
- Running System Type Rolling system
Description
PSG Trolley Kit 80 – 10-Roller Set for Cantilever Sliding Gate with Accessories

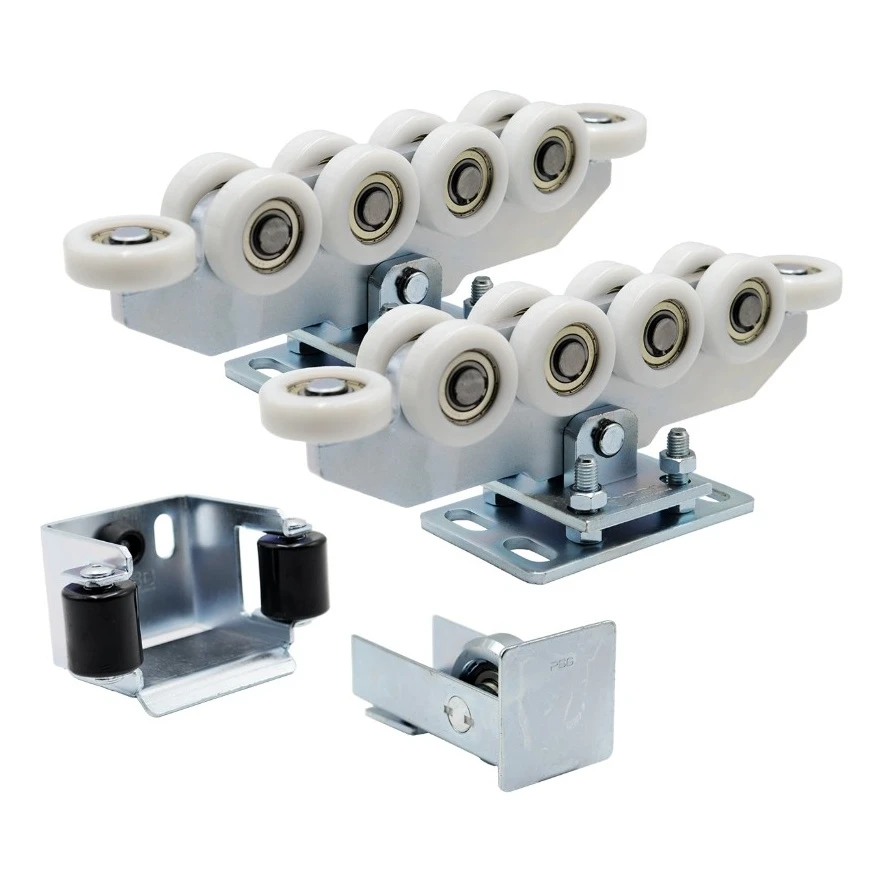

The PSG sliding trolley kit with accessories is a complete installation set for cantilever sliding gates, designed for 80 × 80 × 5 mm track. The kit includes two 10-roller trolleys with nylon rollers, a guide catch with guide rollers, and an entry roller — everything an installation team needs to fit a gate quickly, securely, and without additional purchases.
Kit Contents
- 2 × 10-roller sliding trolley — with nylon rollers (including two horizontal), ensuring quiet and smooth gate operation
- 1 × guide catch — steel, with two plastic guide rollers, stabilising the gate when closed
- 1 × entry roller — mounted at the beginning of the track, protecting the trolleys from snow and ice
- Mounting screws included

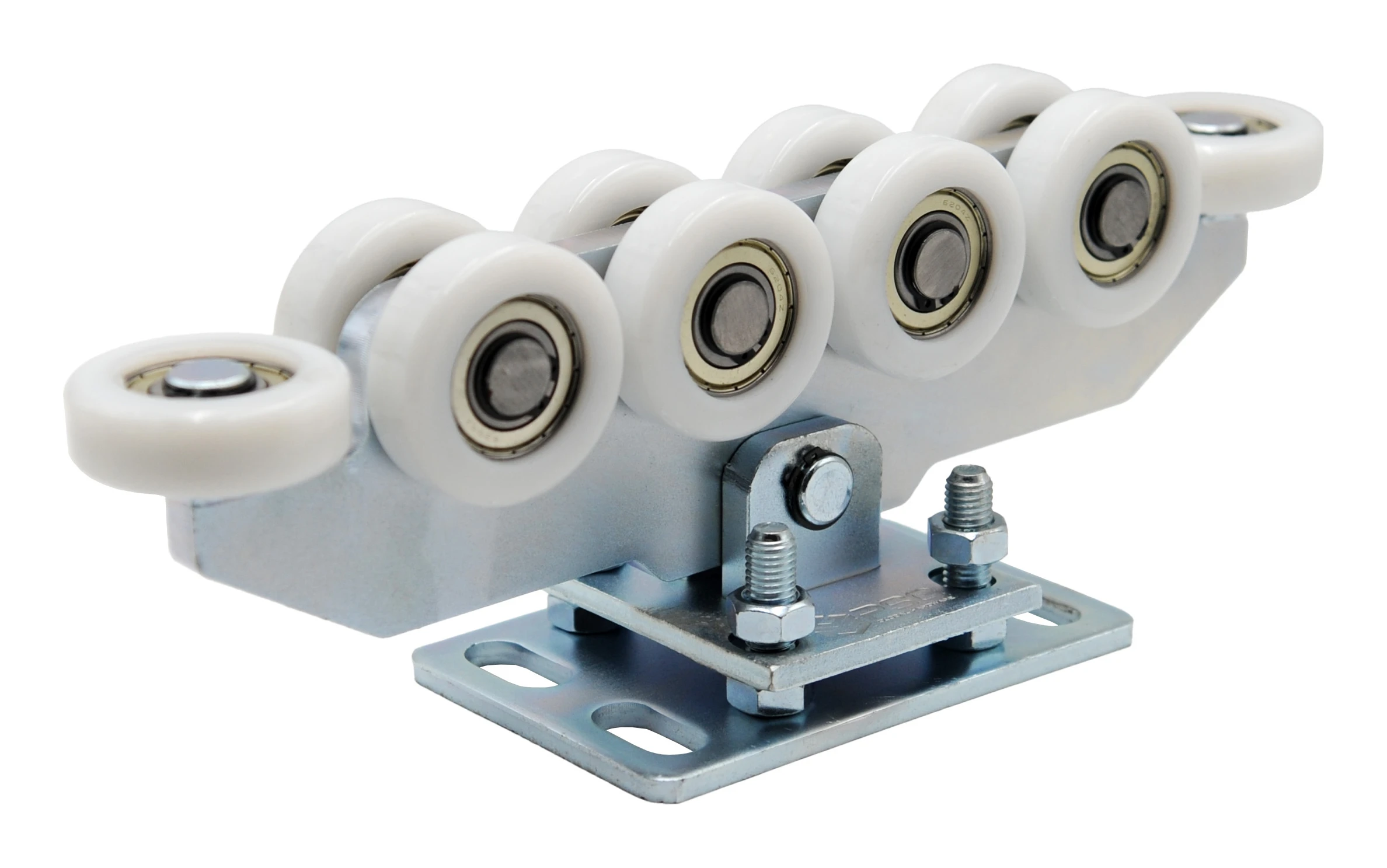

10-Roller Sliding Trolleys
Each trolley is fitted with 10 nylon rollers (including two horizontal), which minimise friction and reduce noise during gate movement. The swivel connection between the base and the pin allows the trolley to tilt slightly, compensating for uneven ground and variable loads — reducing stress and extending the service life of the entire system. The height adjustment mechanism via screws allows the trolleys to be precisely aligned to the gate structure during installation. The maximum load capacity of a single trolley is 900 kg, making the kit suitable even for heavy industrial gates.

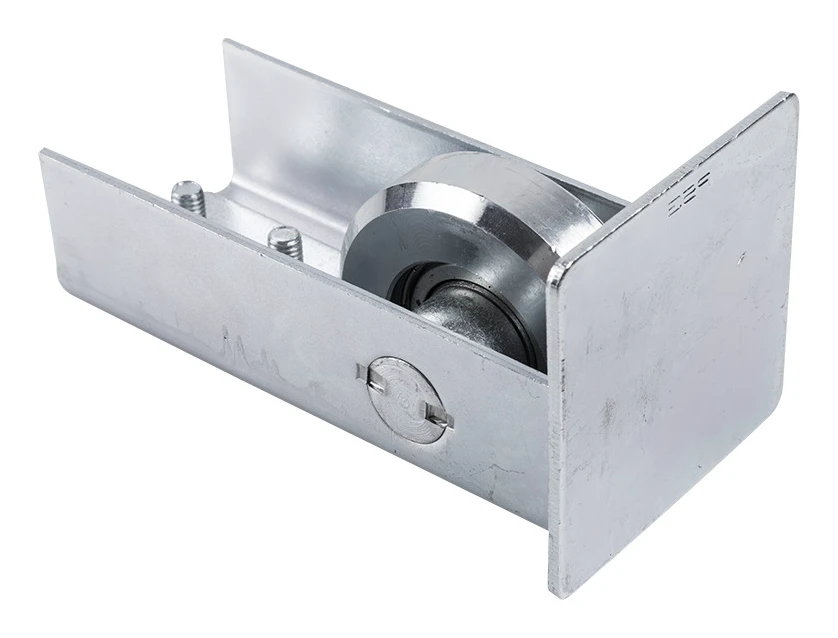

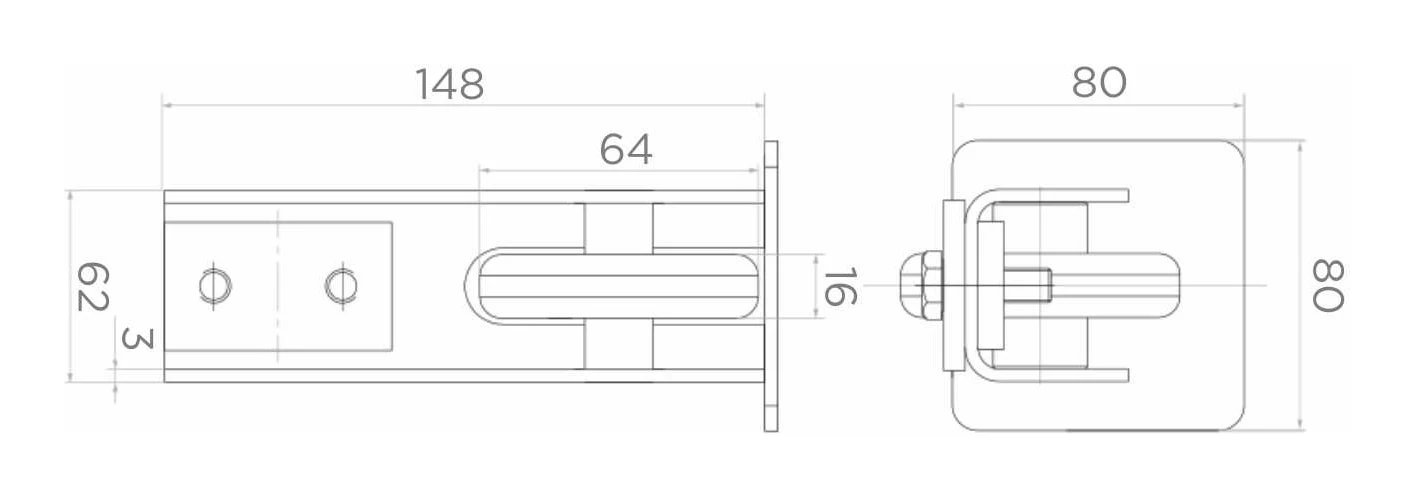

Entry Roller — Dimensions and Construction
The entry roller is mounted at the beginning of the track and serves a protective function — it guides the gate onto the trolleys whilst protecting them from icing and debris. This ensures smooth system operation even in harsh weather conditions.
- Overall length: 148 mm
- Roller slot length: 64 mm
- Width of inserted profile: 62 mm
- Wheel width: 16 mm
- Sheet thickness: 3 mm
- Front plate: 80 × 80 mm
- For track: 80 × 80 × 5 mm
- Finish: galvanised

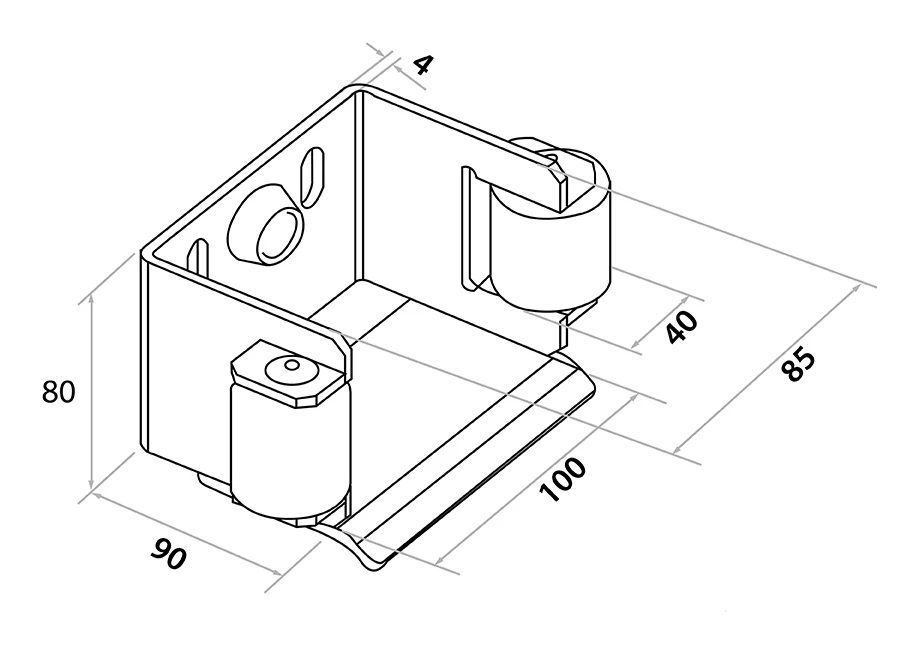

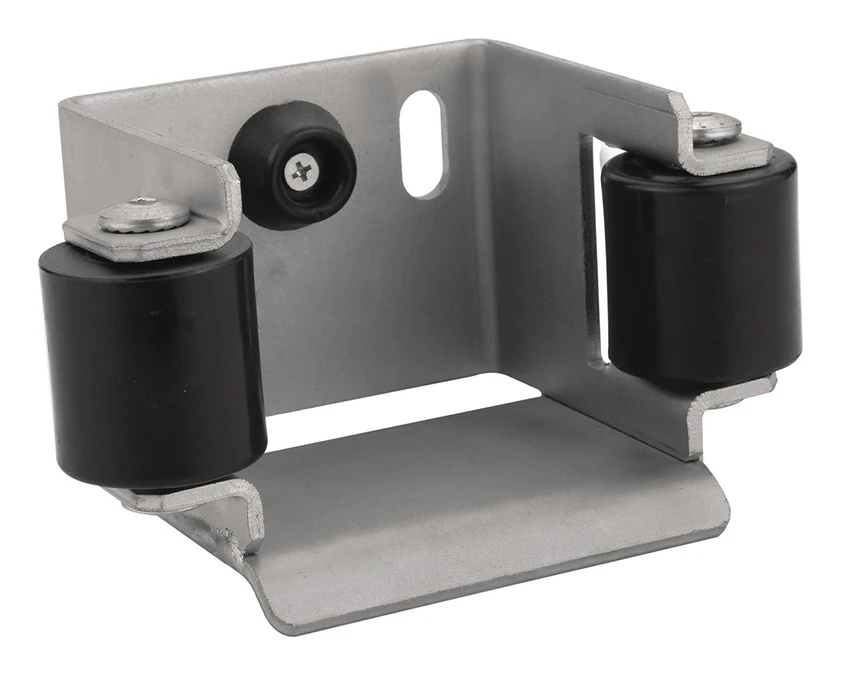

Guide Catch — Dimensions and Construction
The steel guide catch is mounted on the post and stabilises the gate when closed, whilst distributing its weight across additional structural elements. Two plastic guide rollers ensure precise gate guidance and reduce trolley wear.
- Mounting plate height: 80 mm
- Mounting plate width: 90 mm
- Overall depth: 100 mm
- Clearance between rollers: 85 mm
- Guide roller height: 40 mm
- Sheet thickness: 4 mm
- Mounting hole spacing: 70 mm
- Mounting slot dimensions (slotted hole): 25 × 10 mm
- For track: 80 × 80 × 5 mm
- Finish: galvanised
Technical Specification
- Application: cantilever sliding gate
- Trolley type: 80 (10-roller)
- Roller material: nylon (plastic)
- Number of rollers per trolley: 10 (including 2 horizontal)
- Compatible track: 80 × 80 × 5 mm
- Max. trolley load capacity: 900 kg
- Height adjustment: yes (adjustment screws)
- Finish: galvanised
- Brand: PSG
- Kit weight: 21 kg
Trolley Spacing Selection
The correct trolley spacing depends on the clear opening width of the gate and its weight. The table below provides a quick guide for selecting the optimum centre-to-centre trolley spacing (Lw) for gates with a clear opening of 5.5 m to 8.0 m and a weight of 450 kg to 650 kg.

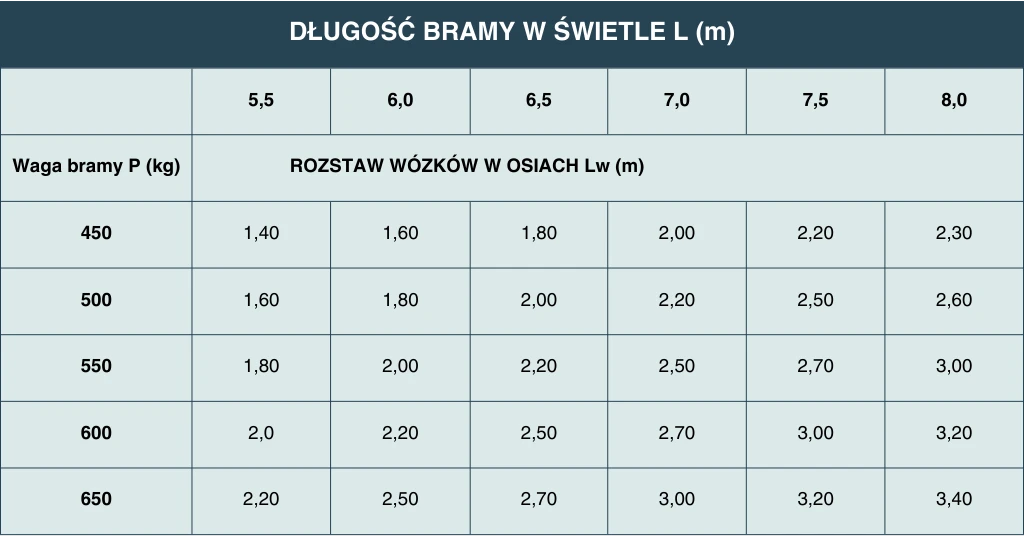

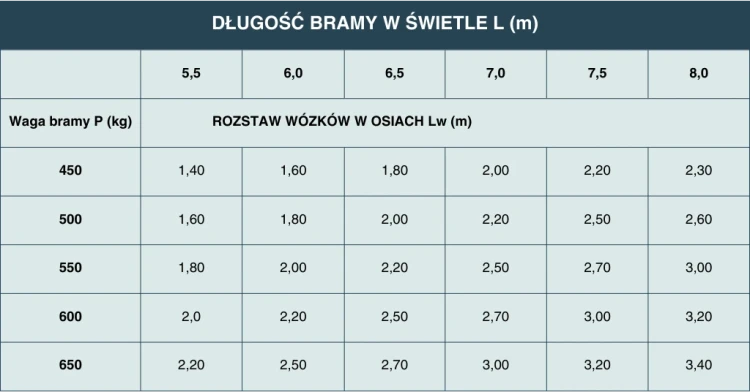

Trolley spacing selection table for cantilever sliding gates
| GATE CLEAR OPENING WIDTH L (m) | ||||||
|---|---|---|---|---|---|---|
| 5.5 | 6.0 | 6.5 | 7.0 | 7.5 | 8.0 | |
| Gate weight P (kg) | CENTRE-TO-CENTRE TROLLEY SPACING Lw (m) | |||||
| 450 | 1.40 | 1.60 | 1.80 | 2.00 | 2.20 | 2.30 |
| 500 | 1.60 | 1.80 | 2.00 | 2.20 | 2.50 | 2.60 |
| 550 | 1.80 | 2.00 | 2.20 | 2.50 | 2.70 | 3.00 |
| 600 | 2.0 | 2.20 | 2.50 | 2.70 | 3.00 | 3.20 |
| 650 | 2.20 | 2.50 | 2.70 | 3.00 | 3.20 | 3.40 |
All components in the kit are galvanised, providing effective corrosion protection and a long service life even in harsh weather conditions. PSG products are trusted solutions for professional installation companies, guaranteeing reliability and consistent installation results.
