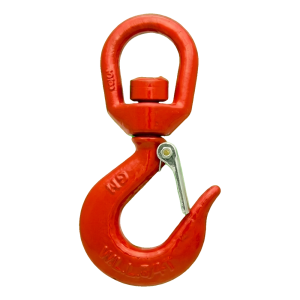

Swivel hook with safety catch 5000 kg – galvanised and painted C45 steel
Leave feedback on the product

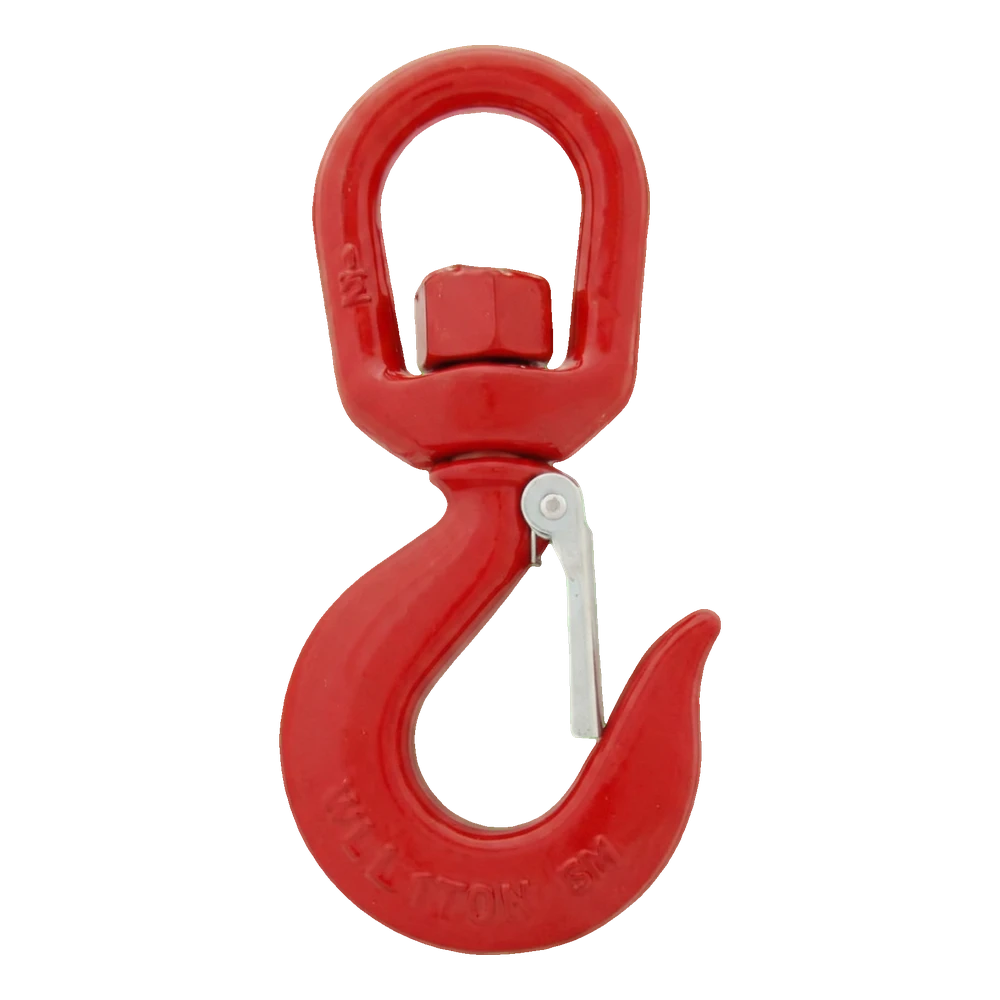

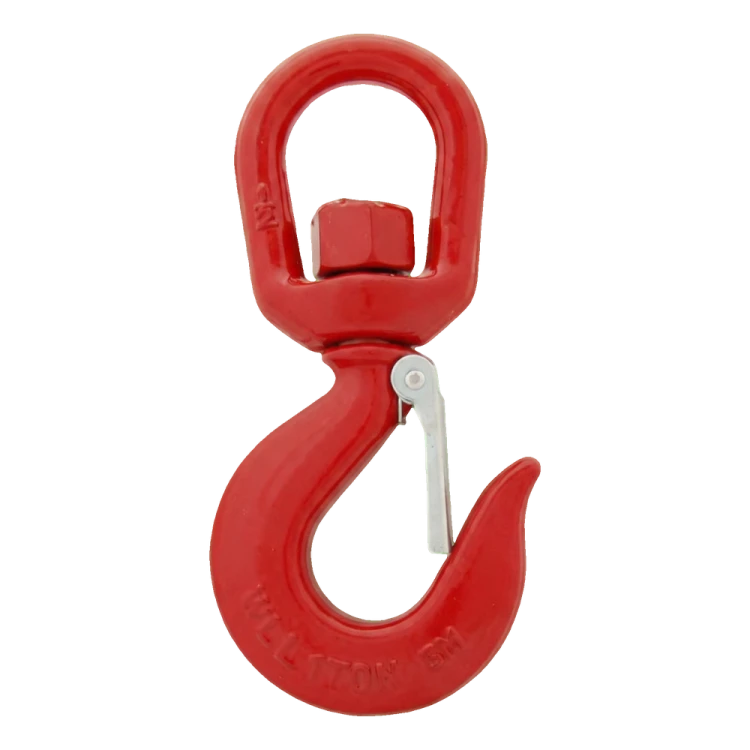

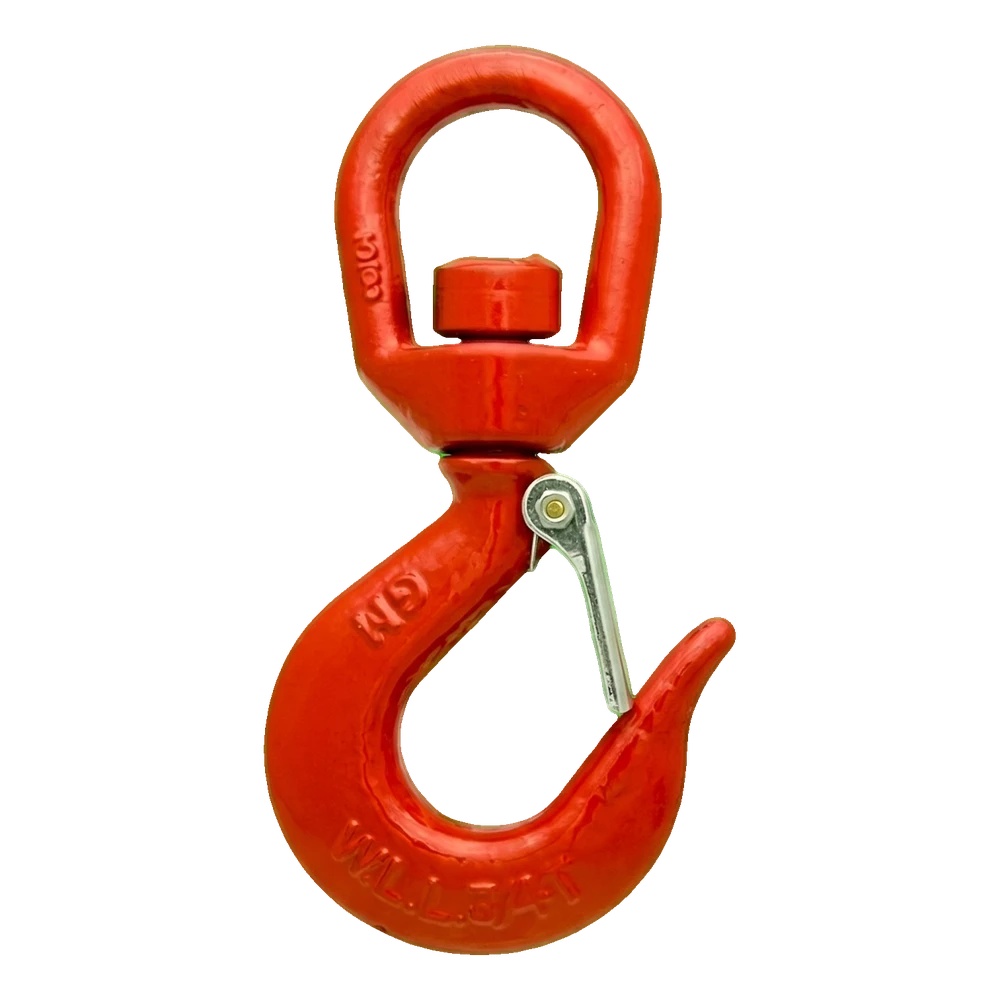

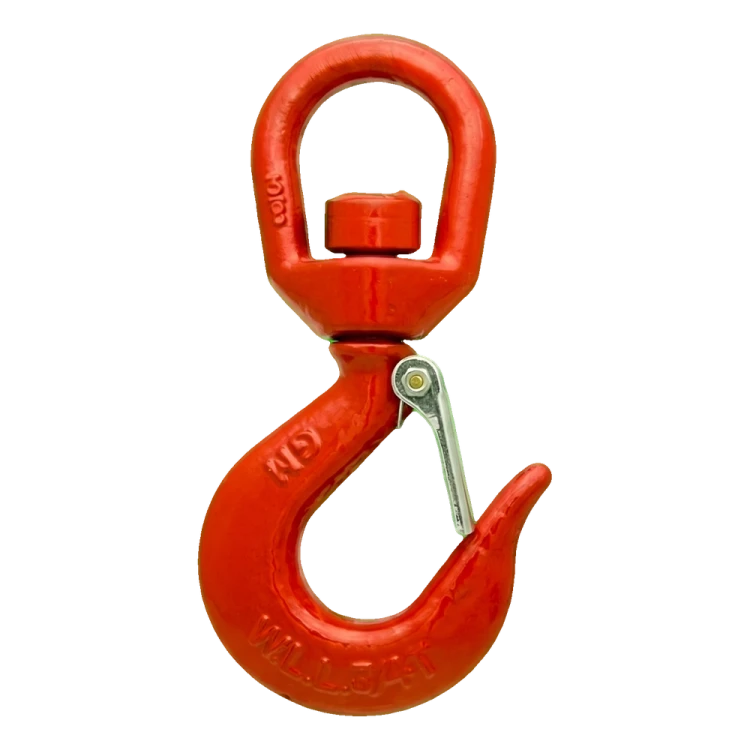

Swivel hook with safety catch HZO, galvanised and powder-coated C45 steel, red RAL 3020. Working load limit WLL 5000 kg, proof force 98.1 kN, breaking force 245.1 kN. Spring latch, weight 4.72 kg, height 313 mm.
Product code: 002-536
Product features
[PIM] karabinczyki-i-haki-z-zabezpieczeniem #1048
- Fitting type Swivel hook with safety latch
- Max. load capacity [kg] 5000
Description
Swivel hook with safety catch 5000 kg – galvanised and painted C45 steel
The Swivel hook with safety catch from the HZO series is a durable piece of lifting equipment designed for professional load transport and lifting applications. Made of C45 steel and protected by a double anti-corrosion coating (zinc plating covered with red RAL 3020 powder coating), it offers lasting durability even in demanding outdoor conditions. The working load limit WLL is 5000 kg, which, combined with a high 5:1 safety factor, guarantees reliability during heavy lifting operations. The swivel design with an integrated spring latch protects the load from accidentally slipping off the hook, while the dimensional tolerance of ±5% ensures repeatable production and a reliable fit with existing rope and chain equipment.
Key features of the HZO hook
- The swivel eye allows the load to be positioned freely without twisting the rope or chain
- The spring safety latch prevents the sling from slipping uncontrollably out of the hook throat
- Double corrosion protection — hot-dip galvanising covered with red RAL 3020 powder coating makes visual identification easier on the construction site
- Compact C45 steel construction provides strength with a convenient dead weight, making everyday work easier for installation crews
- Sales unit: 1 piece — you order exactly as many as you need

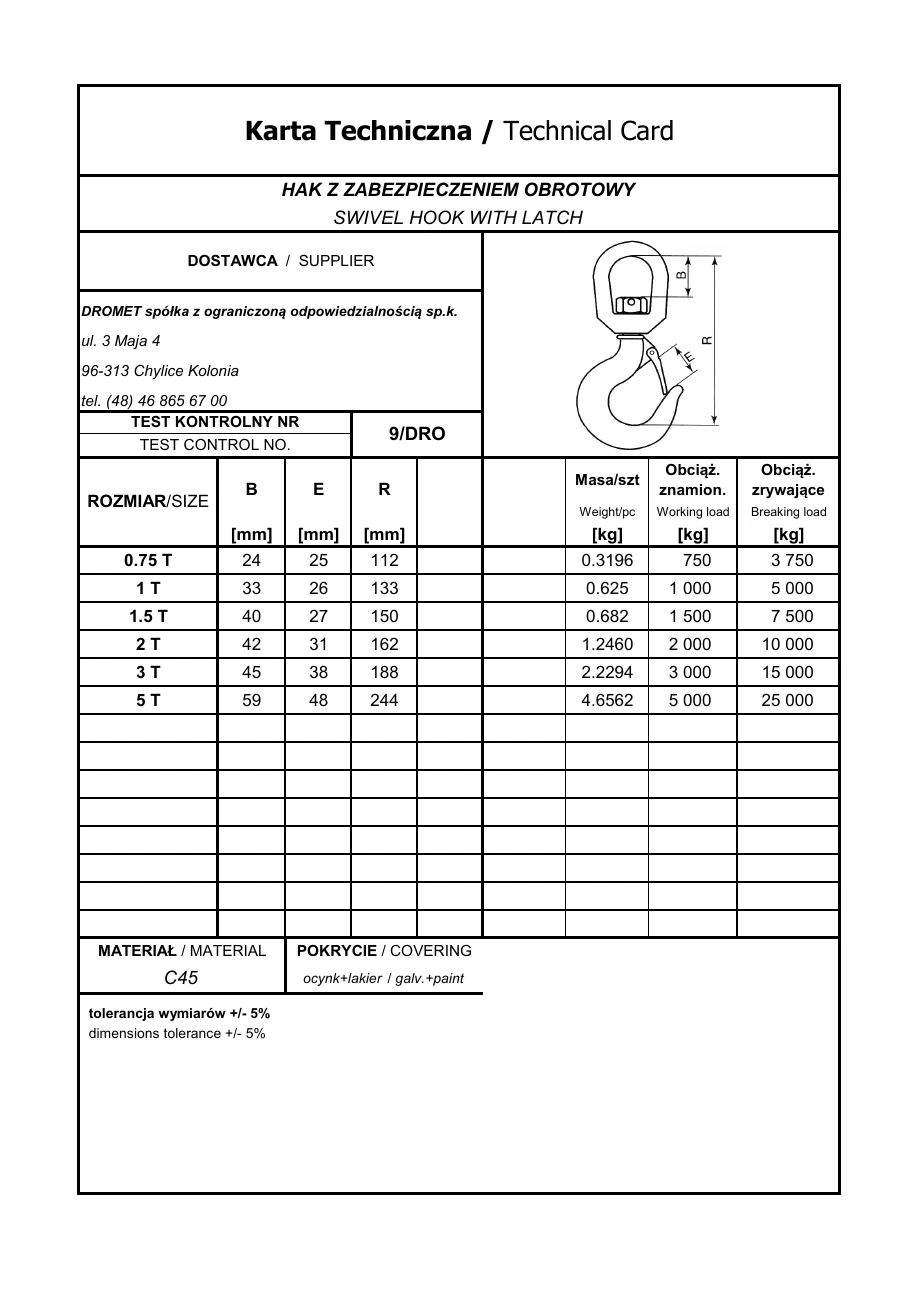

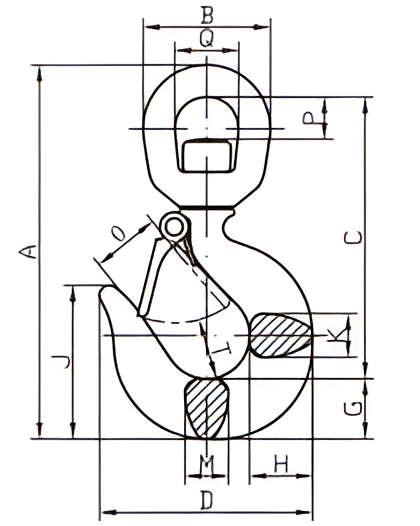

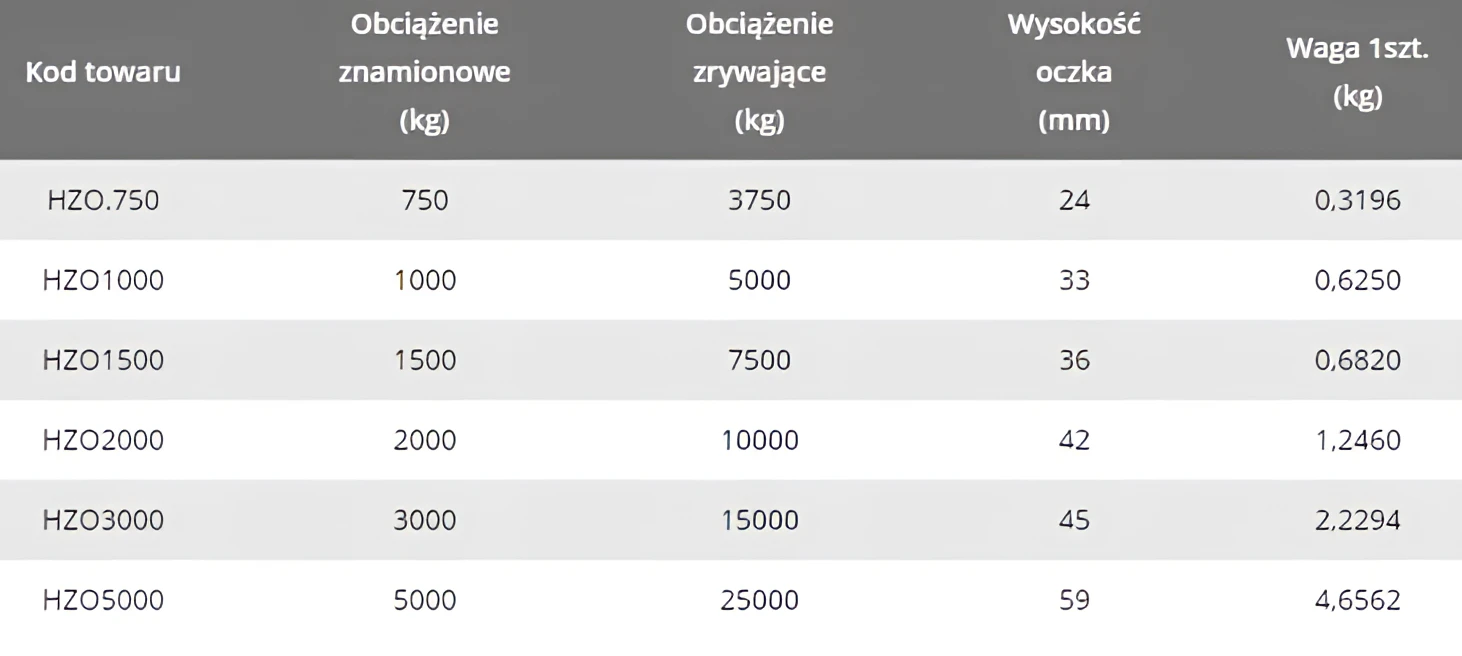

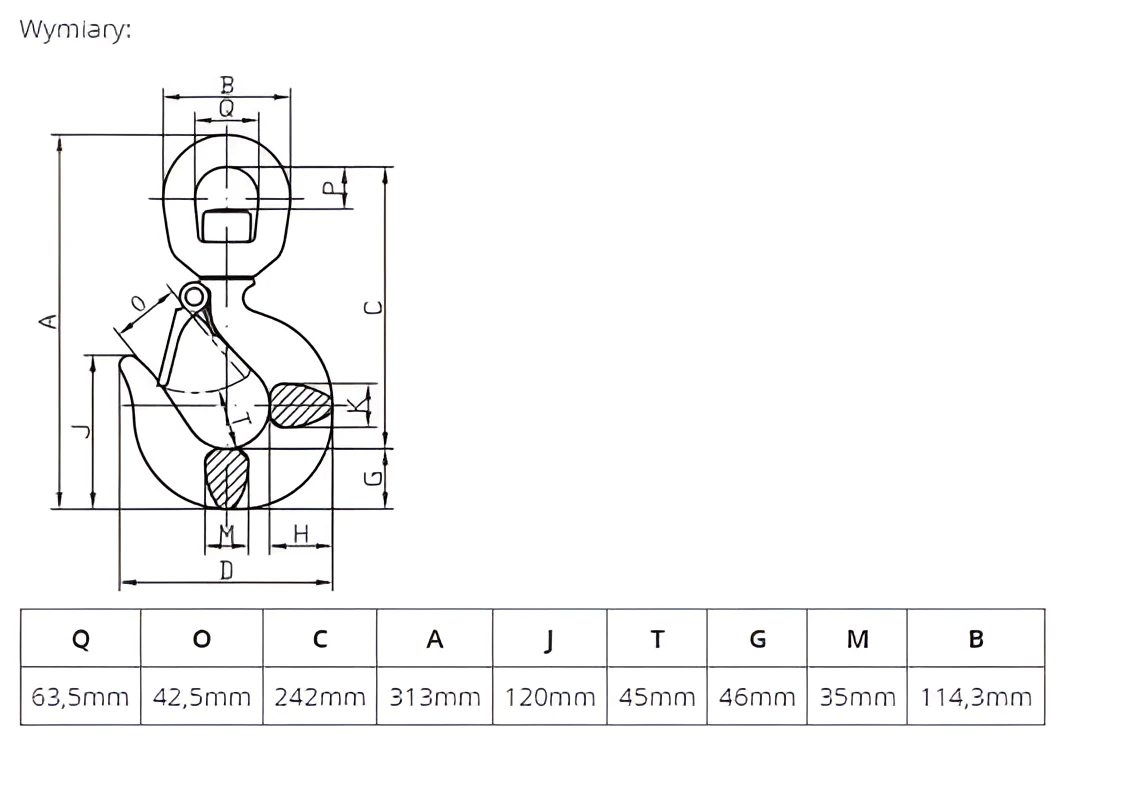

The technical drawing shows the key dimensions of the hook, marked with letters from A to Q. The proportions of the design have been selected so that the throat freely accepts ropes and slings of large cross-section, while the eye allows a secure connection to shackles and other rigging components. Detailed values for individual dimensions can be found in the specification sheet below.
