Swivel hook with safety catch 3000 kg – galvanised and painted C45 steel
Leave feedback on the product

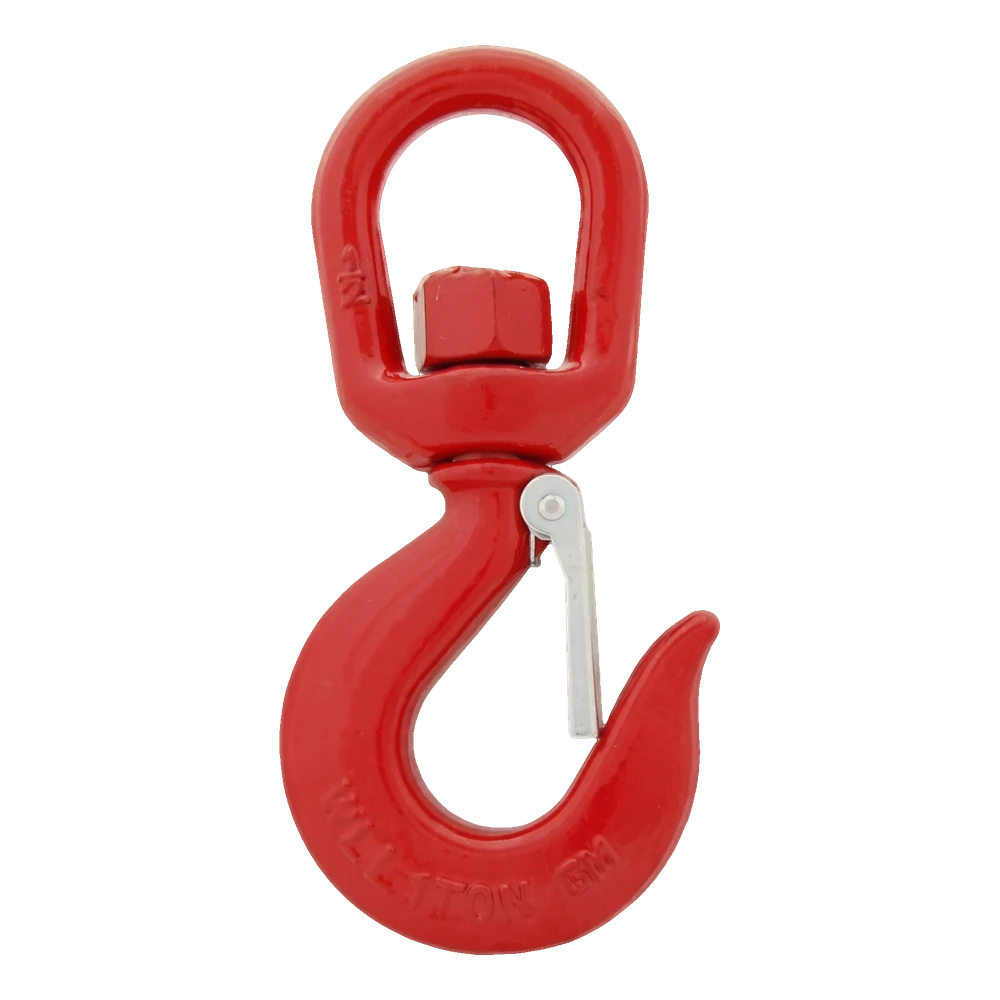

Swivel hook with safety catch HZO3000, C45 steel, galvanised and powder-coated in red RAL 3020. Load capacity 3 t, safety factor 5:1. Overall height 242 mm, hook thickness 35 mm. 360° swivel mechanism.
Product code: 002-535
Product features
[PIM] karabinczyki-i-haki-z-zabezpieczeniem #1048
- Fitting type Swivel hook with safety latch
- Max. load capacity [kg] 3000
Description
Swivel hook with safety catch 3000 kg – galvanised and painted C45 steel

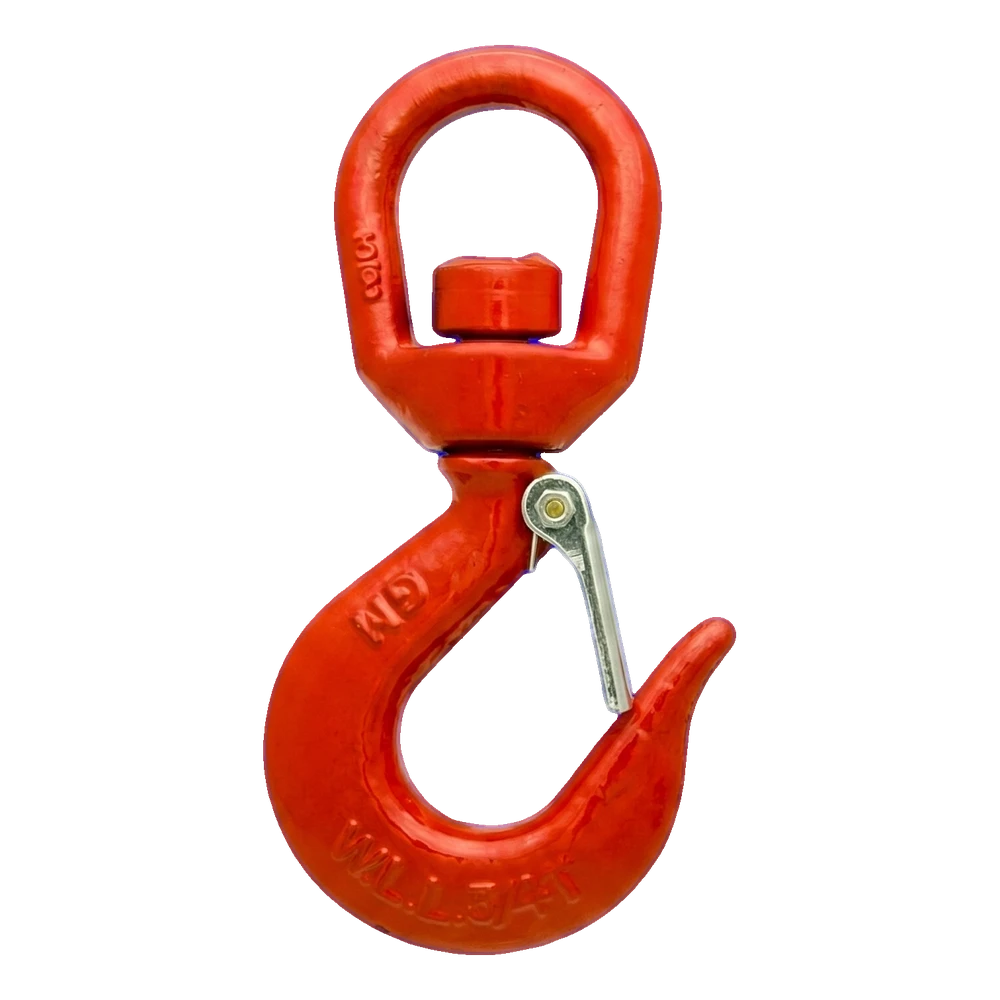

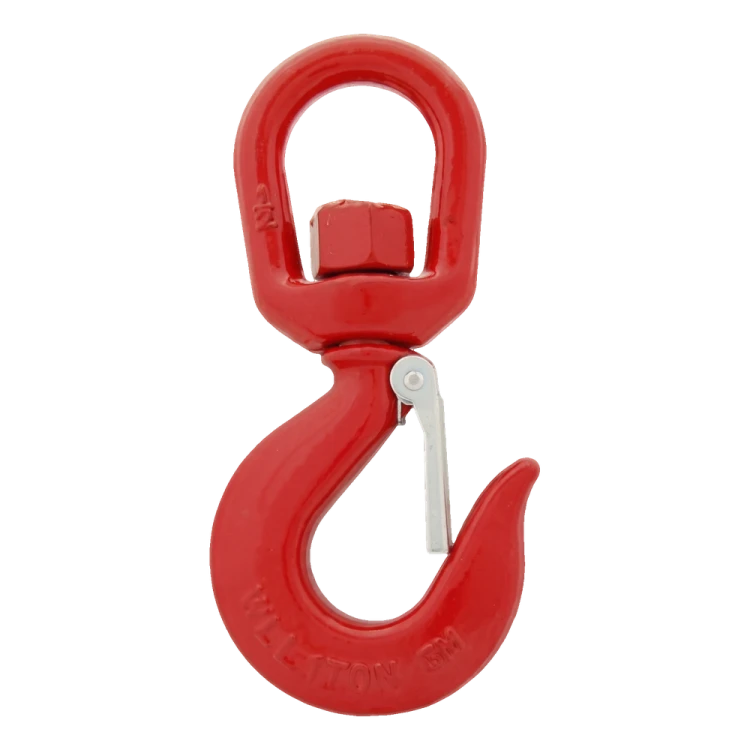

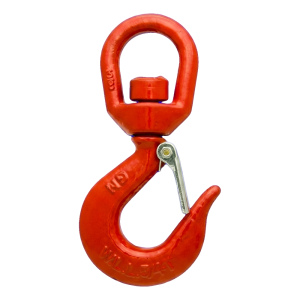

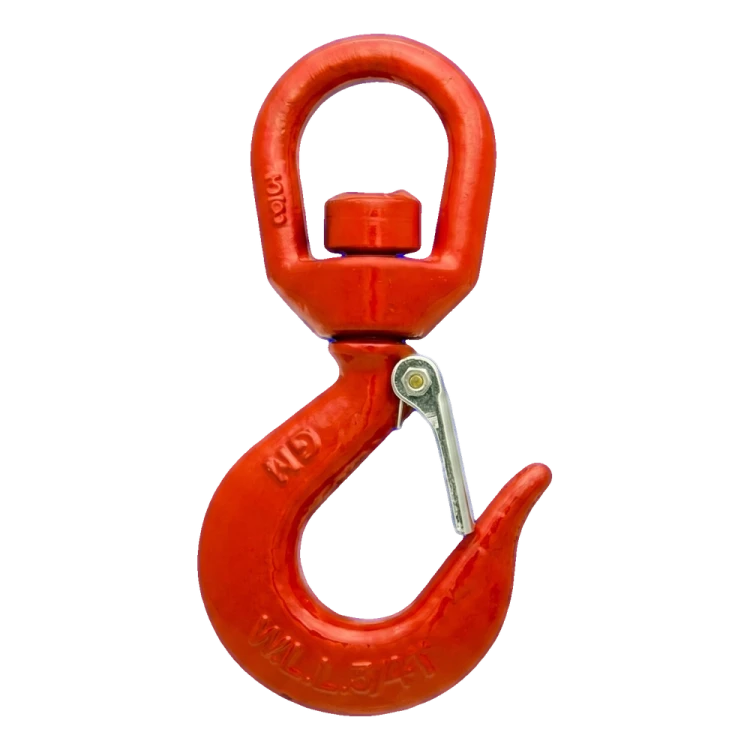

Swivel hook with safety catch HZO3000 is a durable piece of lifting equipment designed for professional lifting and load transport applications. Made of C45 steel and protected by a double anti-corrosion coating (zinc plating + RAL 3020 powder coating), it ensures reliable performance even in demanding weather conditions. The design, with a capacity of 3 tonnes, guarantees a high safety margin in everyday use. The built-in swivel mechanism allows the load to be positioned freely without having to turn the sling by hand, and the spring-loaded throat safety catch (latch) prevents the rope or chain link from slipping out accidentally.
Key design features
- 360° swivel mechanism for precise manoeuvring of the load without twisting the sling
- Spring-loaded throat safety catch protecting against uncontrolled slipping of the rope or chain
- Double corrosion protection – zinc plating plus red RAL 3020 powder coating for good visibility on the building site
- Forged from C45 steel – high strength and resistance to deformation under heavy loads
- Dimensional tolerance ±5% in accordance with the manufacturer's data sheet
The HZO series hook is ideal wherever loads need to be suspended safely – both on overhead crane and crane hooks, and in sling sets with steel wire ropes or chains. The swivel head with an eye allows connection to links, shackles and other items of equipment without the risk of the sling twisting under load. The red paint coating makes the equipment easy to identify visually in the workplace and meets health and safety requirements for marking load-bearing components.

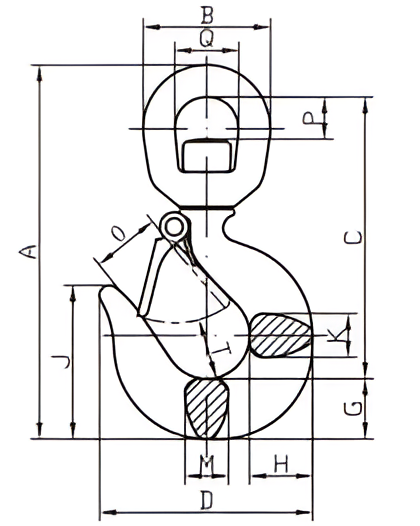

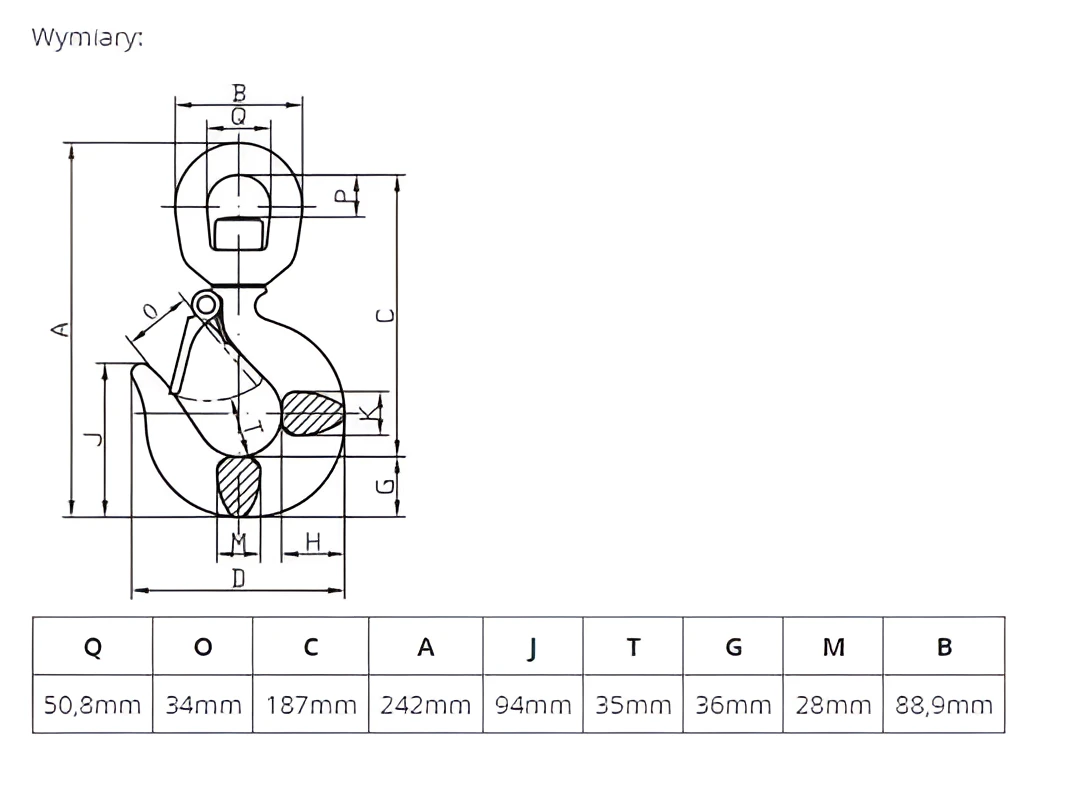

The dimensional drawing shows the key dimensions of the hook, marked with letter symbols (Q, O, C, A, J, T, G, M, B). The full set of values for the HZO3000 variant can be found in the specification table below. The geometry of the hook ensures compatibility with ropes and chains across a wide range of diameters, and allows free connection with the links and shackles used in 3 t class slings.

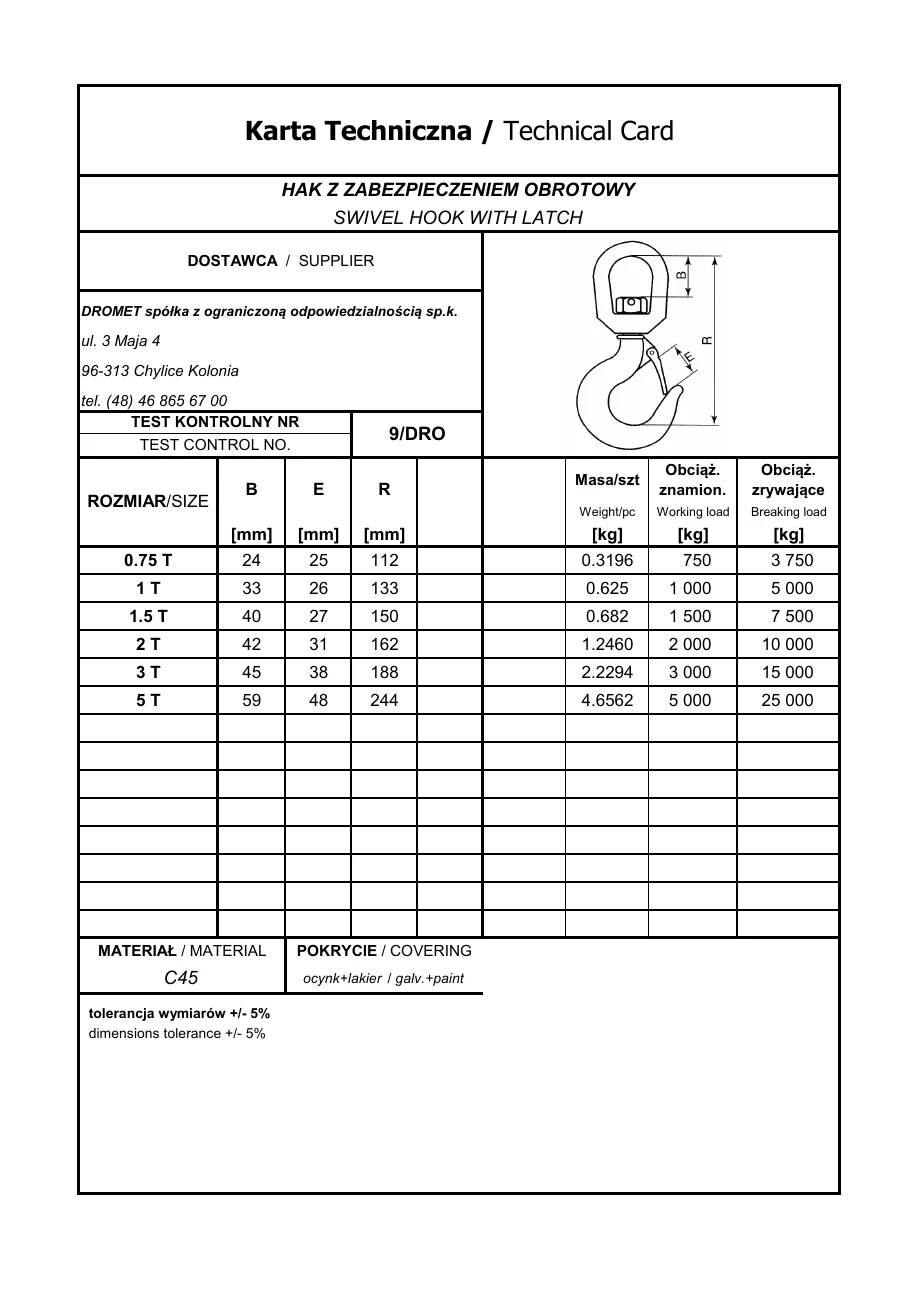

The manufacturer's data sheet confirms the strength parameters of the entire HZO series. The safety factor is 5:1 (ratio of breaking load to rated load), which is the standard for professional lifting equipment. The C45 material with a zinc + paint coating ensures durability and resistance to outdoor conditions.

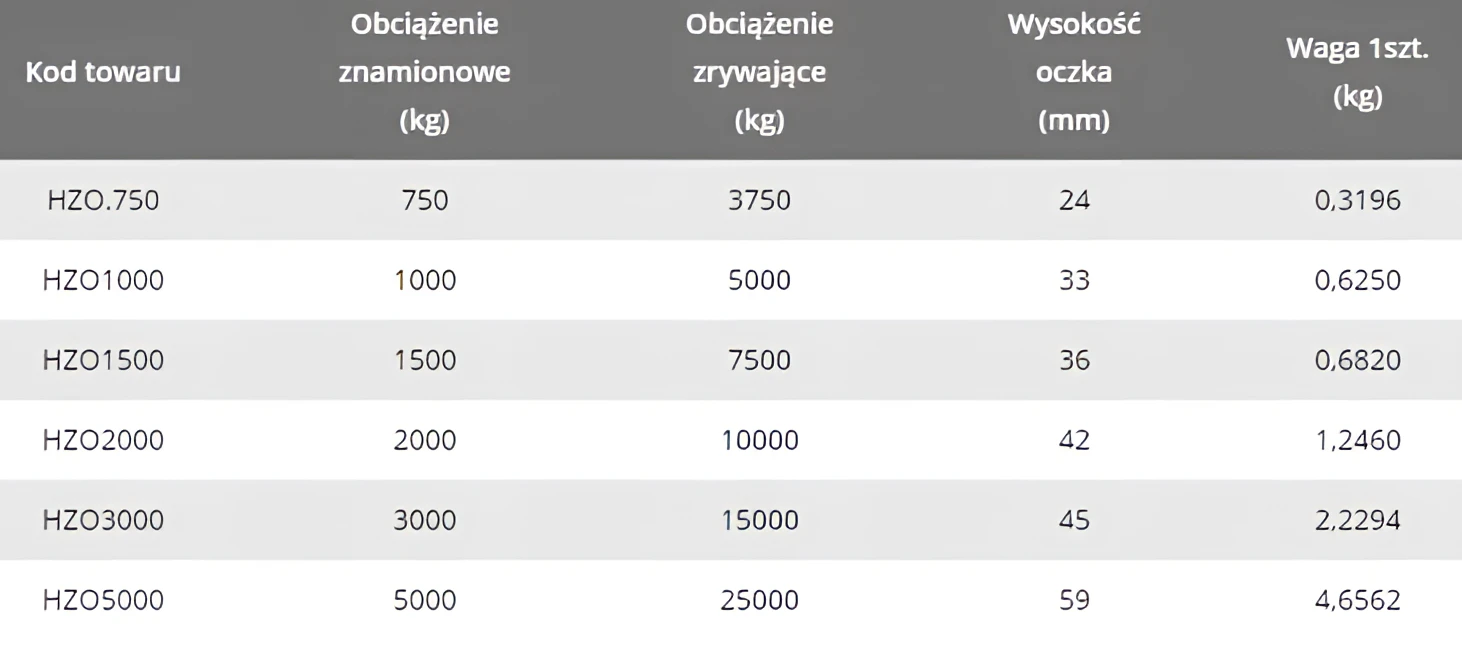

Comparison of HZO series variants
| Variant | Rated load [kg] | Breaking load [kg] | Eye height [mm] | Weight [kg] |
|---|---|---|---|---|
| HZO 0.75 T | 750 | 3,750 | 24 | 0.3196 |
| HZO 1 T | 1,000 | 5,000 | 33 | 0.6250 |
| HZO 1.5 T | 1,500 | 7,500 | 36 | 0.6820 |
| HZO 2 T | 2,000 | 10,000 | 42 | 1.2460 |
| HZO 3 T | 3,000 | 15,000 | 45 | 2.2294 |
| HZO 5 T | 5,000 | 25,000 | 59 | 4.6562 |
