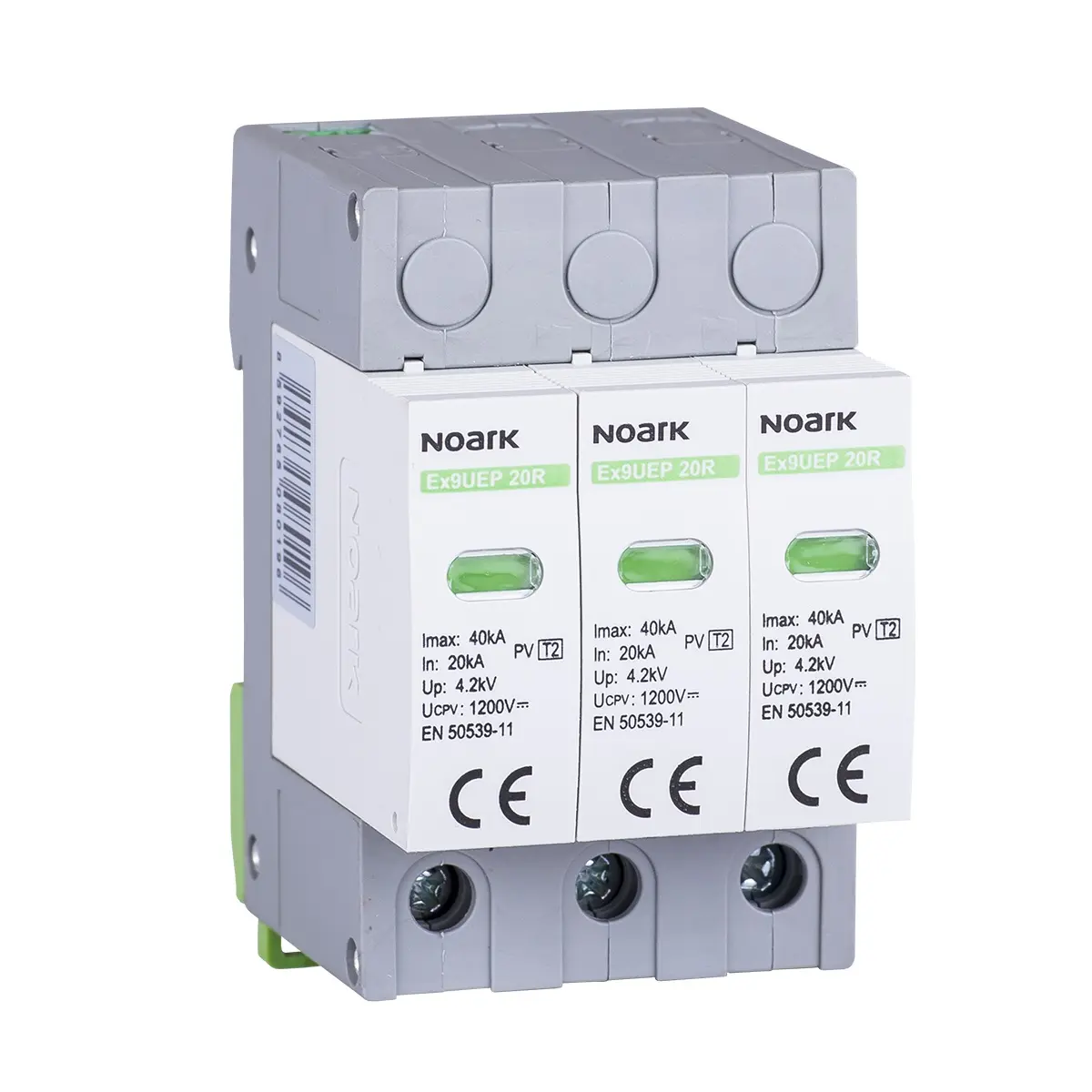

Surge Protector Type II 1200V DC 3 Modules Wide for Non-Earthed PV Systems
Description
Surge Protective Device, Type II, 1200V DC, 3 Module Width, For Non-Earthed PV Systems
Surge protective device SPD Ex9UEP, Type II, 1200 V DC, 3 module width, for non-earthed PV systems, Suitable for use in photovoltaic systems.
Surge protective device is a Type II overvoltage protection designed to handle voltage surges up to 1200 V DC. It is intended for use in non-earthed photovoltaic systems and provides protection against severe voltage spikes, lightning strikes and other electrical disturbances that may occur in solar energy systems. Its compact design, comprising 3 module widths, allows for easy integration with photovoltaic system configurations.
Ex9UEP DC surge protective devices are suitable for photovoltaic applications. These SPDs have been designed and tested in accordance with PV T2 class of EN 50539-11 standard. The display window on the front panel helps the user to see the device status, and the remote signal contact enables remote control. The plug-in module design allows for convenient module replacement without disconnecting the device.
General Parameters
- Direct Current - Surge protective devices for photovoltaic systems
- PV T2 Class Surge Protective Devices (Class II, Type 2, C)
- Meet the requirements of EN 50539-11 standard
- Nominal discharge current 20 kA (8/20 μs) per path
- Maximum discharge current Imax 40 kA (8/20 μs)
- Max. continuous operating voltage UCPV from 600 to 1500 V Direct current
- For earthed and non-earthed PV systems
- Plug-in module design with status display
- Optional remote signal contact
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Application | DC (photovoltaic) |
| Surge Protector Type (SPD Class) | T2 (C) |
| Rated Voltage [V] | 1200V DC |
| Number of poles | 3P |
| Lightning Current (Iimp/In) [kA] | 20 kA |
| Brand | NOARK |
