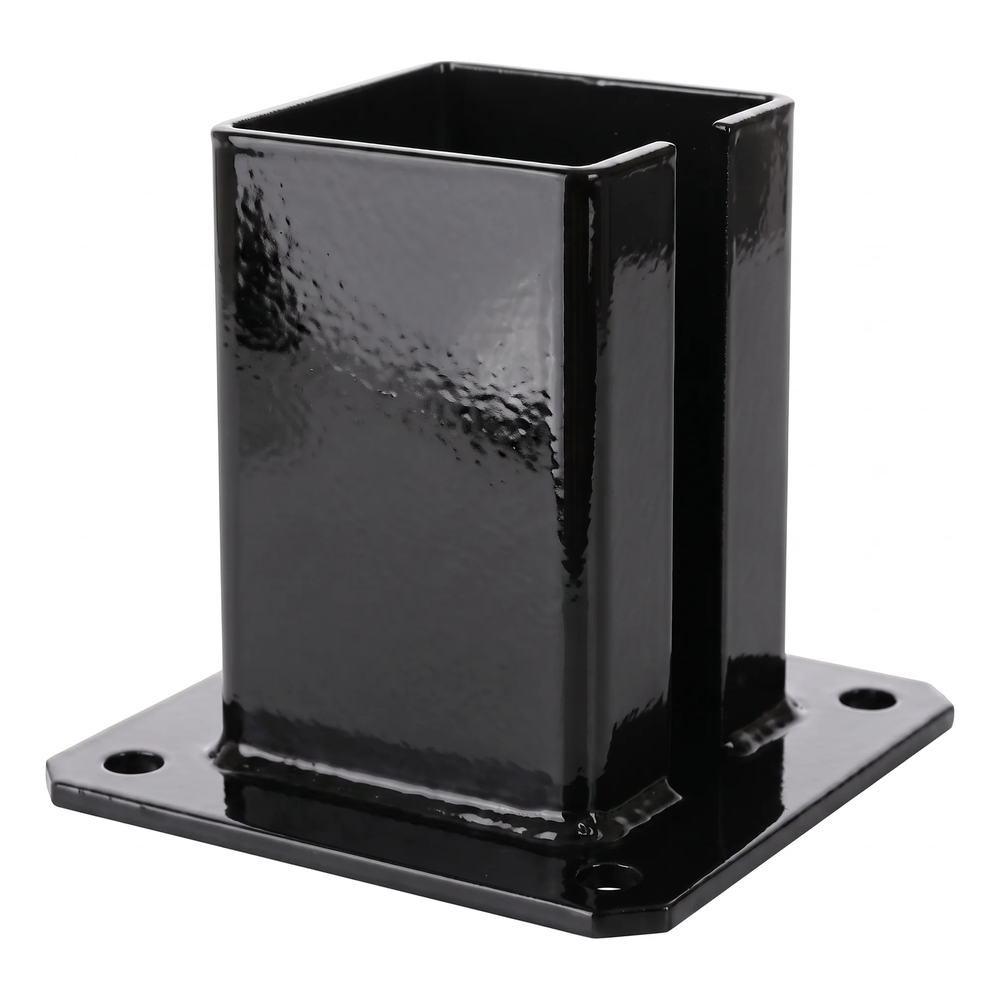

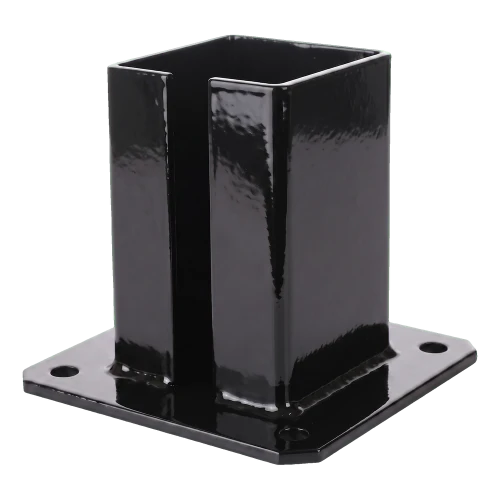

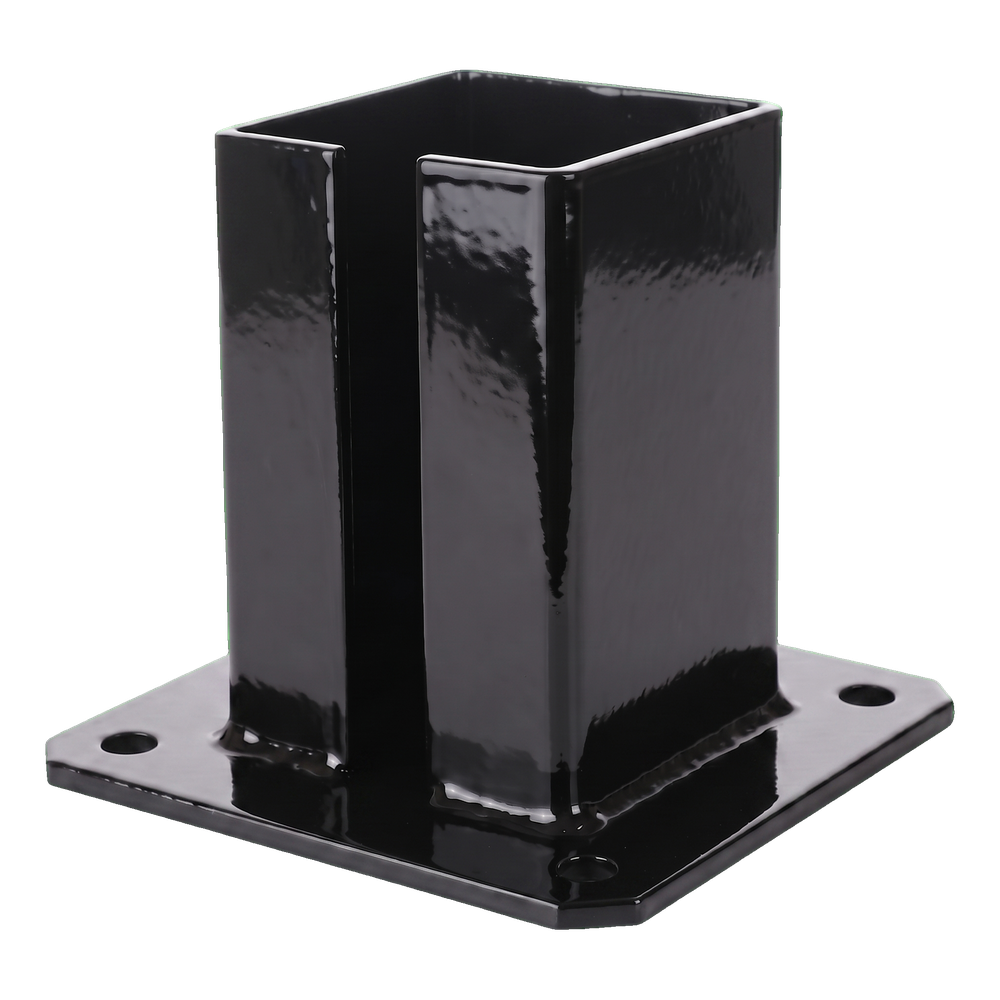

Fence post base plate – steel, for gate and fence posts 100×100 mm, black
Leave feedback on the product

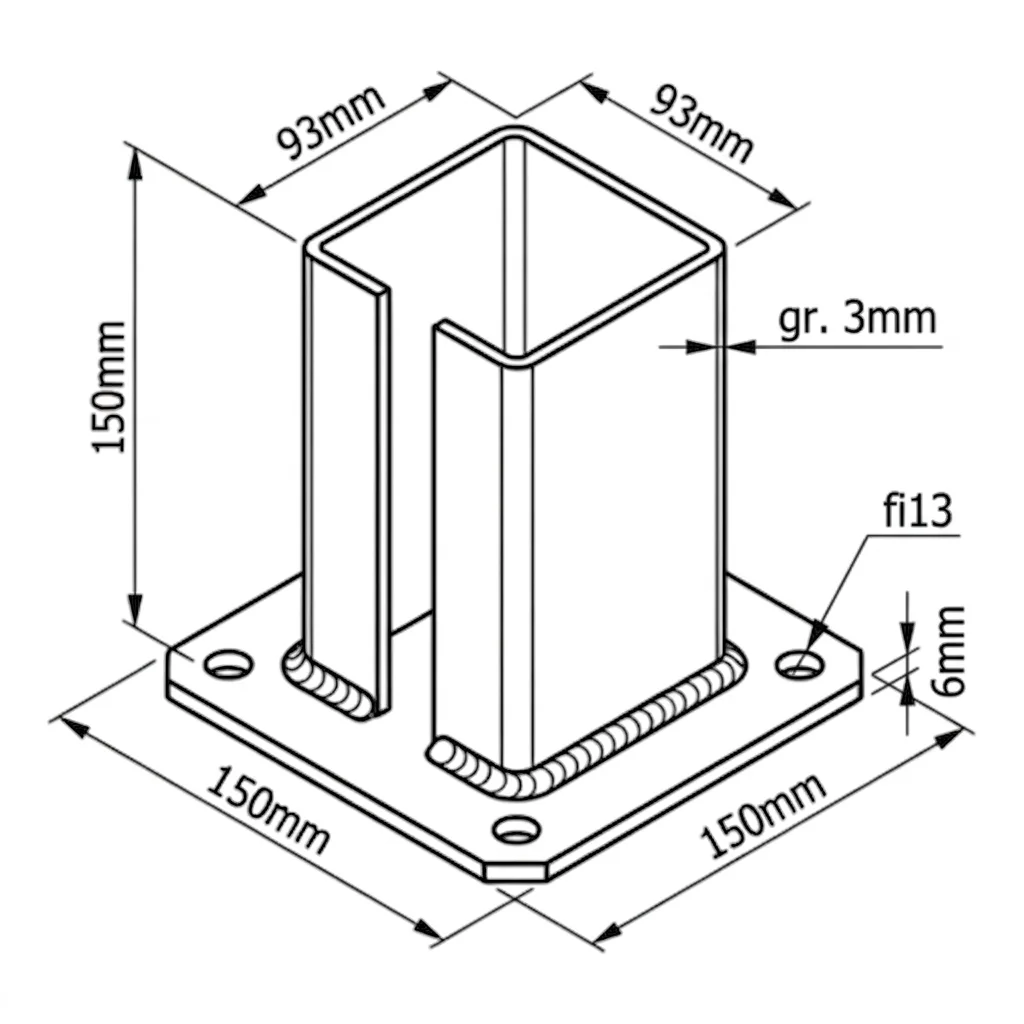

Fence post base plate (foot) in steel for 100×100 mm gate and fence posts, powder-coated, black RAL 9005. Internal profile 93×93 mm, height 150 mm, mounting plate 150×150 mm, wall thickness 3 mm, plate thickness 6 mm. 5 mounting holes Ø13 mm. Material: steel.
Product code: 000-790
Product features
[PIM] podstawy-slupka #162
- Accessory Type Post Base
- Colour Black RAL 9005
- Post Profile Dimension [mm] 100x100
Description
Steel fence post base plate for 100×100 mm gate and fence posts, black
This steel fence post base plate (foot) for 100×100 mm gate and fence posts is a durable mounting component that allows profile posts to be fixed quickly and securely to concrete surfaces, foundation walls and other hard substrates. Thanks to its powder coating in black RAL 9005, the product provides long-lasting corrosion resistance, even in the most demanding weather conditions.
The design consists of an open square profile matched to a 100×100 mm post, welded to a solid mounting plate with five holes for anchor bolts. A strong fillet weld at the base of the profile ensures reliable load transfer, while the vertical slot in the profile allows precise fitting and compensates for post tolerances.
Applications
- Mounting 100×100 mm gate and fence posts to a concrete foundation or floor slab
- Fixing to an existing fence foundation wall
- Installation on block paving and other hard surfaces
- Building pergolas, garden gazebos, home playgrounds and timber fences
- Panel fences, timber fences, sliding and swing gates, and other garden structures
Design advantages
- Strong fillet weld — a durable connection between the profile and the mounting plate, ensuring the stability of the entire structure
- Solid mounting plate — the thick steel base plate provides rigidity and distributes loads evenly across the substrate
- Quick installation — five mounting holes allow fixing to concrete with standard anchors, with no welding on site
- Tolerance slot — a vertical cut in the profile allows precise adjustment to post tolerances
