Fence post base plate, steel, 100×100 mm – anthracite RAL 7016 mounting foot
Leave feedback on the product

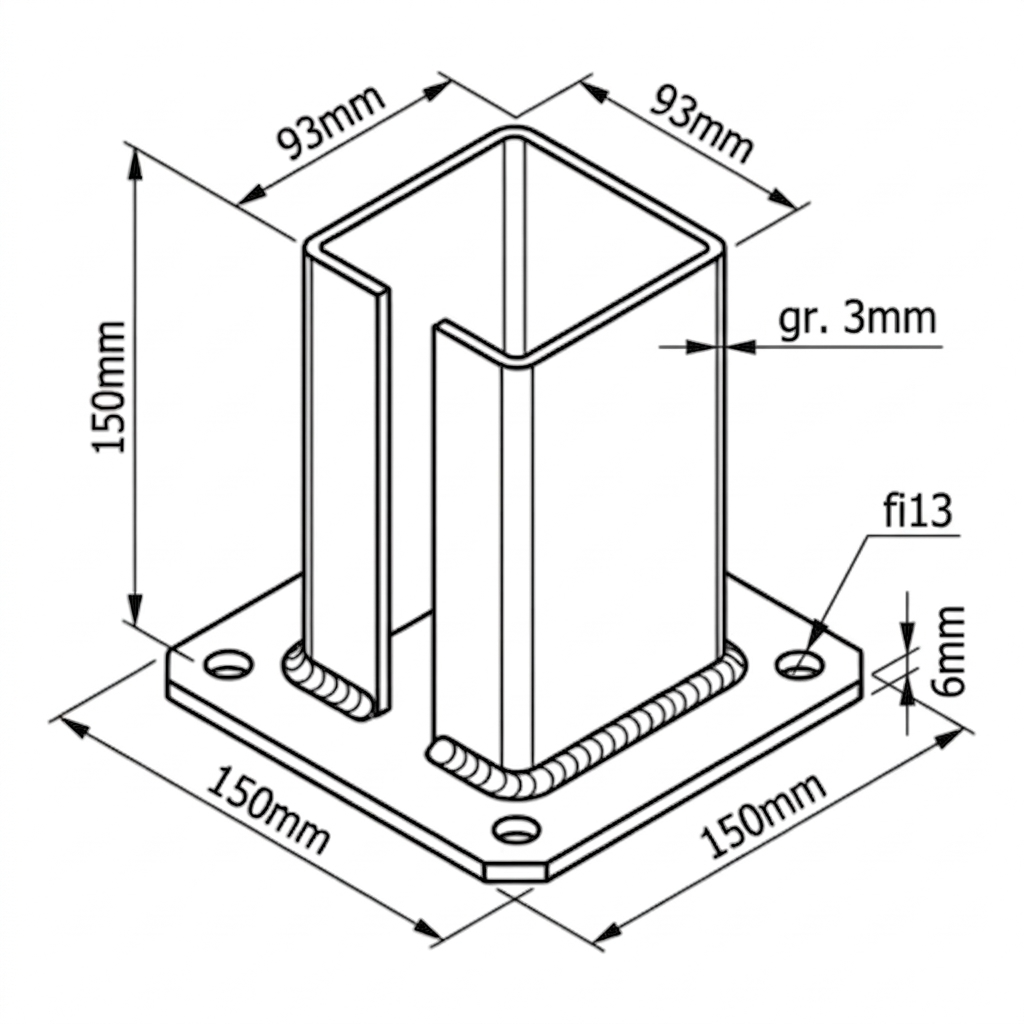

Steel fence post base plate for 100×100 mm fence posts, in anthracite RAL 7016. Internal profile dimensions 93×93 mm, height 150 mm. Mounting plate 150×150 mm, 8 mm thick, with 5 holes of Ø13 mm. Profile wall thickness 3 mm. Powder-coated, fixed to concrete with anchors.
Product code: 000-792
Product features
[PIM] podstawy-slupka #162
- Accessory Type Post Base
- Colour Graphite RAL 7016
- Post Profile Dimension [mm] 100x100
Description
Fence post base plate, steel, 100×100 mm – anthracite RAL 7016 mounting foot

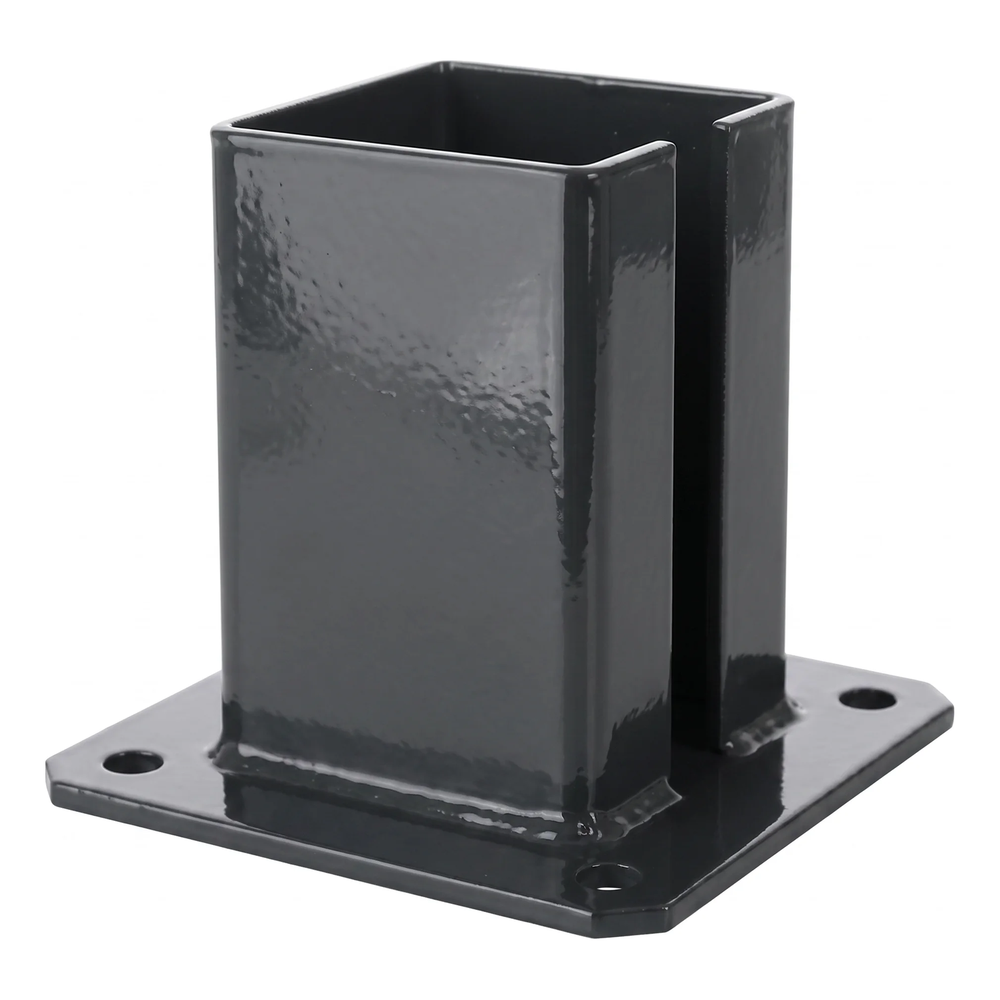

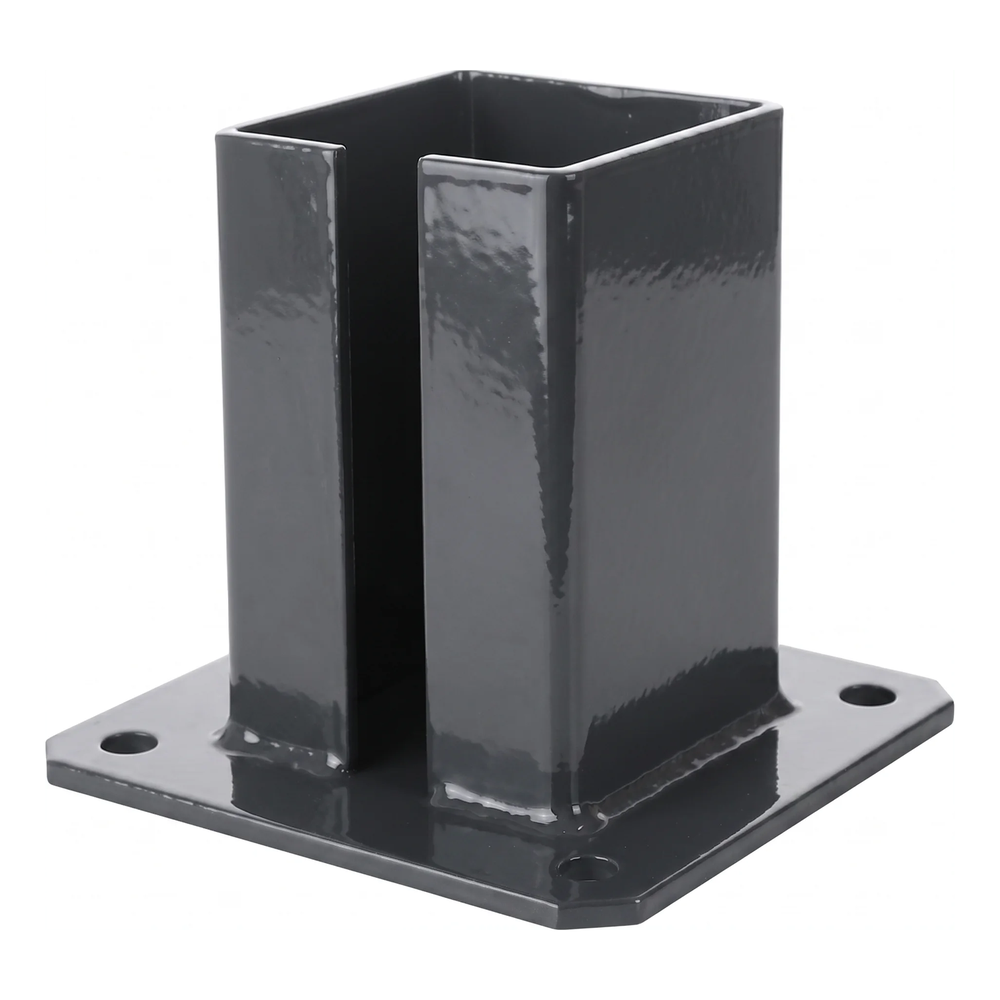

Steel mounting base plate for 100×100 mm gate and fence posts — a durable anchoring component that lets you fix a profiled post quickly and securely to a concrete foundation, plinth or other hard surface. The anthracite RAL 7016 powder-coated finish provides long-lasting corrosion resistance, even in demanding weather conditions.
Robust construction
The fence post base plate consists of an open square profile sized for a 100×100 mm post, welded to a heavy-duty mounting plate. The fillet weld at the base of the profile ensures a durable connection and reliable transfer of loads — both vertical and lateral. The vertical slot in the profile allows precise fitting of the post and compensates for dimensional tolerances, making adjustment easier during installation.
Quick installation without welding
Five mounting holes in the heavy, thick base plate allow the foot to be bolted to concrete using standard mechanical or chemical anchors. The thick steel plate ensures rigidity and an even distribution of loads onto the substrate — with no need for welding on site.
Applications
- Fixing 100×100 mm gate and fence posts to a concrete foundation or floor slab
- Fixing to an existing fence plinth
- Installation on block paving and other hard surfaces
- Building pergolas, garden gazebos, home play areas and timber fences
- Panel and timber fences, sliding and swing gates
