Fence post base plate for 100×100 mm fence and gate posts, steel, galvanised
Leave feedback on the product
Steel fence post base plate (foot) for 100×100 mm fence and gate posts, hot-dip galvanised. Mounting plate 150×150×8 mm, 73×73 mm profile, height 150 mm, wall thickness 3 mm. 5 holes Ø13 mm. Fixed to concrete using anchors.
Product code: 000-789
Product features
[PIM] podstawy-slupka #162
- Accessory Type Post Base
- Colour Galvanised
- Post Profile Dimension [mm] 100x100
Description

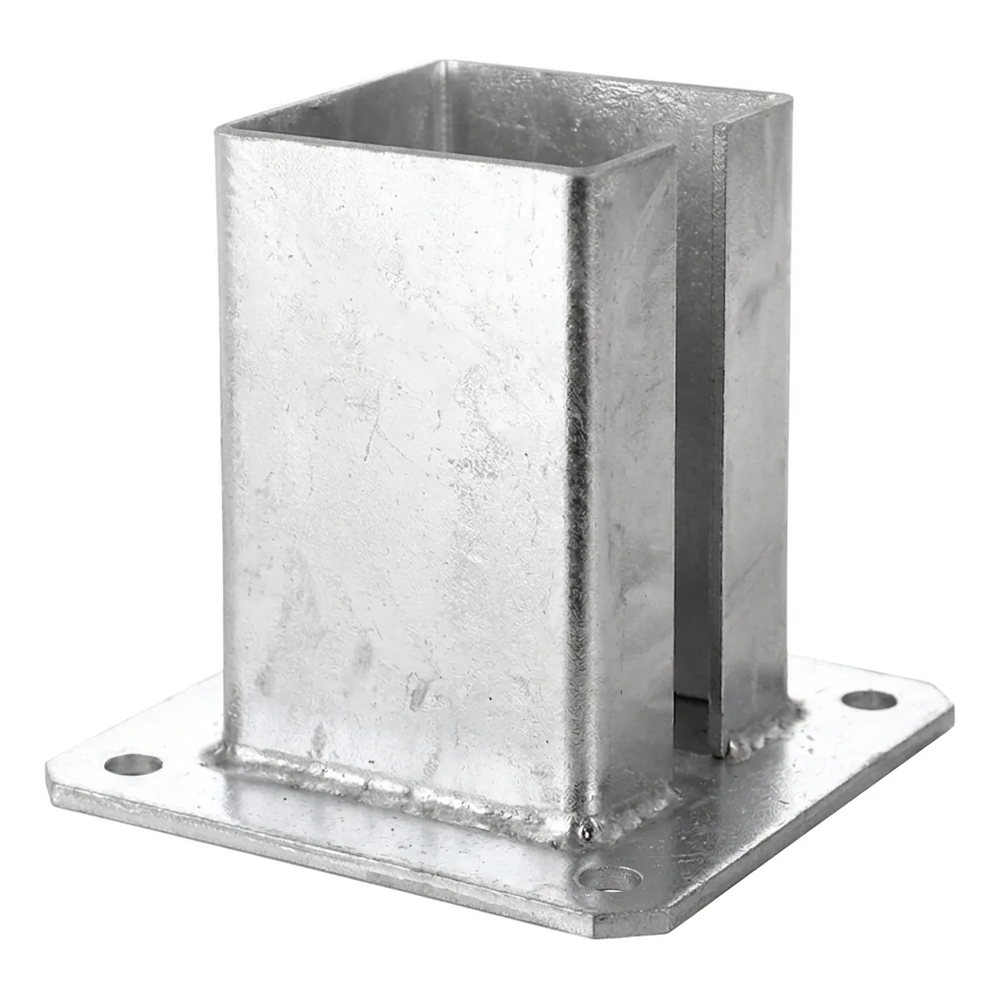

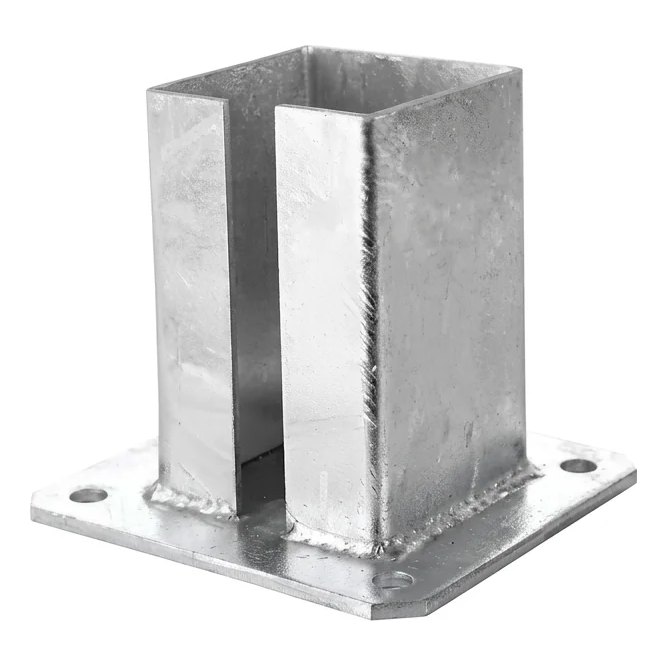

Galvanised Steel Fence Post Base Plate for 100×100 mm Fence and Gate Posts
This steel fence post base plate (foot) for 100×100 mm gate and fence posts is a durable mounting component that allows profile posts to be fixed quickly and securely to concrete surfaces, plinths and other hard-standing substrates. Thanks to its hot-dip galvanised protection, the product offers long-lasting corrosion resistance, even in the most demanding weather conditions.
Solid construction for professional installations
The construction consists of an open square profile welded to a solid mounting plate. The fillet weld at the base of the profile ensures a durable connection and reliable transfer of loads across the entire surface of the plate. The thick steel base provides rigidity and distributes loads evenly onto the substrate. The vertical slot in the profile allows precise fitting and compensation for post tolerances.
Quick installation without welding on site
The mounting holes in the base plate allow the foot to be bolted to concrete using standard mechanical or chemical anchors. This eliminates the need for welding on site — simply drill holes in the substrate, set the anchors and tighten the bolts.
Applications
- Mounting 100×100 mm gate and fence posts to a concrete foundation or floor slab
- Fixing to an existing fence plinth
- Installation on paving blocks and other hard-standing surfaces
- Building pergolas, gazebos, garden play areas and timber fences
- Panel fences, timber fences, sliding gates and swing gates
- Other fence and gate structures according to individual requirements
