Solplanet Battery Module 2.56kWh Ai-Hb 2.56LG G2
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
30.5 kg
Description

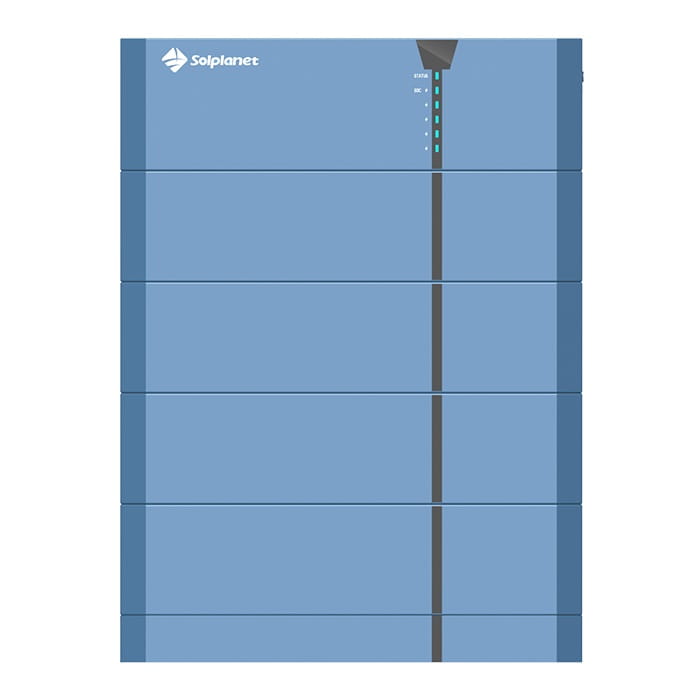

Solplanet Battery Module 2.56kWh Ai-Hb 2.56LG G2
2.56KWH AI-HB 2.56LG G2 battery module for Solplanet energy storage systems
Ai-HB 2.56LG high-voltage battery series that stores energy ranging from 7.5 to 25 kWh.
Safe:
- Utilises LFP technology
- Provides complete BMS protection
- Features easy-to-install modular construction
Reliable:
- IP65 protection rating
- Uses high-quality cells
User-friendly:
- Expandable up to 25.6 kWh (10 modules)
- Multifunctional app available enabling self-consumption, daily grid load balancing and tariff management
- Online monitoring via Solplanet app
Technical Parameters
| Parameter | Value |
|---|---|
| Battery type | HB051050A |
| Cell type | LiFePO4 |
| Battery module weight | 30.5 kg |
| Maximum charging current | 25 A |
| Maximum discharge power | 30 A |
| Efficiency (round-trip) | 97.8% |
| Scalability | Maximum 4 parallel sets |
| Installation location | Indoor / outdoor |
| Mounting type | Floor-standing |
| Communication | CAN |
| Certifications | IEC 62619 / EN 61000IEC 62040 / UN38.3 |
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Operating temperature range [°C] | Charging: 0 ~ 50 Discharging: -20 ~ 50 |
| Storage temperature range [°C] | -20 ~ 45 |
| Cooling type | Convective |
| Tightness class | IP65 |
| Relative humidity [%] | 5~95, without condensation |
| Battery type | HB051050A |
| Number of operating cycles | 6000 cycles |
| Catalogue number | HBM00510025-04-03-100P |
| Usable capacity [kWh] | 2.30 |
| Continuous power [kW] | 1.28 |
| Peak power 10 s [kW] | 2.56 |
| Maximum current [A] | 30 |
| Chemistry | LFP |
| Lifespan [cycles] | 6000 |
| IP rating | 65 |
| Min. charging temp. [°C] | 0 |
| Max. charging temp. [°C] | 50 |
| Min. discharge temp. [°C] | ‑20 |
| Max. discharge temp. [°C] | 50 |
| Min. modules [pcs] | 3 |
| Max modules [pcs.] | 10 |
