Solid square aluminium bar 12×12 mm EN AW-6060 T64, L=2000 mm
0
Description

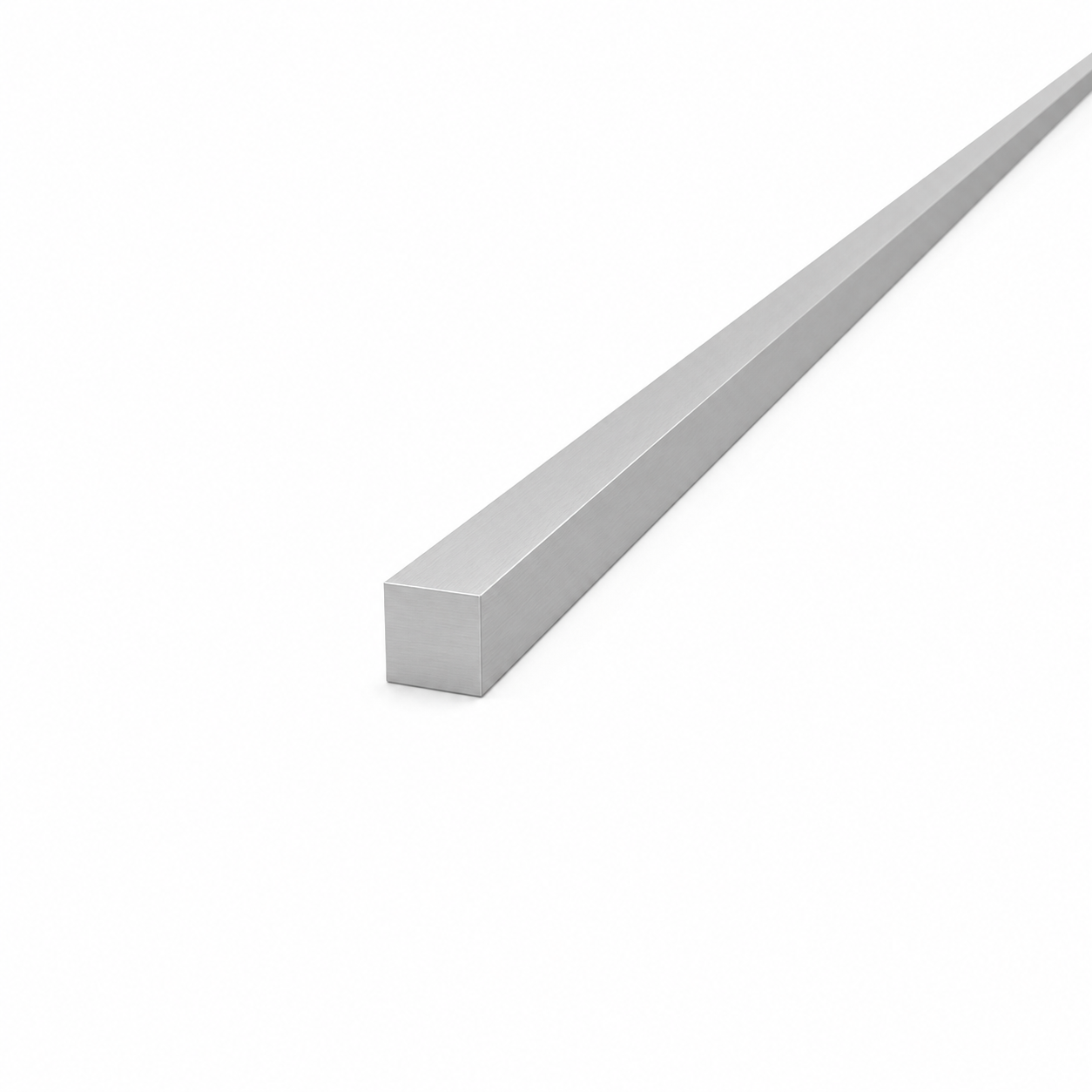

Solid square aluminium bar 12×12 mm EN AW-6060 T64, L=2000 mm
Square aluminium bar 12×12 mm with a solid cross-section, made from alloy EN AW-6060 T64 (PA38 / AlMgSi0.5). A versatile structural element with a length of 2000 mm, ideal for prototype construction, support structures, machine components and general metalwork. Thanks to its raw (non-anodised) surface, the bar can be freely machined — turned, milled and drilled — and subsequently anodised or painted according to project requirements.
The AlMgSi0.5 alloy provides an excellent strength-to-weight ratio combined with very good machinability. Aluminium is naturally corrosion-resistant due to the formation of a protective oxide layer on its surface, eliminating the need for additional corrosion protection in many common applications.
Technical Specification
- Section type: solid square bar

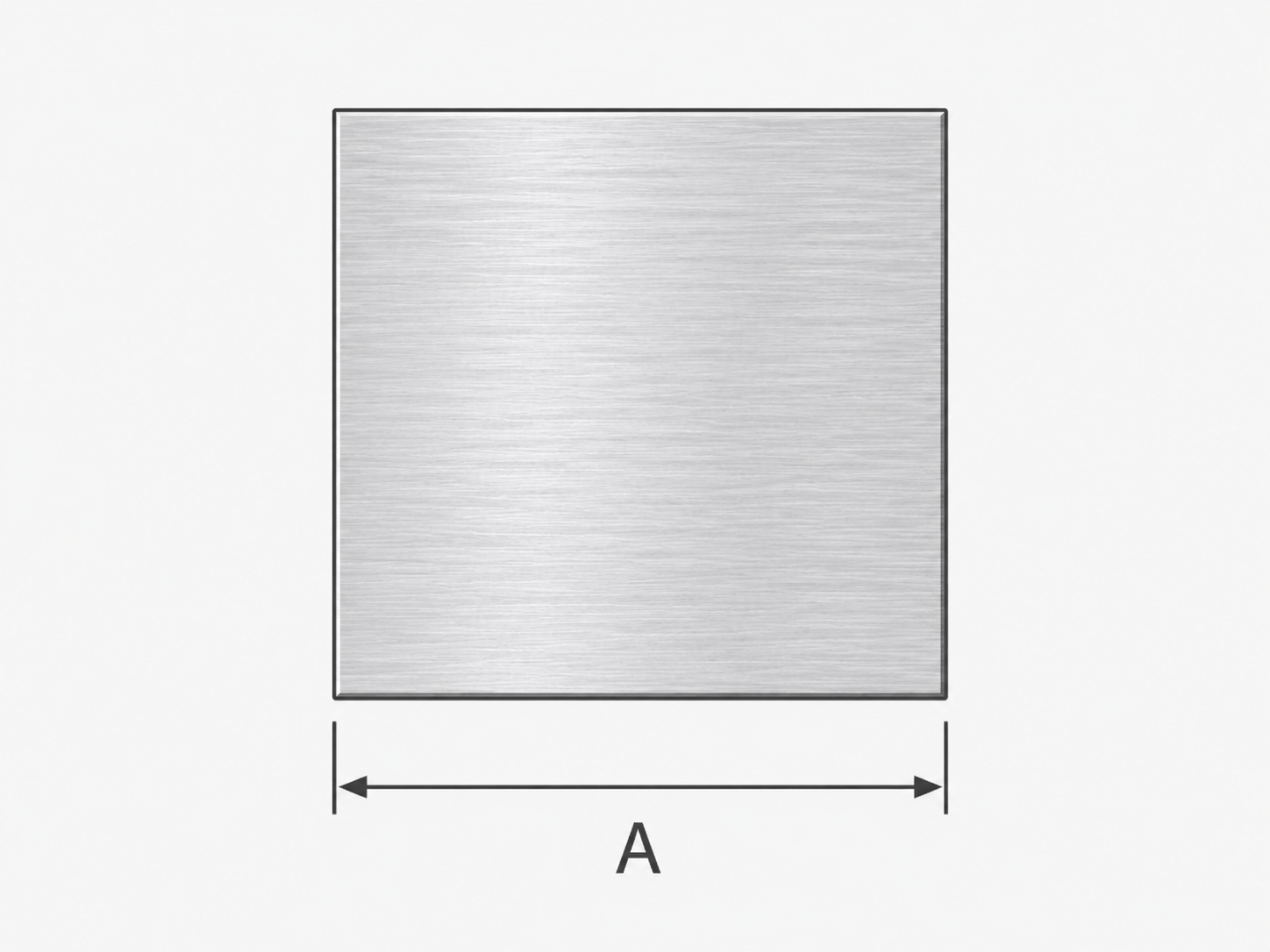

- Side dimension (A): 12 mm
- Dimensions (side × side × length): 12 × 12 × 2000 mm
- Length: 2000 mm
- Weight: 0.78 kg (0.39 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38 / AlMgSi0.5 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Machine parts — shafts and pins with square cross-section
- Support and frame structures
- Metalwork and modelling projects
- Prototype components and DIY projects
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
