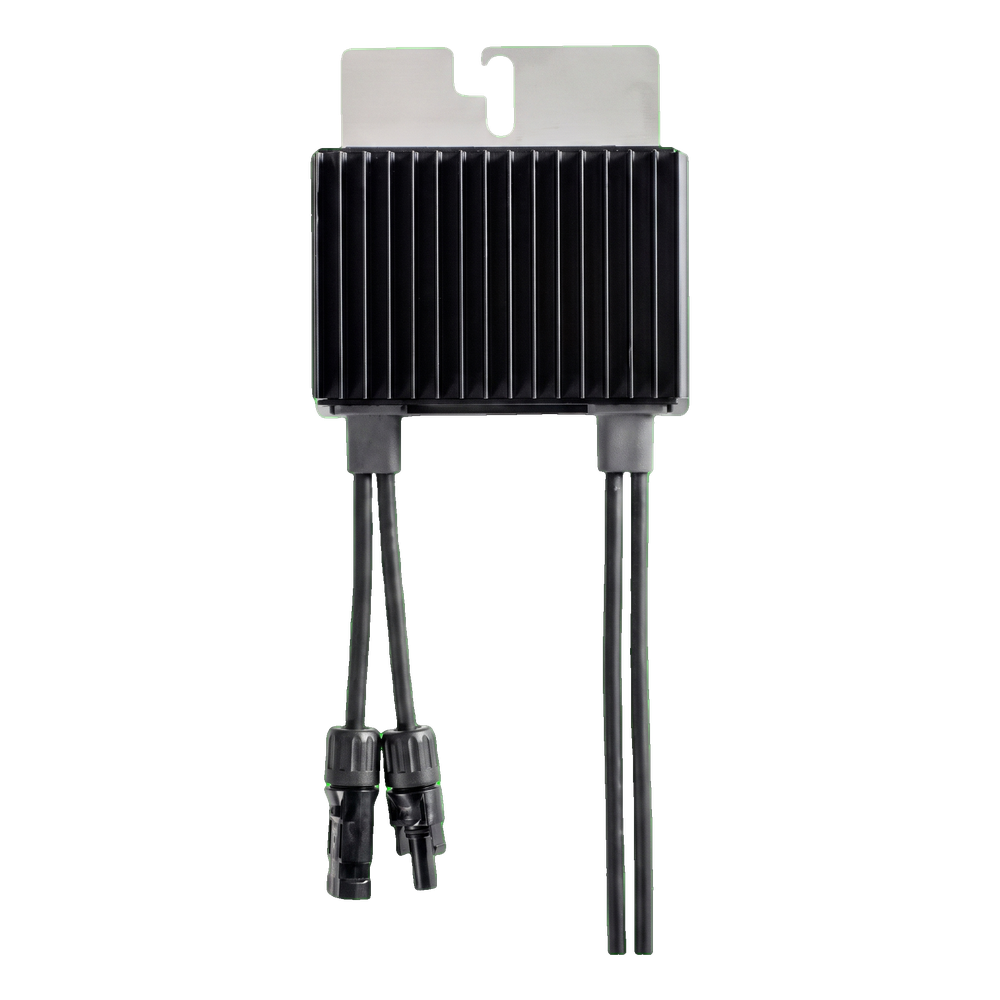

SolarEdge P1100 – PV Power Optimiser with 1.2 m Cable
Description
SolarEdge P1100 – PV Power Optimiser with 1.2 m Cable
SolarEdge P1100 is a power optimiser designed for photovoltaic installations, providing individual maximum power point tracking (MPPT) at the level of each panel. This ensures the installation operates at the highest possible efficiency even under partial shading or uneven sunlight conditions — each module is controlled independently, eliminating the impact of a weaker cell on the entire string.
The optimiser maintains high voltage in the DC circuit, which directly translates into increased efficiency of the SolarEdge inverter. The built-in SafeDC system automatically reduces the circuit voltage to a safe level in the event of grid shutdown, inverter disconnection, or fire detection — thereby meeting fire safety requirements for PV installations.
Monitoring and diagnostics
Each P1100 optimiser sends performance data for its assigned panel to the SolarEdge monitoring platform. The installer and system owner can track the performance of individual modules in real time, quickly identify power drops, and locate potential faults — without the need for a roof inspection.
Technical parameters
- Model: P1100
- Manufacturer: SolarEdge
- Cable length: 1.2 m
- Optimisation: individual MPPT tracking for each panel
- Safety system: SafeDC — automatic DC voltage reduction
- Communication: integrated with the SolarEdge monitoring system
- Connectors: MC4
- Weight: 1.064 kg
- EAN: 5900000027920
Key features
- Individual panel-level MPPT — maximum energy production even under shading
- Maintains high DC voltage in the string — higher inverter efficiency
- SafeDC — automatic voltage reduction to a safe level upon grid or inverter shutdown or in case of fire
- Real-time monitoring of each panel's performance via the SolarEdge platform
- Compact housing with heat sink ensuring effective heat dissipation
- 1.2 m cable with MC4 connectors — ready to connect without additional adapters
Files to download:
Technical data
| Nominal DC input power [W] | 1100 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0,16 / 0,52, 0,9 / 2,95 |
| Output cable length [m] | Horizontal orientation: 2.4 |
| Width [mm] | 162 |
| Length [mm] | 129 |
| Thickness [mm] | 59 |
| Weight [kg] | 1,064 |
