Sofar 10kW 3-Phase Inverter 15.9A 2MPPT DC Switch WiFi Module
Description

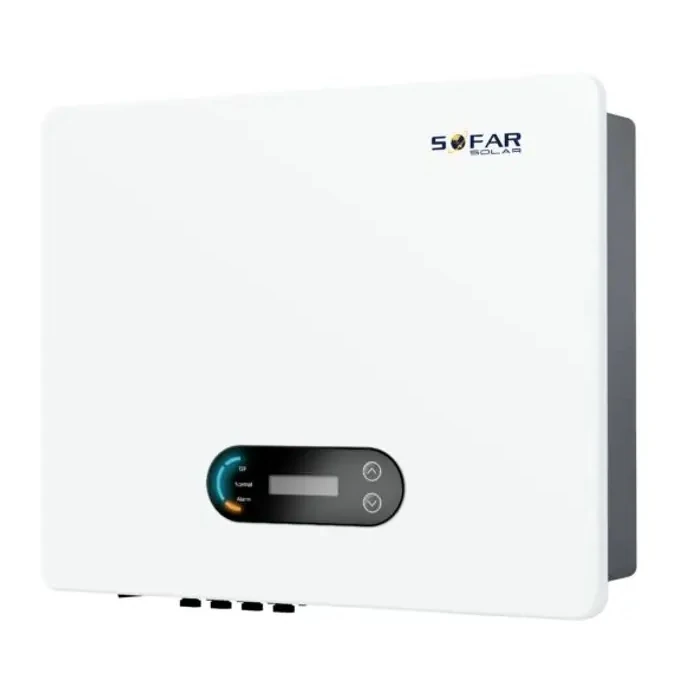

Inverter 10kW 3-Phase 15.9A KTLX-G3 2MPPT DC Switch WiFi Module 11KTLX-G3 SOFAR
Inverter 10kW 3-Phase 15.9A KTLX-G3 2MPPT DC Switch WiFi Module 11KTLX-G3 SOFAR is part of a series of inverters with power ranging from 3kW to 24kW, designed for use in residential photovoltaic installations of various sizes.
Sofar inverters are characterised by high quality, thanks to the use of components from renowned suppliers and a meticulous production process. The product offers reliability and excellent quality at an affordable price, with a 12-year warranty confirming the high quality of Sofar brand devices. The units are equipped with a WiFi module, enabling remote management and monitoring of the installation's operation. Additionally, Sofar inverters feature an aluminium, corrosion-resistant housing with IP 65 protection class, allowing them to be mounted outdoors.
The latest G3 series of Sofar inverters stands out with low start-up voltage, high maximum efficiency and new software with remote update capability.
SPECIFICATION
| Parameter | Value |
|---|---|
| Rated AC power [W] | 10000W |
| Number of phases | 3-Phase |
| Installation type | On-grid |
| Max. output power [VA] | 8800 VA |
| AC output current [A] | 15.9 A |
| AC voltage range [V] | 310Vac-480Vac (according to national standard) |
| Frequency [Hz] | 50Hz/60Hz |
| Frequency range [Hz] | 45Hz-55Hz/54Hz-66Hz (according to national standard) |
| Number of MPP trackers | 2 |
| Start-up voltage [V] | 160 V |
| MPP voltage range [V] | 420 - 850 V |
| Number of DC connections | 1/1 |
| WiFi module | Yes |
| WLAN / Ethernet LAN | NO |
| USB | Yes |
| DC insulation measurement | Yes |
| DC switch | Yes |
| Max. efficiency (PV installation – mains supply) | 98.4 % |
| Dimensions [mm] | 513×425×169 mm |
| Weight [kg] | 17 kg |
| Max. altitude above sea level | 4000 m |
STANDARDS
| Parameter | Value |
|---|---|
| EMC: | EMC: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
| Safety standards: | Safety standards: IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068(1,2,14,30) |
| Grid standards: | Grid standards: AS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21/CEI 0-16, UNE 206 007-1, EN50549, G98/G99, EN50530, NB/T32004 |
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Type | On-grid |
| Power | 6-10 kW |
| Number of phases | Three-phase |
| Number of MPPT | 2 MPPT |
| WiFi | Yes |
| DC switch | Yes |
