Sliding gate trolley package 9-roller + accessories KIT for rail 80

Complete running gear kit for a self-supporting sliding gate, designed for 80×80×5 mm rail. The kit includes all the essential running and entry components to ensure quiet, smooth operation of the gate and significantly extend the service life of the entire mechanism. The maximum load capacity of the kit is 1,000 kg, making it suitable for both residential and industrial gates. All components are galvanised, guaranteeing high corrosion resistance and long-lasting performance in outdoor conditions.

• Kit weight: 21 kg
• Packaging volume: 16,524 cm³
• EAN: 5903313203579
• Rail compatibility: 80×80×5 mm
• Finish: galvanised

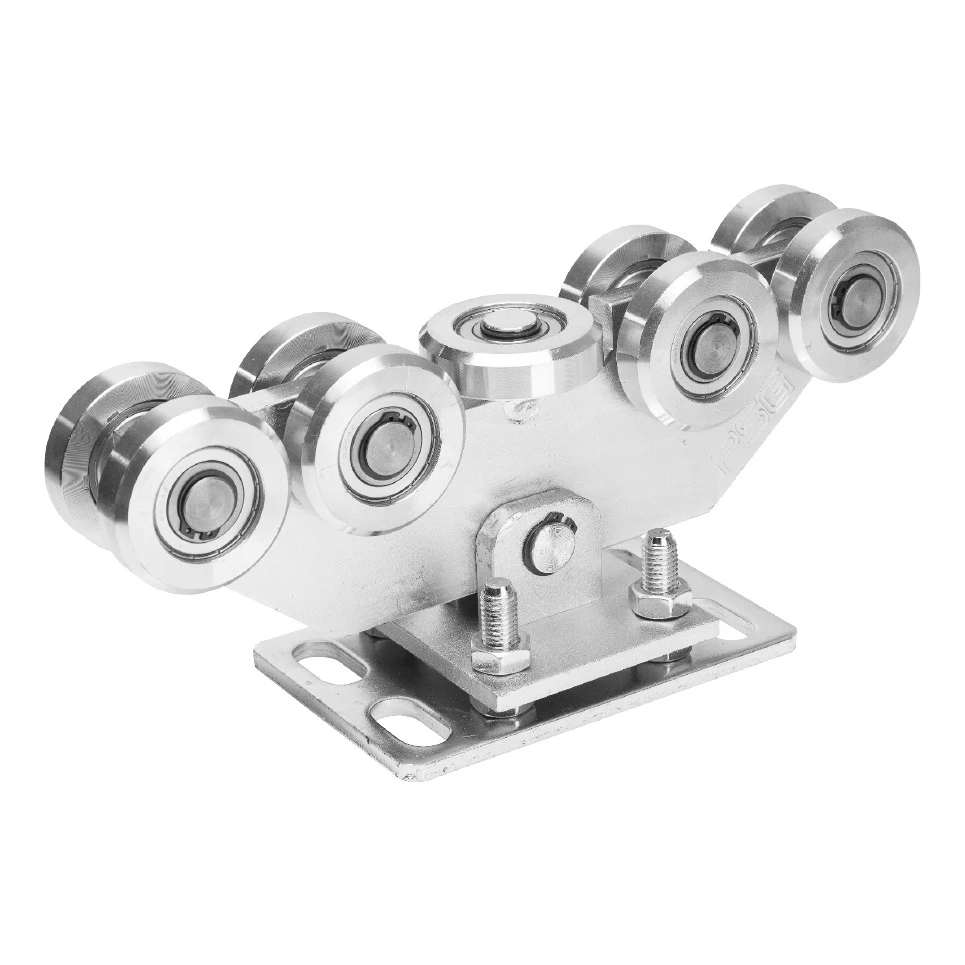

Running Trolley 80 – 9-Roller

The running trolley is fitted with 9 steel rollers with bearings, providing exceptionally smooth and quiet gate movement. The height-adjustable design, using adjustment bolts, allows precise levelling of the gate, resulting in even load distribution and reduced roller wear. Each trolley is designed for a 80×80×5 mm rail and supports loads of up to 1,000 kg.

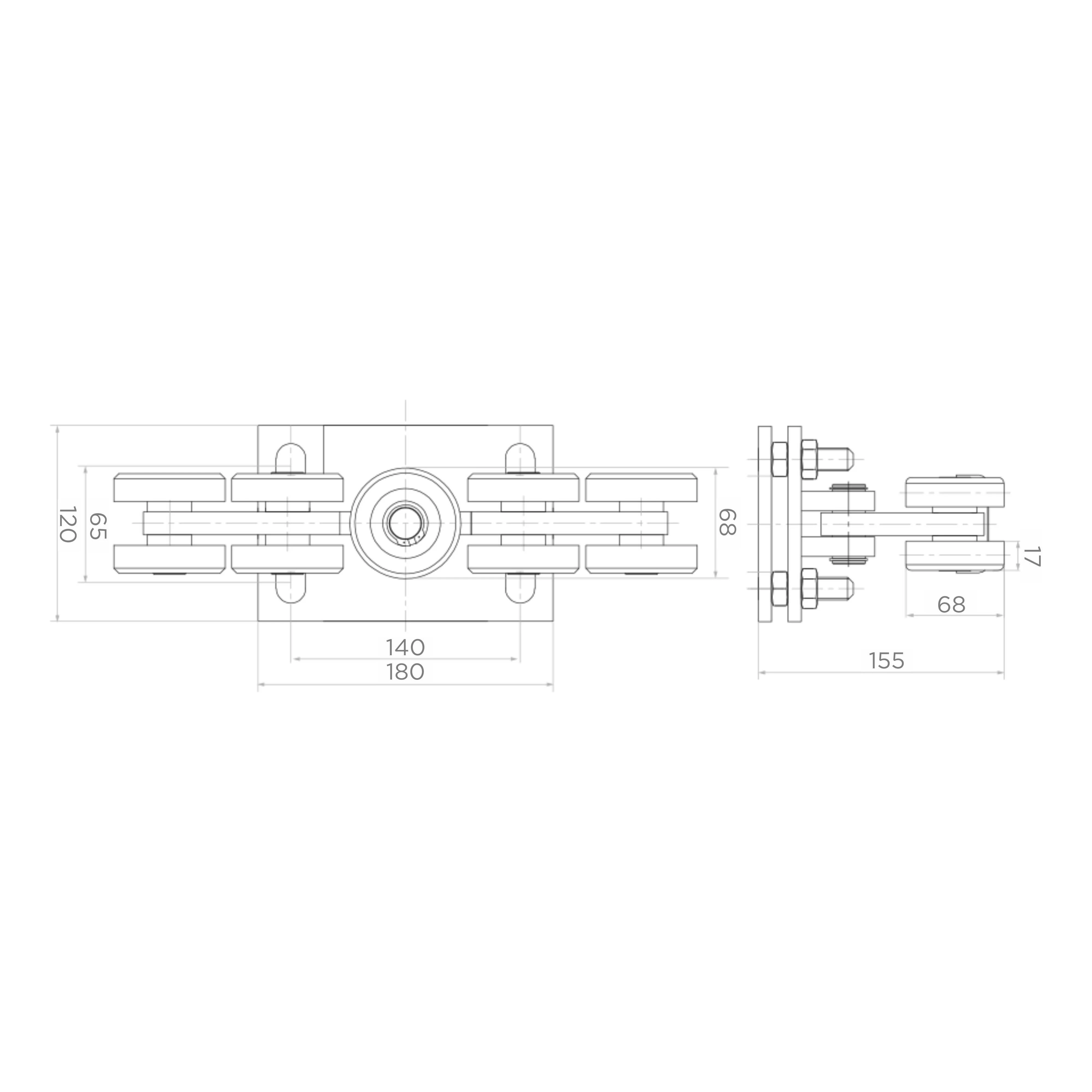

Running Trolley Dimensions:

• Overall width: 180 mm
• Internal width (roller spacing): 140 mm
• Overall height: 120 mm
• Roller axle height: 65 mm
• Depth (lateral length): 155 mm
• Lateral roller height: 68 mm
• Mounting plate thickness: 17 mm
• Roller material: steel
• Height adjustment: bolt-adjustable
• Maximum load capacity: 1,000 kg

Entry Guide Bracket

The steel entry guide bracket plays a key role in stabilising the gate when closed. By distributing the weight of the gate leaf across a greater number of support points, it significantly extends the service life of the running trolleys. The bracket is fitted with two plastic guide rollers that precisely direct the gate during closing. The rear panel features two mounting holes and a rubber buffer to absorb impact.

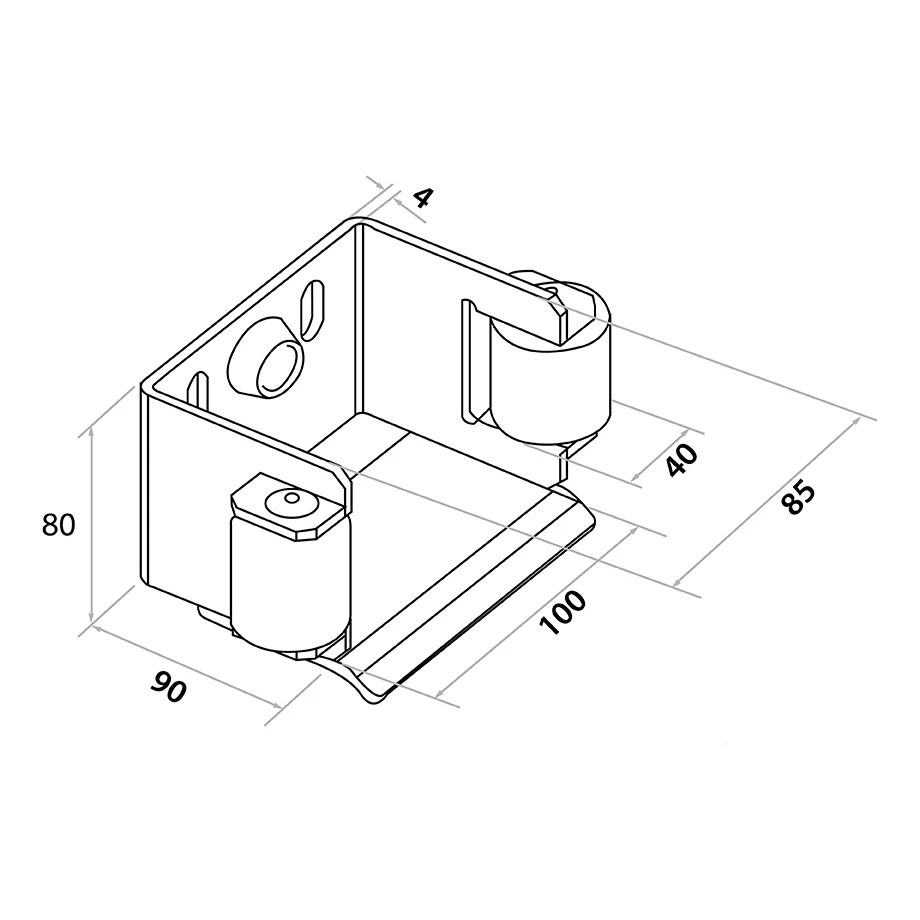

Entry Guide Bracket Dimensions:

• Base width: 90 mm
• Housing height: 80 mm
• Overall height: 85 mm
• Depth: 100 mm
• Roller guide width: 40 mm
• Wall thickness: 4 mm
• Width between guide rollers: 88 mm
• Rail compatibility: 80×80 mm
• Guide rollers: plastic

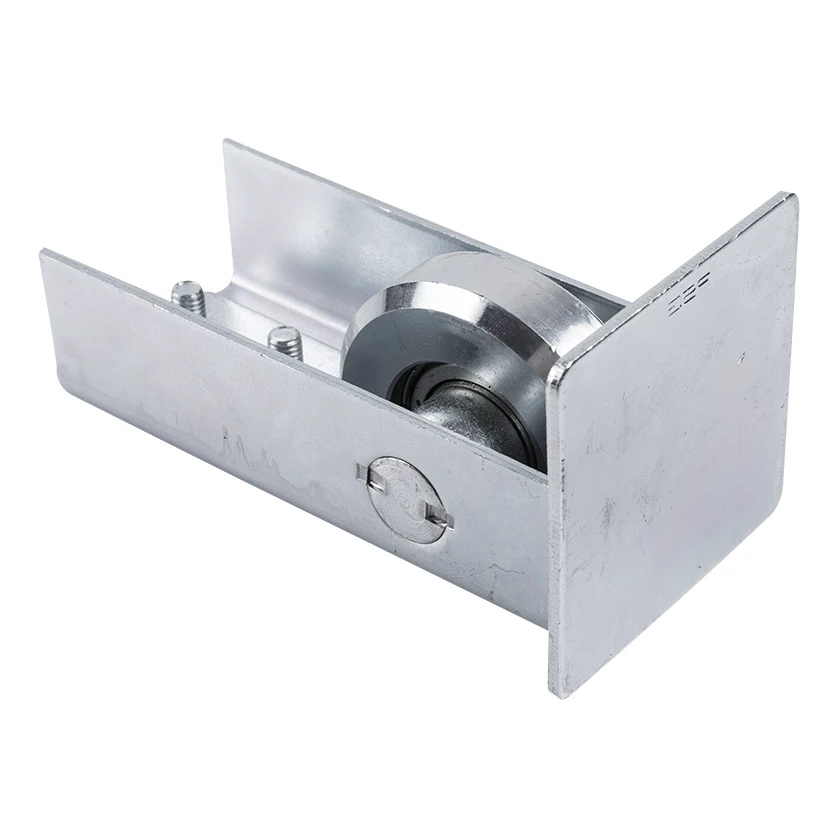

Entry Roller

A steel entry roller mounted at the start of the rail on a self-supporting sliding gate. Its primary function is to extend the service life of the running trolleys by gently guiding the gate onto the track. It also provides protection against snow and ice, which can accumulate on the rail and impede the mechanism. Mounting bolts are included. The roller is compatible with 80×80×5 mm rail.

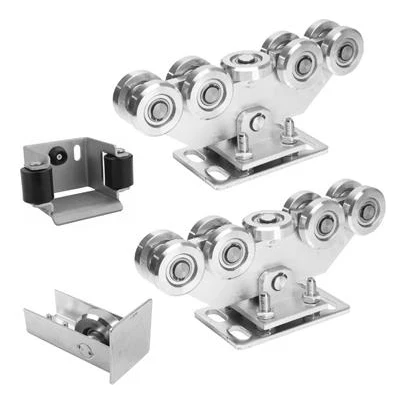

Kit Contents

• Running trolley 80 (9-roller) — 2 pcs.
• Entry guide bracket — 1 pc.
• Entry roller — 1 pc.
