  • Self-Drilling Screw DIN 7504 K 4.8x19 mm – Stainless Steel A2, Hexagonal Flange Head 001-923 (1)
  • Self-Drilling Screw DIN 7504 K 4.8x19 mm – Stainless Steel A2, Hexagonal Flange Head 001-923 (2)

Self-drilling screw DIN 7504 K 4.8x19 mm A2 stainless steel hex head with flange pack of 500

Go to Product feedback

Self-drilling screw DIN 7504 K, stainless steel A2 (AISI 304), hexagonal flange head SW8. Diameter 4.8 mm, length 19 mm, head diameter 10.5 mm. Drilling range 1.75–4.4 mm. For metal and aluminium sheets.

Go to full description
with VAT without VAT
Price €20.81
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] Śruby i wkręty #38

  • Thread type ST4,8
  • DIN DIN 7504
  • Length [mm] 19
  • Steel Grade A2

Description

Self-Drilling Screw DIN 7504 K 4.8x19 mm – Stainless Steel A2, Hex Head with Flange

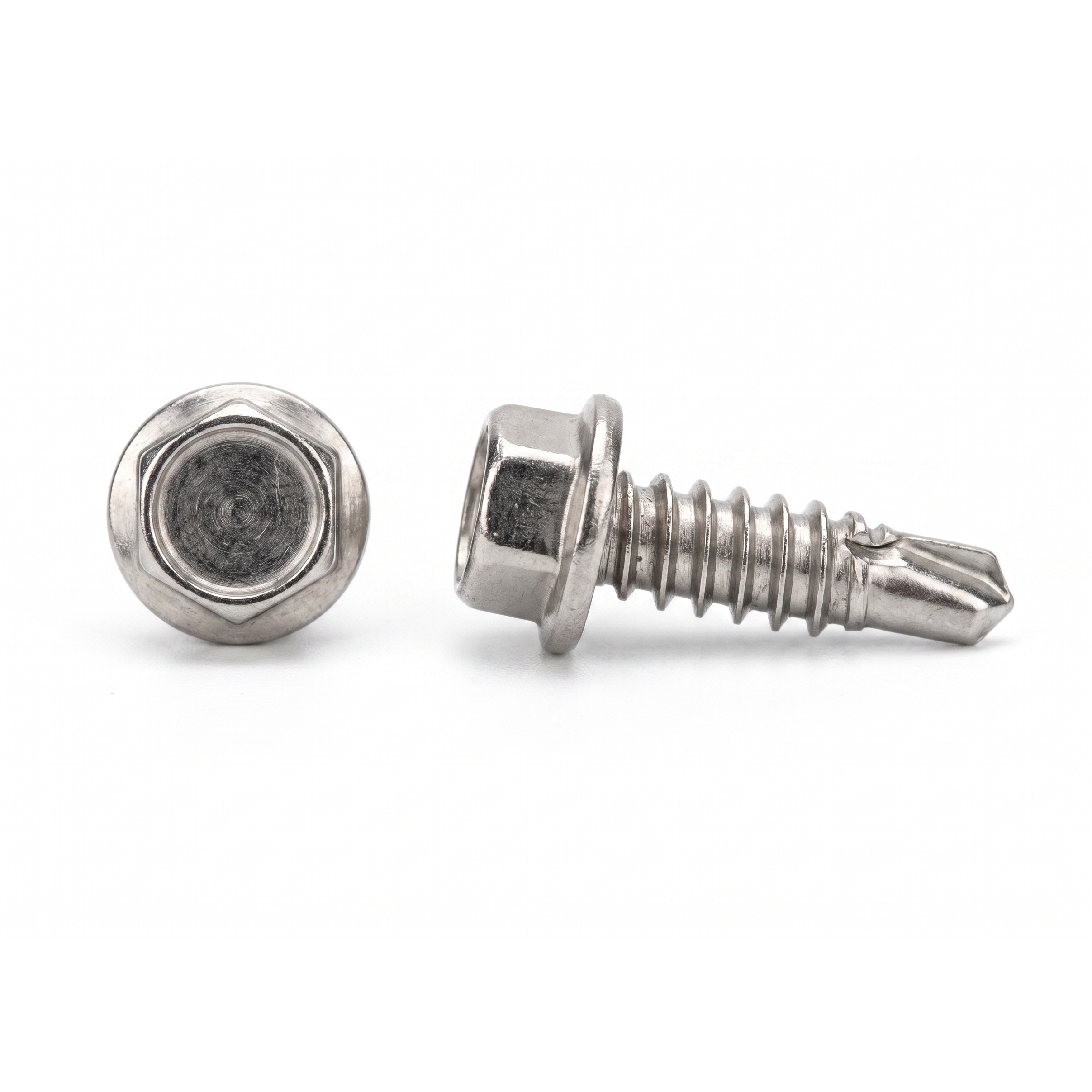

Self-drilling screw DIN 7504 K 4.8x19 mm in stainless steel A2 – side and top view of hex head with flange
Self-drilling screw DIN 7504 K 4.8x19 mm in stainless steel A2 – side and top view of hex head with flange

Self-drilling screw 4.8×19 mm in stainless steel A2 with a hex head with flange, conforming to standard DIN 7504 K (~ISO 15480). Thanks to the integrated drill point, it eliminates the need for pre-drilling, significantly reducing assembly time when working with aluminium sheets and profiles.

Stainless steel A2 (AISI 304) provides high corrosion resistance, making this screw an ideal fastener for outdoor applications — installation of photovoltaic structures, façades, sheet metal work and ventilation systems. The head flange increases the bearing surface and protects the sheet from pull-through.

Application and Drilling Range

The screw is designed for direct fastening into aluminium sheets with a thickness of 1.75 to 4.4 mm — without the need for pre-drilling. The hex head allows rapid installation using a socket wrench or power driver with an SW8 bit.

Dimensional drawing of self-drilling screw DIN 7504 K – side view with dimension labels (k, l, dp, d, P) and top view of head (dc, e)
Dimensional drawing of self-drilling screw DIN 7504 K – side view with dimension labels (k, l, dp, d, P) and top view of head (dc, e)

Technical Specifications

  • Nominal diameter: 4.8 mm
  • Nominal length: 19 mm
  • Head diameter: 10.5 mm
  • Head height: 4.3 mm
  • Wrench size: SW8
  • Drilling range (aluminium sheet thickness): 1.75–4.4 mm
  • Material: stainless steel A2 (AISI 304)
  • Head type: hex with flange
  • Standard: DIN 7504 K (~ISO 15480)
  • Bulk pack quantity: 500 pieces

Benefits for the Installer

  • No pre-drilling required — the self-drilling tip eliminates an additional assembly step
  • Fast installation — SW8 hex head enables work with a power driver and socket bit
  • Corrosion resistance — stainless steel A2 guarantees durability in outdoor conditions
  • Clamping flange — increased bearing surface protects the sheet from damage
  • Pack of 500 — economical bulk packaging for larger installation projects
