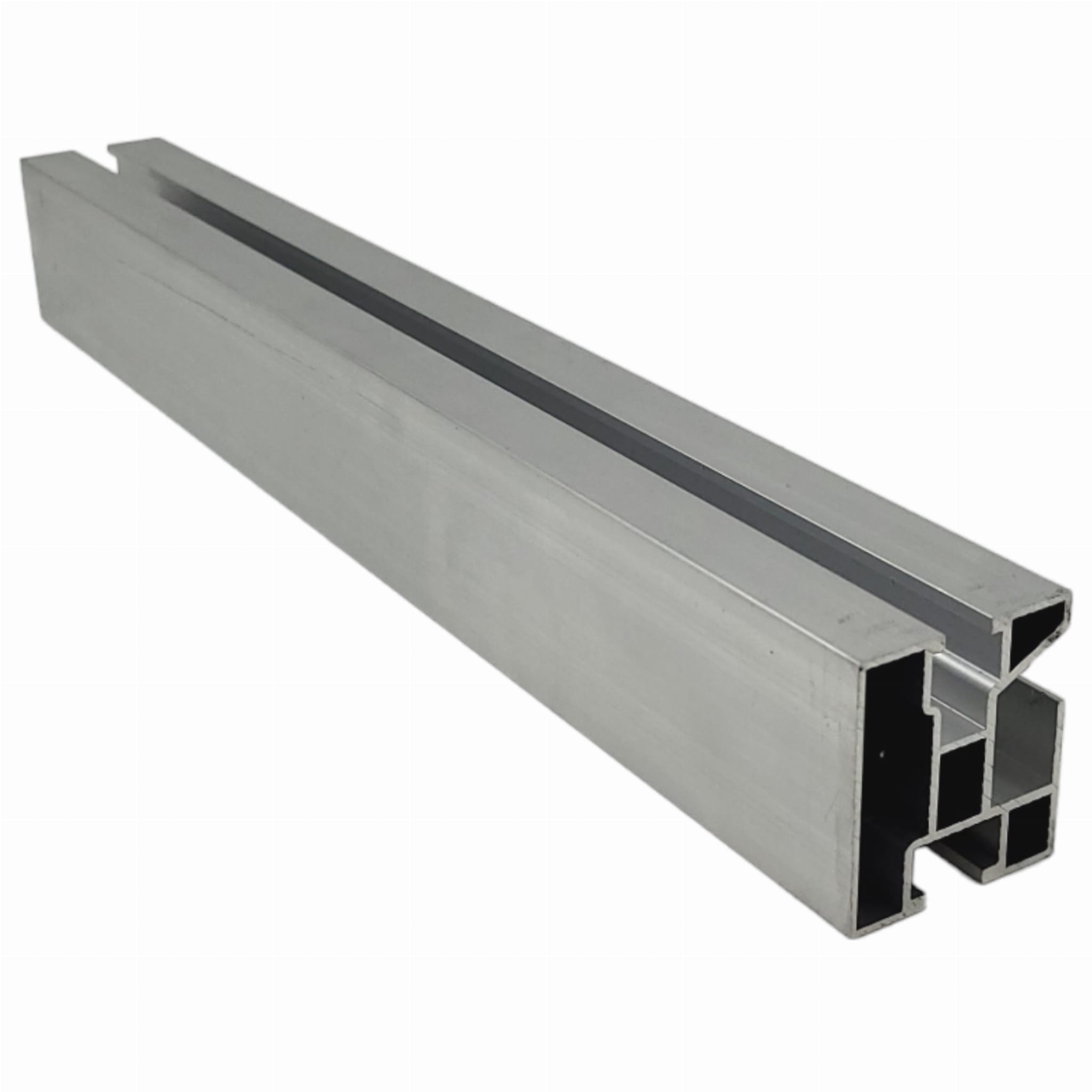

Aluminium Profile 240cm 45x40 with Cable Channel 90509
Leave feedback on the product
Mounting rail 45x40x240cm made of aluminium 6060 for photovoltaic panels. Upper channel for mid and end clamps, lower for adapters and roof hooks, additional cable channel. Mounting on M10 screw and M8 slot nut.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
Main parameters
- Coating type Raw
- Mounting type Hex bolt
- Cross-section 45x40
- Length [cm] 240
- Cable channel Yes
[PIM] Profile montażowe #6
- Length [mm] 2400
- Profile [mm] 45×40
- Finish Natural
Description
Aluminium profile 240cm 45x40 with cable channel 90509
Mounting profile 45x40x240cm made of Aluminium 6060 for hexagon bolt DIN 933 M10 with additional cable channel, for photovoltaic modules.
The mounting profile is suitable for installing photovoltaic panels with mid and end clamps. The clamps are fixed to the upper channel of the profile rail. The lower rail channel enables mounting of the profile on adapters, roof hooks or triangles. The additional cable channel can facilitate hiding and protecting cables, which contributes to the aesthetic appearance of the installation.
- Installation is carried out using M10 hexagon bolts and M8 sliding T-nuts.
- Mounting profiles with dimensions of 4.5x4 cm for hexagon bolts are made of high-quality aluminium 6060.
- The length of the profiles can be extended using profile connectors available separately.
