Schneider Electric Overcurrent circuit breaker C 25A 1P 6kA
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.15 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

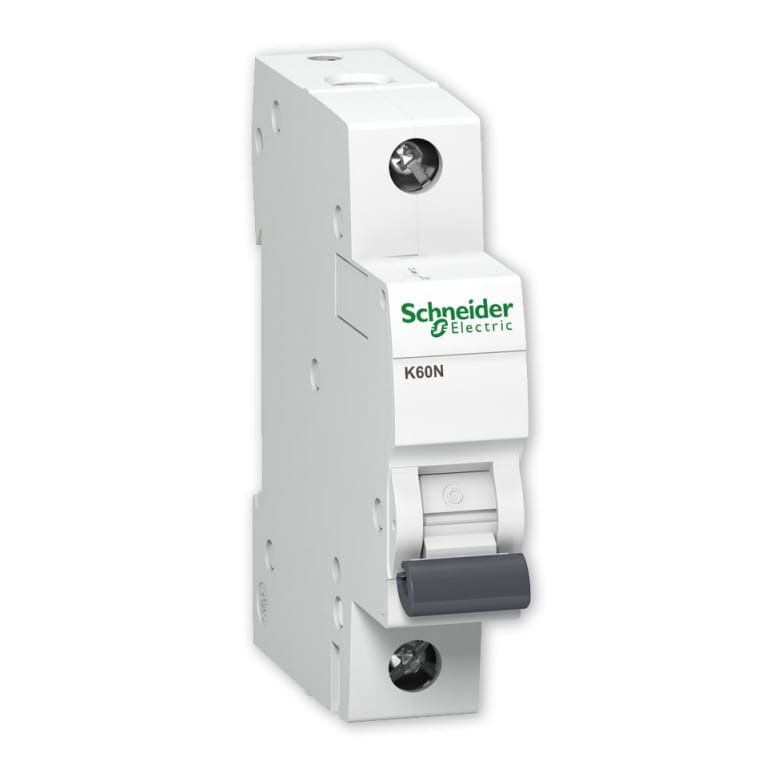

Schneider Electric Overcurrent circuit breaker C 25A 1P 6kA
Overcurrent circuit breaker K60N-C25-1 by Schneider Electric is a reliable safety device from the Acti9 series.
Single-pole, with a rated current of 25A and C characteristics, it effectively protects electrical installations against short circuits and overloads. With a short-circuit strength of 6kA, it is ideal for residential applications, offering complete and reliable protection.
Key features and functions:
- Installation protection: Protects against the effects of short circuits and overloads.
- Acti9 series: Part of a family of modern protection devices.
- Double terminals: Allows connection of bus and cable, crimped for secure connection.
- Snap contact: Provides fast and operator-independent contact closure.
- Adaptation to residential construction: Ideal for creating complete security sets.
Applications:
- Electrical installations in residential buildings
- Protection of medium load circuits
- Protection of power supply lines for larger equipment
- Part of a comprehensive electrical protection system
Advantages:
- Reliability: High quality workmanship guarantees long-lasting protection.
- Ease of installation: Double clamps make installation easier and connections more secure.
- Compatibility: Fits standard electrical distribution boards.
- Safety: Effective protection against overloads and short circuits.
Characteristics C:
- Suitable for protecting circuits with equipment with medium inrush currents.
- Typical applications: motors, transformers, larger domestic appliances.
SPECIFICATION
Manufacturer
SCHNEIDER ELECTRIC
Electroclub
YEs
Series
K60N
Characteristics
C
Rated voltage [V]
440 V
Rated current [A]
25A
Frequency
50/60 Hz
Mounting
DIN rail
Switching capacity [kA]
6kA
Number of poles
1
Number of modules
1
Type of network
Alternating current (AC)
Trigger technology
Thermomagnetic
Breaking capacity
6000 A Icn according to EN/IEC 60898-1 -230 V alternating current (AC) 50/60 Hz
Rated insulation voltage [Ui]
440 V AC 50/60 Hz in accordance with EN/IEC 60898-1
Rated withstand shock voltage [Uimp]
4 kV in accordance with EN/IEC 60898-1
Mechanical endurance
20 000 x
Electrical life
10 000 x
Degree of protection
IP20
Packing weight
1,332 kg
Packing length
22 cm
Packing height
8 cm
Package width
8,5 cm
Additional information
Wide range of additional accessories
Available Configuration
Files to download:
Technical data
| Trip characteristic | C |
| Circuit breaker type | overcurrent |
| Rated current [A] | 25A |
| Number of poles | 1P |
| Breaking capacity [kA] | 6 kA |
| Brand | SCHNEIDER ELECTRIC |
