Round tube insert Ø 25 mm, black
Leave feedback on the product
Push-in round tube insert Ø 25 mm, black. Profile wall thickness 1.0–2.0 mm. Outer part height 4.2 mm, inner part height 13.0 mm. Core dimension 17.6 mm, fin dimension 23.4 mm. Weight 0.003 kg.
Product code: 002-579
Description
Round tube insert Ø 25 mm, black
Round tube insert Ø 25 mm in black is a push-in finishing component that closes the open end of a tubular profile. It is well suited to tubular structures, frames and racks where a neat and safe profile end is required.

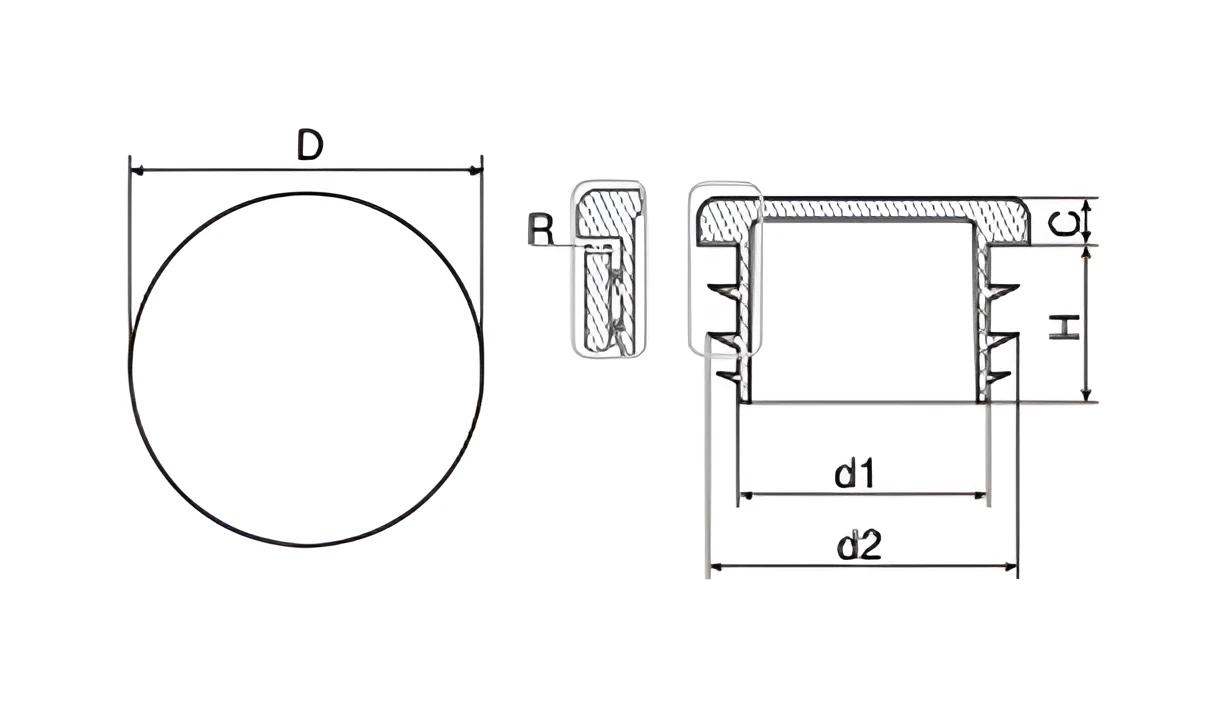

The insert consists of an inner part with fins, which goes inside the tube, and an outer part, which sits flush against the end face of the profile once fitted and covers its edge. It is designed for profiles with a wall thickness in the range of 1.0–2.0 mm, so it can be used in tubes with different wall thicknesses.
Installer applications
- protecting the open ends of round tubes in support structures and frames
- neat finishing of visible profile ends
- closing the inside of the tube, which limits the ingress of contaminants into the profile
Push-in inserts of this type are selected according to the outer diameter and wall thickness of the profile, so before ordering it is worth measuring the tube and comparing the dimensions with the specification sheets. The product is sold per piece, which allows you to order exactly as many inserts as a given project requires, and its size means it qualifies for shipping as a small parcel.
