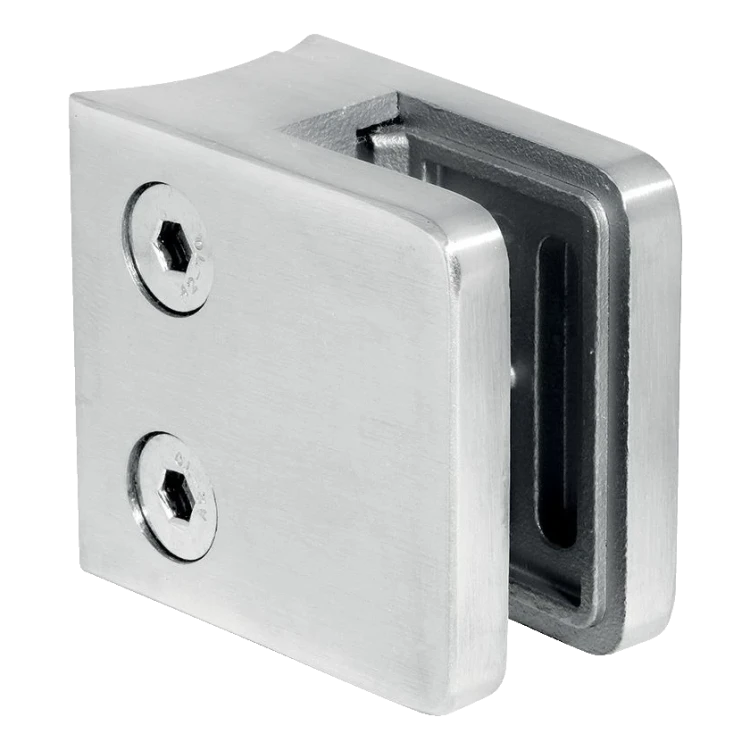

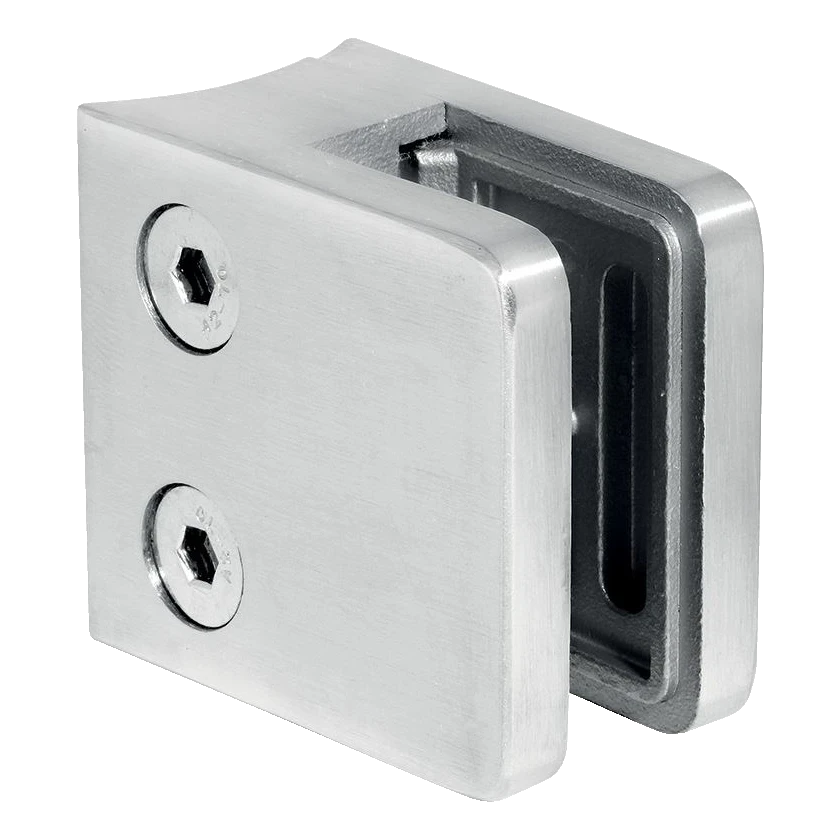

Rectangular glass clamp 45x45x26 mm. glass 6-10.76 mm, AISI 304, system 42.4 mm, polished finish
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.17 kg
Description
Glass Clamp 45x45 mm AISI 304 – O42.4 mm Tube System, Polished
Rectangular glass clamp 45×45×26 mm in AISI 304 stainless steel with a polished (mirror) finish. Designed for securing glass panels with a thickness of 6 to 10.76 mm onto tubular posts with a diameter of O42.4 mm. Its robust construction and elegant finish make this clamp an excellent choice for glass balustrades, partitions, and both interior and exterior glazed structures.
Features and Benefits
- Screw-in installation — fast and repeatable on site
- Rubber inserts provide secure glass retention without risk of scratching
- Polished / mirror finish — a sleek, refined look for the completed installation
- AISI 304 stainless steel — high resistance to corrosion

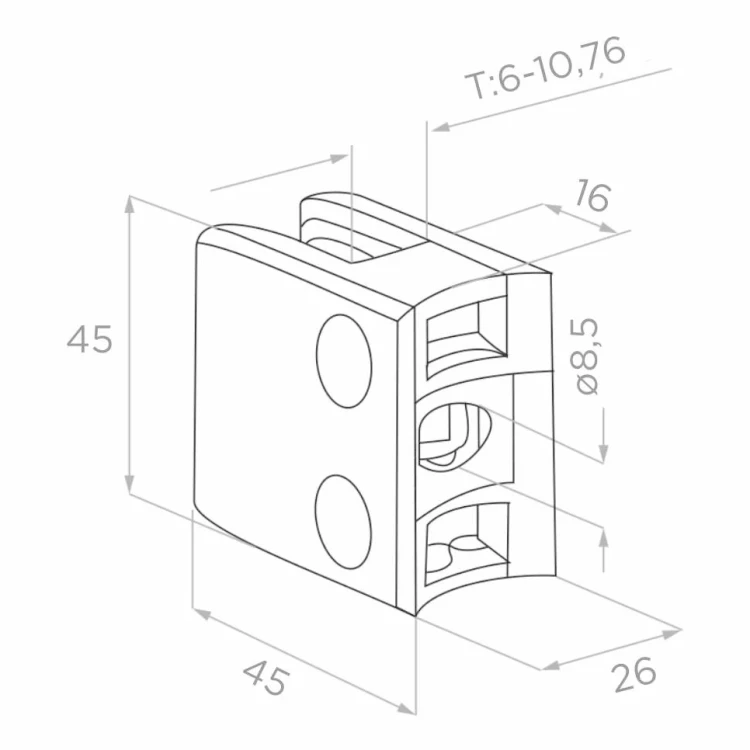

Technical Specification
- Dimensions (L × H × W): 45 × 45 × 26 mm
- Glass thickness: 6–10.76 mm
- Mounting tube diameter: O42.4 mm
- Mounting hole diameter: O8.5 mm
- Clamp jaw depth: 16 mm
- Material: AISI 304 stainless steel
- Finish: polished (mirror)
- Fixing method: screw-in
- Weight: 0.16 kg
- EAN: 5901289670128
Additional Information
- The clamp requires rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen-head screws allow clamping pressure adjustment without removing the clamp
Loading...
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
