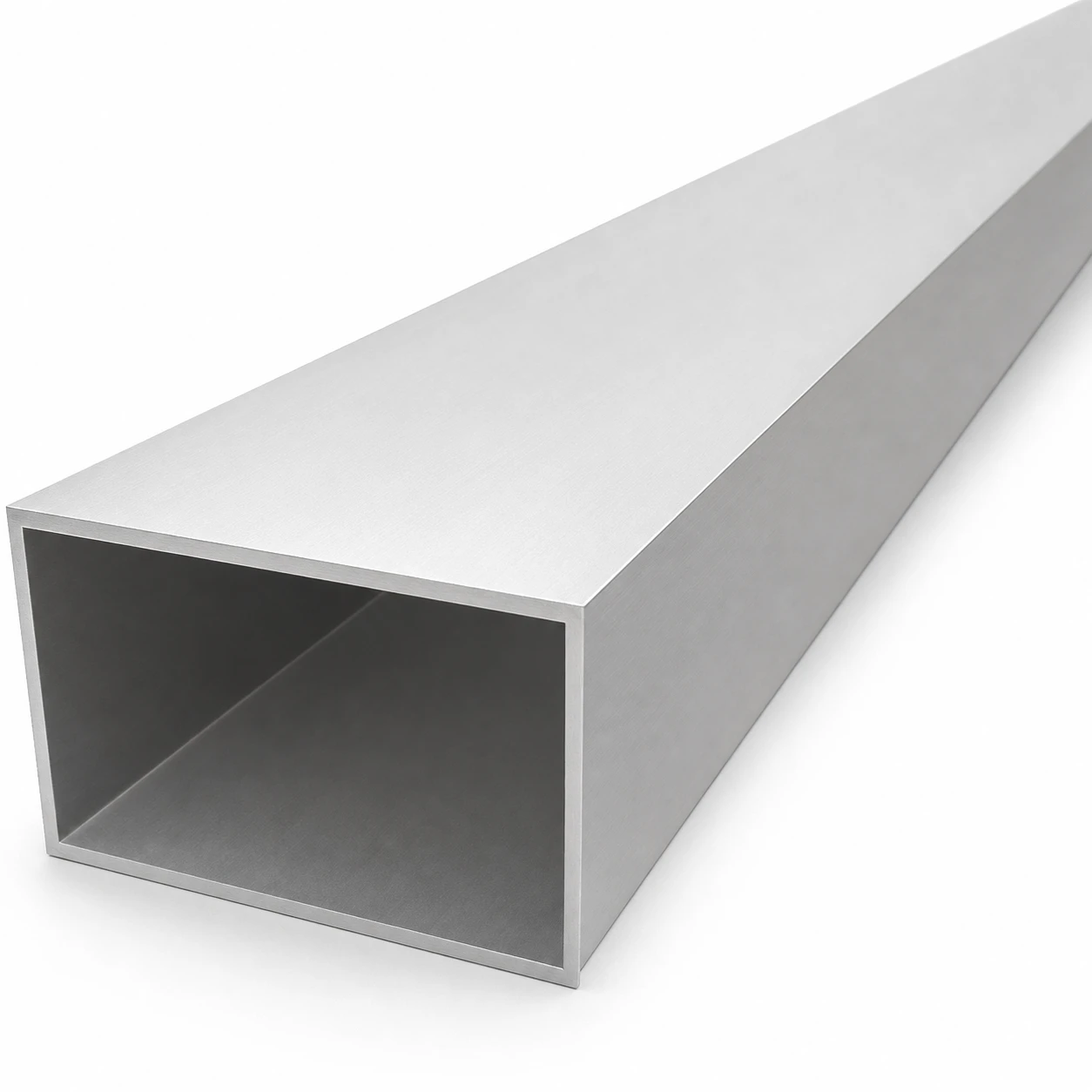

Rectangular aluminium tube 50×80×2 mm – closed profile EN AW-6060, L=2000 mm
Leave feedback on the product
Rectangular aluminium tube EN AW-6060 T6/T66, 50×80×2 mm, L=2000 mm. Weight 2.78 kg (1.39 kg/m). Alloy AlMgSi0.5 / PA38. Raw, non-anodised surface. For structures, balustrades, frames and furniture.
Product code: 001-635
Product features
[PIM] profile-prostokatne #145
- Material Aluminium
- Shorter side [mm] 50
- Longer side [mm] 80
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Rectangular aluminium tube 50×80×2 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 50×80×2 mm is a sturdy closed profile with a length of 2000 mm, made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). The combination of low self-weight, high rigidity and natural corrosion resistance makes it suitable wherever structural durability and material efficiency are required — from frames and mounting structures to balustrades and handrails, as well as furniture and decorative elements.
The raw (non-anodised) surface of the profile allows for further processing — anodising, powder coating or painting — in line with the requirements of a specific project. Grade 6060 aluminium is easy to cut, drill, bend and join, enabling the profile to be efficiently adapted to individual needs on site or in the workshop.
Technical Specification
- Cross-section: closed rectangular tube
- External width (A): 50 mm
- External height (B): 80 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (w × h × l): 50 × 80 × 2000 mm
- Weight: 2.78 kg (1.39 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails and fencing
- Machine and equipment frames and supports
- Furniture and decorative elements
- Model making and DIY projects
The profile is available in a range of cross-sectional dimensions and wall thicknesses, making it straightforward to select the optimum variant for a specific structure.
