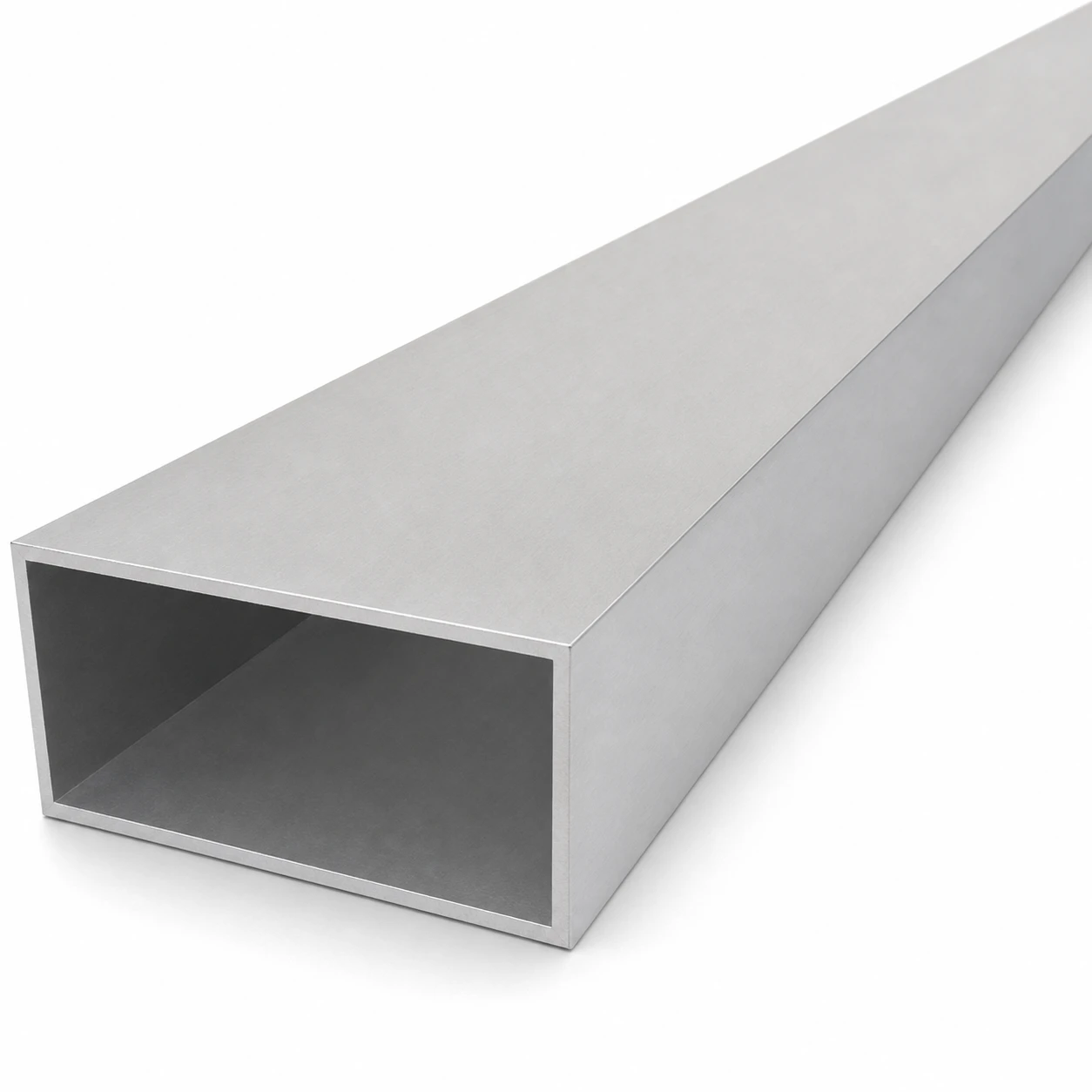

Rectangular aluminium tube 40×80×2 mm – closed profile EN AW-6060, length 2000 mm
0
Description
Rectangular aluminium tube 40×80×2 mm – closed profile EN AW-6060, length 2000 mm
Rectangular aluminium tube 40×80×2 mm is a versatile closed profile made from aluminium alloy EN AW-6060 T64 (PA38 / AlMgSi0.5). Thanks to its excellent strength-to-weight ratio and natural corrosion resistance, this profile is ideal wherever lightweight construction and ease of fabrication are required — from frames and mounting structures, to balustrades and handrails, to aluminium structures in photovoltaics and construction.
The rectangular cross-section of 40×80 mm provides high rigidity at a low self-weight of just 2.51 kg per 2-metre length. The profile is easy to cut, drill, bend and join — reducing assembly time and helping to lower project costs.
Dimensions and Technical Specifications
- Cross-section: closed rectangular tube
- External width (A): 40 mm
- External height (B): 80 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Overall dimensions (W × H × L): 40 × 80 × 2000 mm
- Weight: 2.51 kg (1.253 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38 / AlMgSi0.5 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and mounting frames
- Balustrades, handrails and fencing
- Frames, shelving and furniture
- Decorative and finishing elements
- Support structures in photovoltaic installations
- Modelling and DIY projects
The AlMgSi0.5 (EN AW-6060) alloy in the T64 temper combines good mechanical strength with high ductility, making it easy to work with on site. The raw surface allows for further finishing — anodising, powder coating, or leaving untreated in non-aggressive environments. The profile is available in a range covering many cross-section sizes and wall thicknesses, enabling flexible selection to suit individual structural requirements.
