Rectangular aluminium tube 40×60×4 mm EN AW-6060 – length 2000 mm
0
Description
Rectangular aluminium tube 40×60×4 mm EN AW-6060 – length 2000 mm

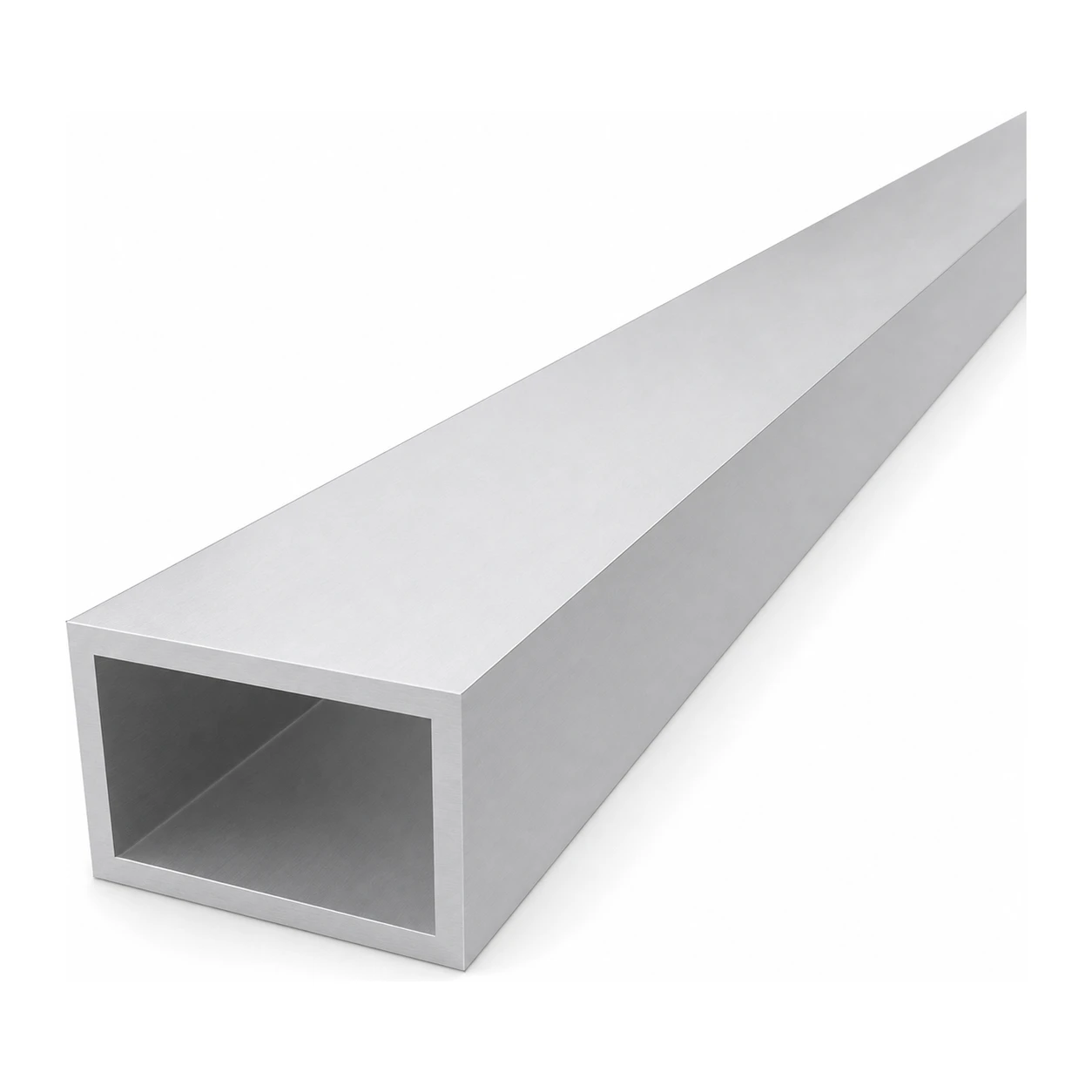

Rectangular aluminium tube 40×60×4 mm is a robust closed-section profile with a rectangular cross-section, made from aluminium alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio, it serves as a versatile structural element — suitable for frames and load-bearing structures as well as balustrades, handrails, and decorative components.
The profile, with a length of 2000 mm, is ready for further processing — it can be easily cut, drilled, bent, and mechanically joined. The raw (unanodised) aluminium surface provides natural corrosion resistance whilst allowing any finishing treatment: anodising, powder coating, or painting.
Dimensions and technical specification
- Section type: closed rectangular tube
- External width (A): 40 mm
- External height (B): 60 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Dimensions (W × H × L): 40 × 60 × 2000 mm
- Weight: 3.98 kg (1.99 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (unanodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Machine frames and enclosures
- Furniture components and interior fittings
- Decorative elements and modelling
The profile is available as part of a product range — in many cross-section size and wall thickness variants, allowing the optimum section to be selected for the structural requirements of any given project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 4 |
| Length [mm] | 2000 |
| Height [mm] | 60 |
