Rectangular aluminium tube 40×60×2 mm – closed profile EN AW-6060, length 2000 mm
0
Description

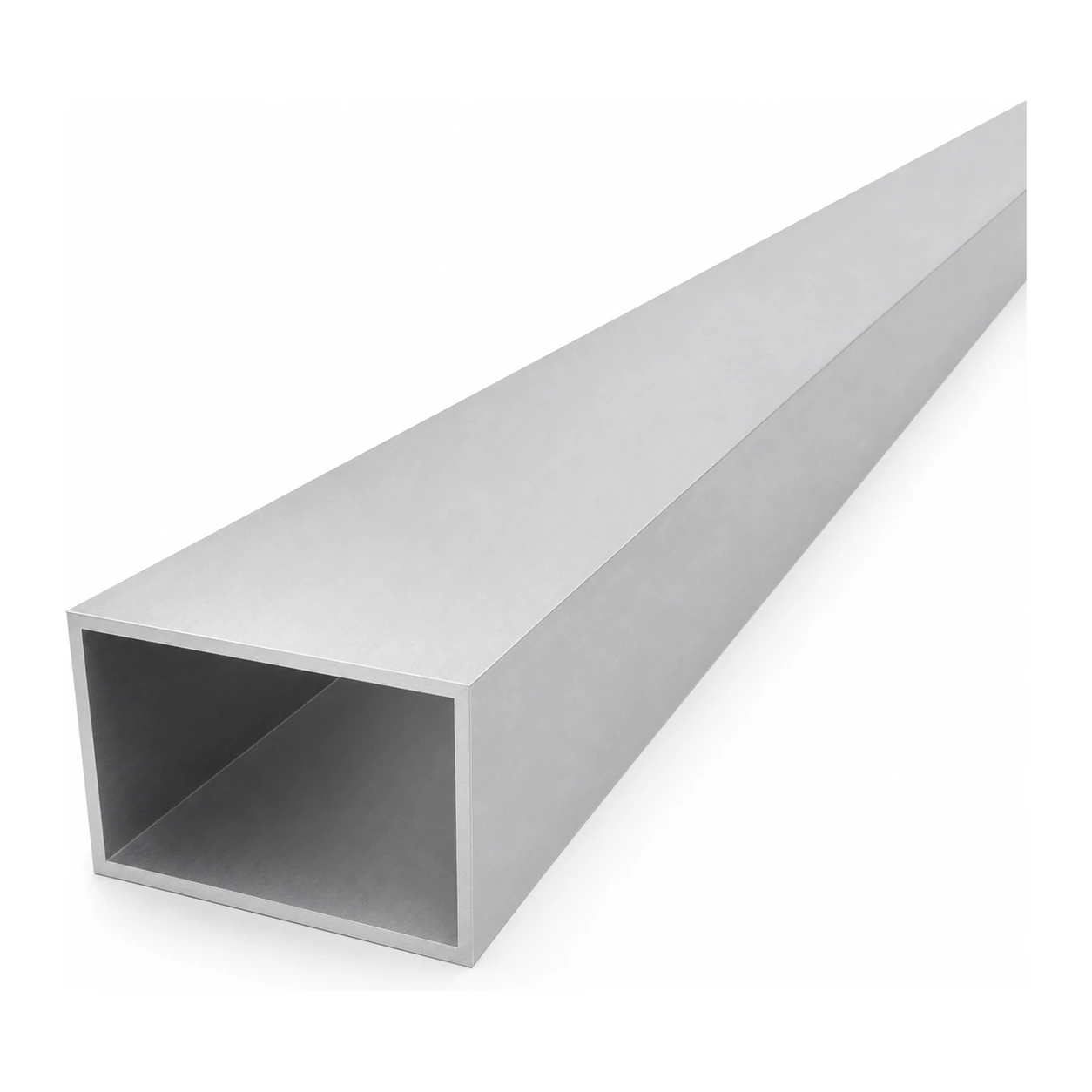

Rectangular aluminium tube 40×60×2 mm – closed profile EN AW-6060, length 2000 mm
Rectangular aluminium tube 40×60×2 mm is a versatile closed profile with a rectangular cross-section, made from EN AW-6060 T64 aluminium alloy (AlMgSi0.5 / PA38). Combining low self-weight with high rigidity and natural corrosion resistance, it is an excellent structural material – suitable for professional installation projects as well as lightweight frame structures, racks, and balustrades.
The profile is supplied in a raw (non-anodised) state, allowing further surface treatment – anodising, powder coating, or painting – in accordance with the requirements of a specific project. Aluminium of this grade is easily cut, drilled, bent, and joined, which significantly speeds up assembly work on site.
Technical Specification
- Profile type: closed rectangular tube
- External width (A): 40 mm
- External height (B): 60 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 40 × 60 × 2000 mm
- Weight: 2.14 kg (1.07 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
The 40×60 mm rectangular profile is widely used in professional and hobbyist structural projects:
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Equipment frames and support structures
- Furniture and interior fittings
- Decorative and finishing elements
- Modelling and DIY projects
The profile is available in a range covering many cross-section size variants and wall thicknesses – making it easy to select the optimum profile for the strength requirements and budget of any project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
| Height [mm] | 60 |
