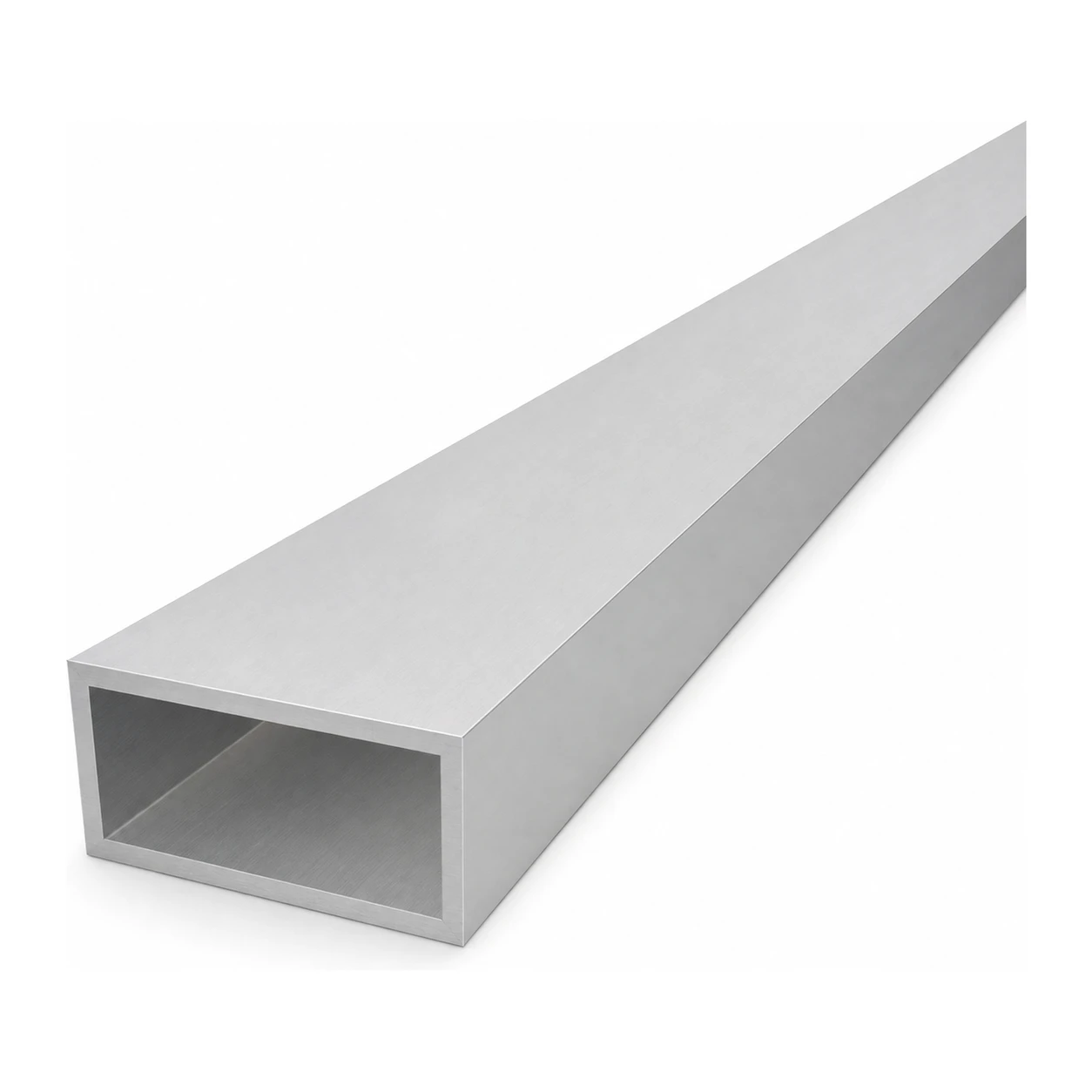

Rectangular aluminium tube 30×60×3 mm – closed profile EN AW-6060, L=2000 mm
Leave feedback on the product
Rectangular aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5). Closed section 30×60 mm, wall thickness 3 mm, length 2000 mm. Weight 2.74 kg. Raw, non-anodised surface.
Product code: 001-638
Product features
[PIM] profile-prostokatne #145
- Material Aluminium
- Shorter side [mm] 30
- Longer side [mm] 60
- Wall Thickness [mm] 3
- Length [mm] 2000
Description
Rectangular aluminium tube 30×60×3 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 30×60×3 mm is a versatile closed profile with a length of 2000 mm, designed for building lightweight yet strong structures. Made of EN AW-6060 T6/T66 aluminium alloy (AlMgSi0.5 / PA38), it combines low weight with high rigidity and natural corrosion resistance – ideal wherever durability is required together with reduced structural weight.
The profile is easy to machine – it can be freely cut, drilled, bent and joined using standard workshop tools and techniques. The raw (non-anodised) surface allows any finish: anodising, powder coating or painting, giving complete freedom to adapt it to the requirements of a specific project.
Dimensions and technical parameters
- Cross-section: closed rectangular tube
- Outer width (A): 30 mm
- Outer height (B): 60 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Overall dimensions (w × h × l): 30 × 60 × 2000 mm
- Weight: 2.74 kg (1.37 kg/m)
Material and surface
- Aluminium alloy: EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
The 30×60 mm rectangular tube is widely used in professional projects:
- Aluminium structures and load-bearing frames
- Balustrades, handrails and fences
- Frames and supports for equipment
- Furniture and interior fittings
- Decorative and finishing elements
- Modelling and custom projects
EN AW-6060 is one of the most commonly used aluminium alloys in construction and industry – it provides excellent weldability, good machinability and high resistance to atmospheric corrosion. The profile is available in a range of cross-section dimensions and wall thicknesses, making it easier to choose the optimal solution for any project.
The profile is supplied in fixed-length sections, which makes material planning easier when cutting to size and minimises waste on site.
