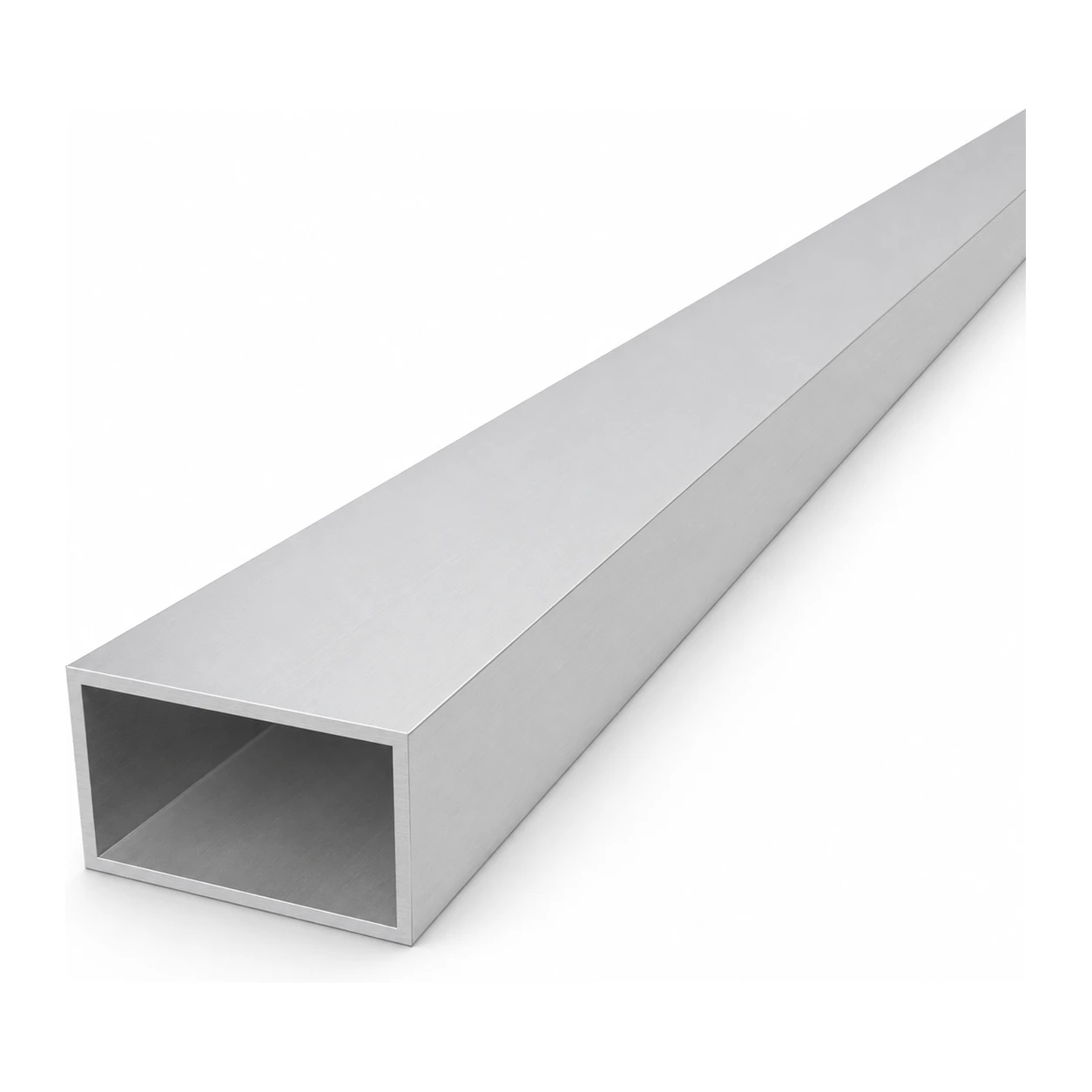

Rectangular aluminium tube 30×50×2 mm – closed profile L=2000 mm
Leave feedback on the product
Rectangular aluminium tube EN AW-6060 T6/T66, mill finish. Closed section 30×50 mm, wall thickness 2 mm, length 2000 mm. Weight 1.75 kg (0.875 kg/m). Alloy AlMgSi0.5 (PA38).
Product code: 001-663
Product features
[PIM] profile-prostokatne #145
- Material Aluminium
- Shorter side [mm] 30
- Longer side [mm] 50
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Rectangular aluminium tube 30×50×2 mm – closed profile L=2000 mm
Rectangular aluminium tube 30×50×2 mm is a versatile closed profile designed for building lightweight and robust structures. Made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), it combines low self-weight with high rigidity and natural corrosion resistance — without the need for additional surface protection. The 2000 mm length profile is ready for cutting, drilling, bending and joining, allowing it to be quickly adapted to individual requirements on site or in the workshop.
Thanks to its rectangular cross-section, the tube provides increased bending stiffness along the longer axis, making it an ideal load-bearing element in frameworks, frames, balustrades and handrails, as well as in aluminium structures for photovoltaic and industrial installations. The mill finish (non-anodised) surface allows further processing — anodising, powder coating or leaving in its natural state.
Dimensions and cross-section parameters
- Cross-section: closed rectangular tube
- External width (A): 30 mm
- External height (B): 50 mm
- Wall thickness (T): 2 mm
- Profile length: 2000 mm
- Dimensions (W × H × L): 30 × 50 × 2000 mm
Material and surface
- Aluminium alloy: EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: mill finish (non-anodised)
- Weight: 1.75 kg (0.875 kg/m)
Applications
- Aluminium structures and load-bearing frameworks
- Balustrades, handrails and fencing
- Equipment frames and supports
- Furniture and decorative elements
- Modelling and DIY projects
The profile is available as part of a range — in many cross-section and wall thickness variants, making it easy to select the optimum solution for any project.
