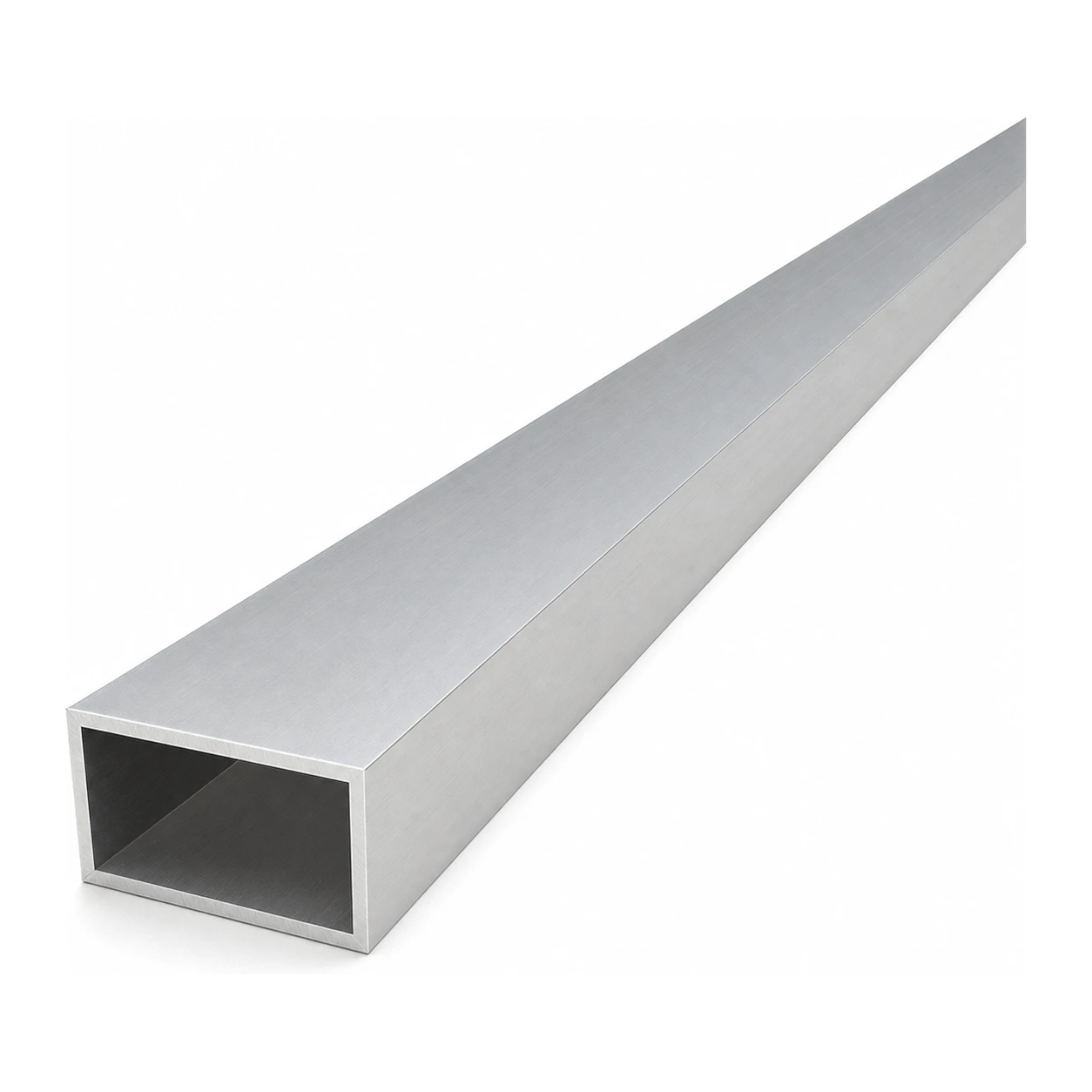

Rectangular aluminium tube 25×40×2 mm – closed profile EN AW-6060, L=2000 mm
Leave feedback on the product
Rectangular aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5), 25×40×2 mm, length 2000 mm. Weight 1.32 kg. Closed section. Raw, non-anodised surface.
Product code: 001-664
Product features
[PIM] profile-prostokatne #145
- Material Aluminium
- Shorter side [mm] 25
- Longer side [mm] 40
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Rectangular aluminium tube 25×40×2 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 25×40×2 mm is a versatile closed profile with a length of 2000 mm, made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its excellent strength-to-weight ratio, it is a popular choice among installation and construction companies wherever low structural weight is important whilst maintaining high rigidity and corrosion resistance.
The profile in its raw (non-anodised) state allows for further processing — cutting, drilling, bending, welding, and anodising — making it adaptable to individual project requirements. It is well suited for aluminium structures, frames, rails, balustrades, handrails, furniture and decorative components, as well as for modelling and prototyping.
Dimensions and technical parameters
- Section: closed rectangular tube
- External width (A): 25 mm
- External height (B): 40 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 25 × 40 × 2000 mm
- Weight: 1.32 kg (0.66 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Advantages of EN AW-6060 aluminium profile
- Lightweight — aluminium is approx. 3× lighter than steel, making transport and installation easier
- Corrosion resistance — 6060 alloy requires no additional protection in outdoor conditions
- High rigidity — the closed rectangular section provides strength in bending and torsion
- Ease of processing — the profile can be cut, drilled, tapped, bent, welded (TIG/MIG), and anodised
- Wide range of applications — load-bearing structures, balustrades, frames, rails, furniture, decorative elements, and prototypes
The profile is available in a range of sizes covering many cross-section dimensions and wall thicknesses, allowing the optimum variant to be selected for any specific project.
