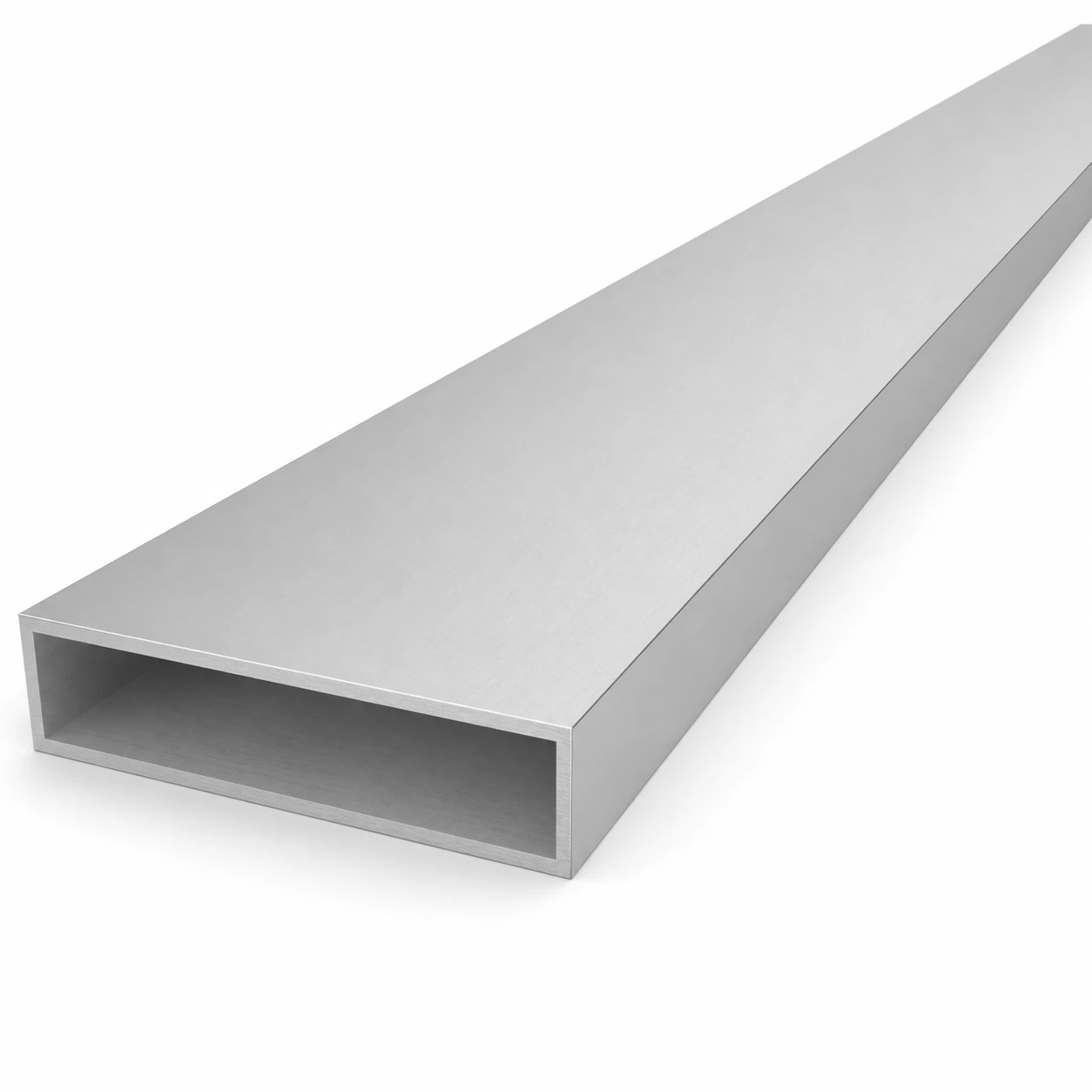

Rectangular aluminium tube 20×80×2 mm – closed profile EN AW-6060 L=2000 mm
Leave feedback on the product
Rectangular aluminium tube EN AW-6060 T6/T66 (PA38 / AlMgSi0.5). Closed section 20×80 mm, wall thickness 2 mm, length 2000 mm. Raw, non-anodised surface. Weight 2.2 kg (1.1 kg/m).
Product code: 001-661
Product features
[PIM] profile-prostokatne #145
- Material Aluminium
- Shorter side [mm] 20
- Longer side [mm] 80
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Rectangular aluminium tube 20×80×2 mm – closed profile EN AW-6060 L=2000 mm
Rectangular aluminium tube 20×80×2 mm is a lightweight, durable closed profile with a rectangular cross-section, made of EN AW-6060 T6/T66 aluminium alloy (PA38 / AlMgSi0.5). Thanks to its excellent stiffness-to-weight ratio and natural corrosion resistance, the profile is ideal as a load-bearing element in aluminium structures, frames, supports and balustrades. The 2000 mm length makes it easy to match typical design dimensions — the profile can be easily cut, drilled, bent and joined without specialist equipment.
Dimensions and cross-section parameters
- Section type: closed rectangular tube
- External width (A): 20 mm
- External height (B): 80 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Overall dimensions (w × h × l): 20 × 80 × 2000 mm
Material and surface
- Aluminium alloy: EN AW-6060 T6/T66 (PA38 / AlMgSi0.5 / 3.3206)
- Surface: raw (non-anodised)
- Weight: 2.2 kg (1.1 kg/m)
Applications
The profile is widely used in installation and construction work. It is well suited as part of aluminium structures, balustrades and handrails, supports and frames, as well as in the construction of furniture, decorative elements, and in modelling and DIY projects. EN AW-6060 alloy offers good machinability — the profile can be easily cut, drilled, bent and joined using standard workshop tools.
The profile is available in a range covering many cross-section sizes and wall thicknesses, allowing you to choose the optimum variant for your specific project.
The profile is supplied in fixed-length sections, which simplifies material planning when cutting to size and minimises waste on the construction site.
