Rectangular aluminium tube 20×70×2 mm – closed profile EN AW-6060, L=2000 mm
0
Description

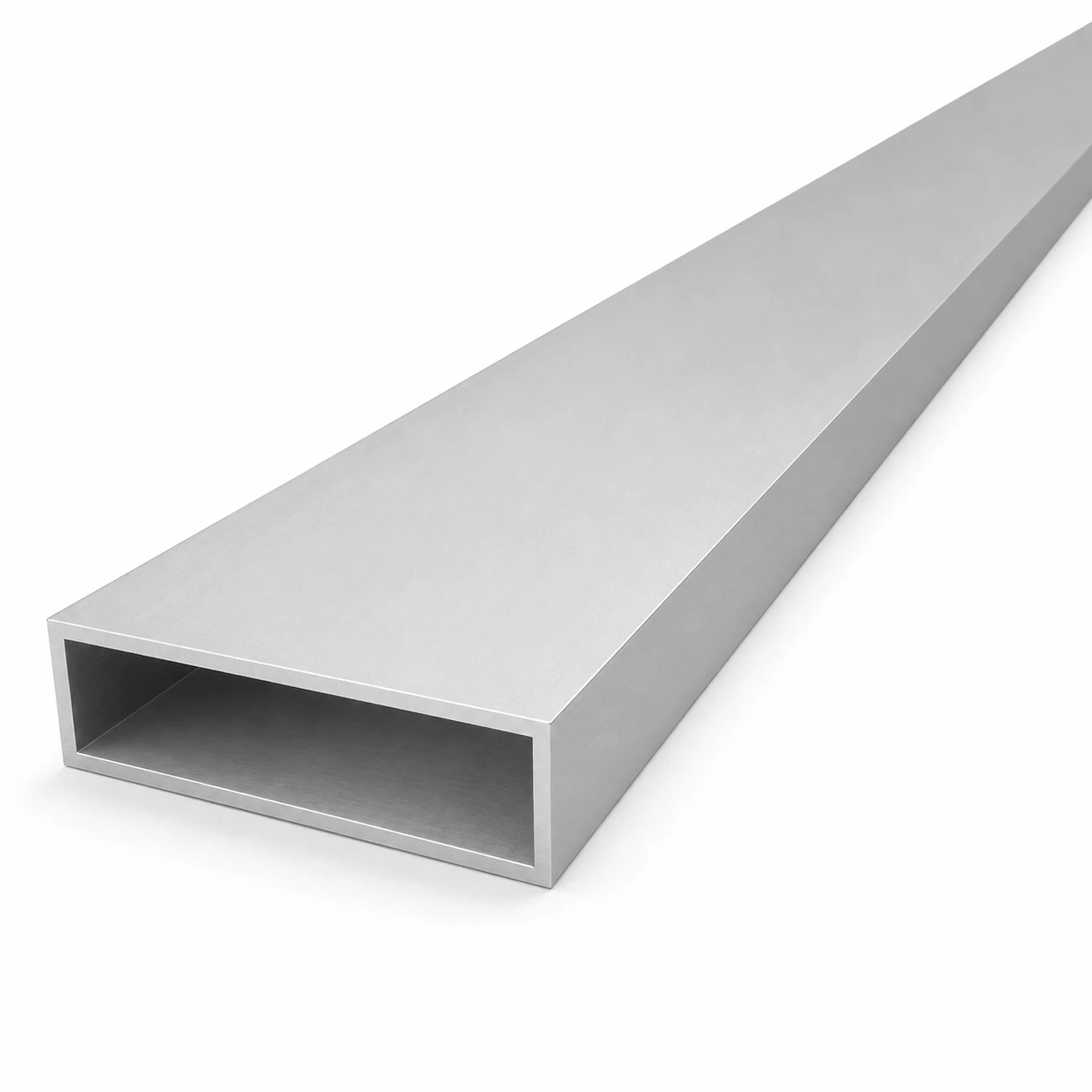

Rectangular aluminium tube 20×70×2 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 20×70×2 mm is a lightweight and sturdy closed profile with a length of 2000 mm, manufactured from EN AW-6060 T64 aluminium alloy (AlMgSi0.5 / PA38). Thanks to its rectangular cross-section, it combines high rigidity with low self-weight, making it an excellent choice for professional aluminium structures, frames, load-bearing frames, and handrails.
The profile surface is raw (non-anodised), giving full freedom for further processing — anodising, powder coating, or leaving in its natural state. Grade 6060 aluminium is characterised by high corrosion resistance, good weldability, and ease of cutting, drilling, and bending, which significantly speeds up assembly work.
Technical Specification
- Cross-section: closed rectangular tube
- External width (A): 20 mm
- External height (B): 70 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 20 × 70 × 2000 mm
- Weight: 1.84 kg (0.92 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
The 20×70 mm rectangular aluminium profile is suitable wherever a rigid and lightweight structure is required whilst maintaining an attractive appearance. Typical applications include:
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Furniture frames and shelving
- Decorative and finishing elements
- Scale modelling and DIY projects
The profile is available in a standard range — in many cross-section dimension and wall thickness variants — allowing the optimum profile to be selected for a specific load and application.
