Rectangular aluminium tube 20×60×2 mm – closed profile EN AW-6060, L=2000 mm
0
Description
Rectangular aluminium tube 20×60×2 mm – closed profile EN AW-6060, L=2000 mm

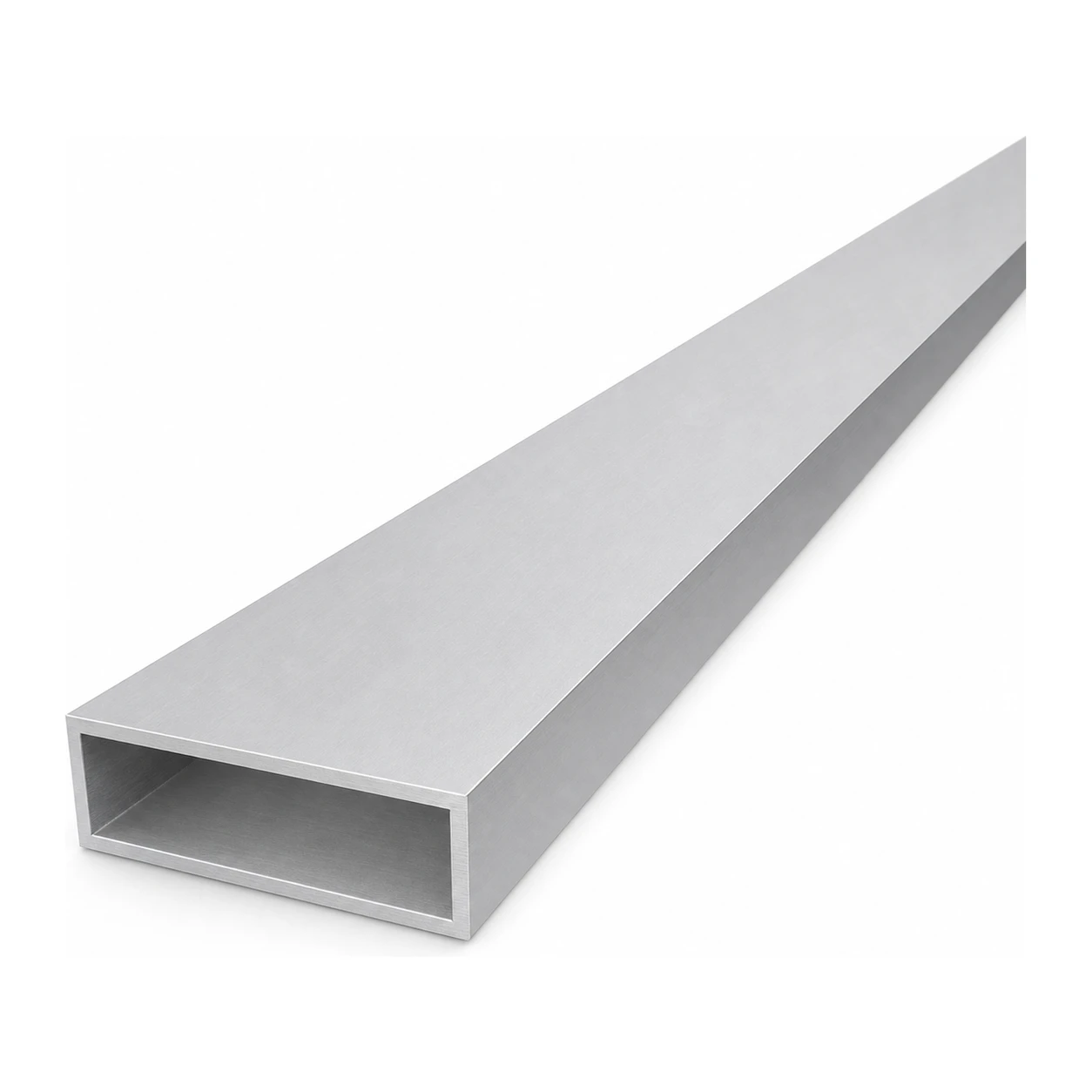

Rectangular aluminium tube 20×60×2 mm is a closed rectangular section profile made from aluminium alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). With a low weight of just 1.7 kg at a length of 2000 mm and high rigidity, the profile is ideal for constructions requiring lightness and corrosion resistance — from frames and mounting structures to balustrades and decorative elements.
The raw (non-anodised) aluminium surface allows for any finishing treatment — anodising, powder coating, or leaving in its natural state. The profile is easy to cut, drill, bend, and join, which significantly speeds up workshop operations and on-site assembly.
Dimensions and technical parameters
- Section: closed rectangular tube
- External width (A): 20 mm
- External height (B): 60 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 20 × 60 × 2000 mm
- Weight: 1.7 kg (0.85 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and frames
- Balustrades and handrails
- Frames and enclosures
- Furniture and decorative elements
- Modelling and DIY
The profile is available in a range of sizes covering multiple cross-section dimensions and wall thicknesses — you can select the variant best suited to your project.
