Rectangular aluminium tube 20×40×3 mm – EN AW-6060 profile L=2000 mm

Go to Product feedback

Rectangular aluminium tube EN AW-6060 T6/T66, 20×40×3 mm, length 2000 mm. Weight 1.76 kg (0.881 kg/m). Alloy AlMgSi0.5 (PA38). Raw, non-anodised surface.

Go to full description
with VAT without VAT
Price €19.65
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] profile-prostokatne #145

  • Material Aluminium
  • Shorter side [mm] 20
  • Longer side [mm] 40
  • Wall Thickness [mm] 3
  • Length [mm] 2000

Description

Rectangular aluminium tube 20×40×3 mm – EN AW-6060 profile L=2000 mm

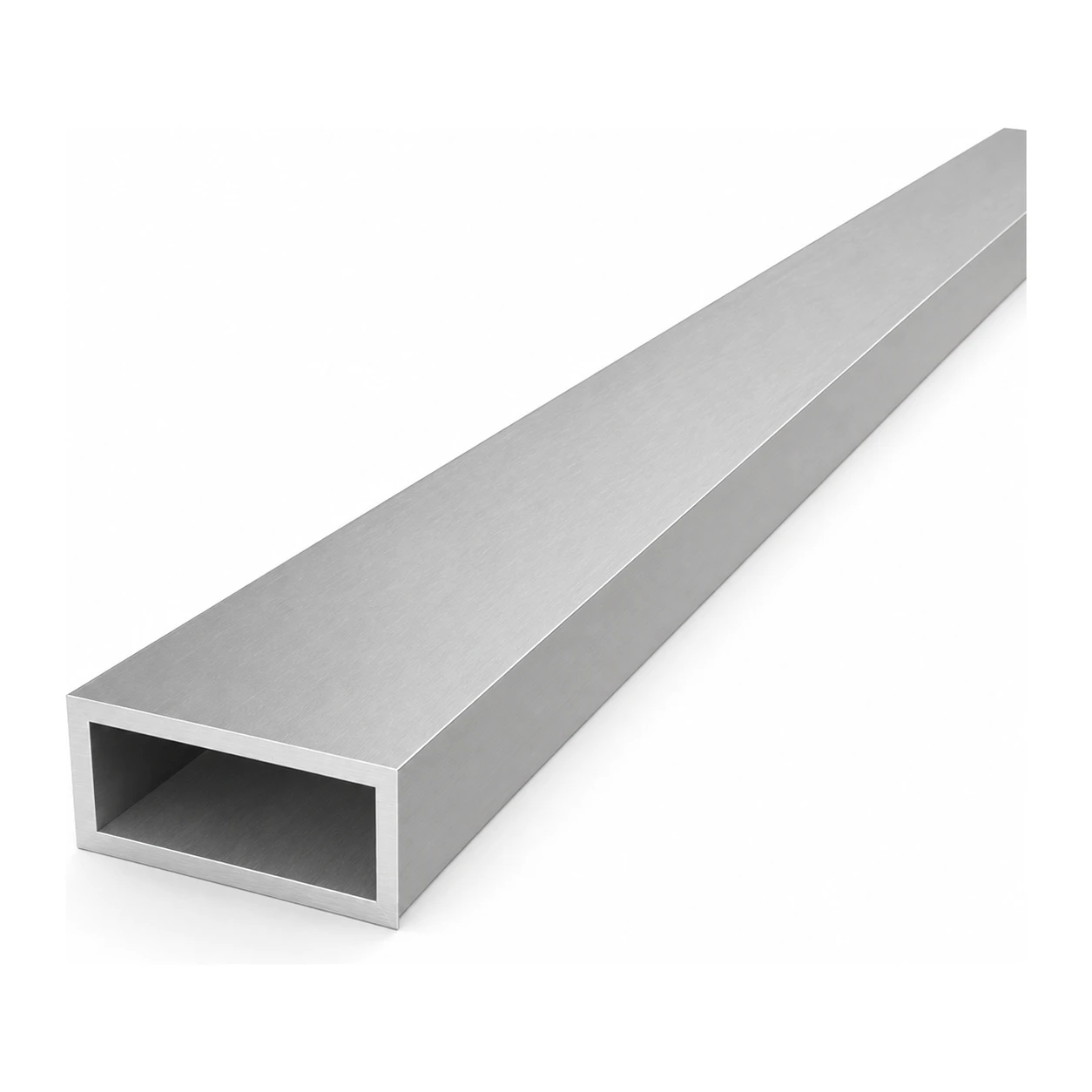

Rectangular aluminium tube 20×40×3 mm – perspective view of the closed profile
Rectangular aluminium tube 20×40×3 mm – perspective view of the closed profile

Rectangular aluminium tube 20×40×3 mm is a versatile closed profile with a rectangular cross-section, designed for building lightweight yet rigid aluminium structures. Made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), it combines low self-weight with good corrosion resistance — without the need for additional surface protection. The profile is supplied in a length of 2000 mm and weighs just 1.76 kg, which greatly facilitates transport, storage and on-site processing.

Aluminium PA38 is excellently suited to cutting, drilling, bending and joining — both by means of rivets and screws, as well as TIG/MIG welding. As a result, the profile performs well wherever precision and speed of assembly are important: from frames and load-bearing structures, through balustrades and handrails, to decorative elements, furniture and modelling applications.

Cross-section of a rectangular tube with dimension labels: A – width, B – height, T – wall thickness
Cross-section of a rectangular tube with dimension labels: A – width, B – height, T – wall thickness

Dimensions and technical specification

  • Cross-section: closed rectangular tube
  • External width (A): 20 mm
  • External height (B): 40 mm
  • Wall thickness (T): 3 mm
  • Length: 2000 mm
  • Dimensions (W × H × L): 20 × 40 × 2000 mm
  • Weight: 1.76 kg (0.881 kg/m)
  • Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
  • Surface: raw (non-anodised)

Applications

  • Aluminium structures and load-bearing frames
  • Balustrades, handrails and fencing
  • Machine frames, guards and enclosures
  • Furniture and interior fittings
  • Decorative and finishing elements
  • Modelling and DIY projects

The profile is part of a wide range of rectangular tubes — available in many combinations of cross-section and wall thickness, allowing the optimum variant to be selected for the requirements of a specific project.
