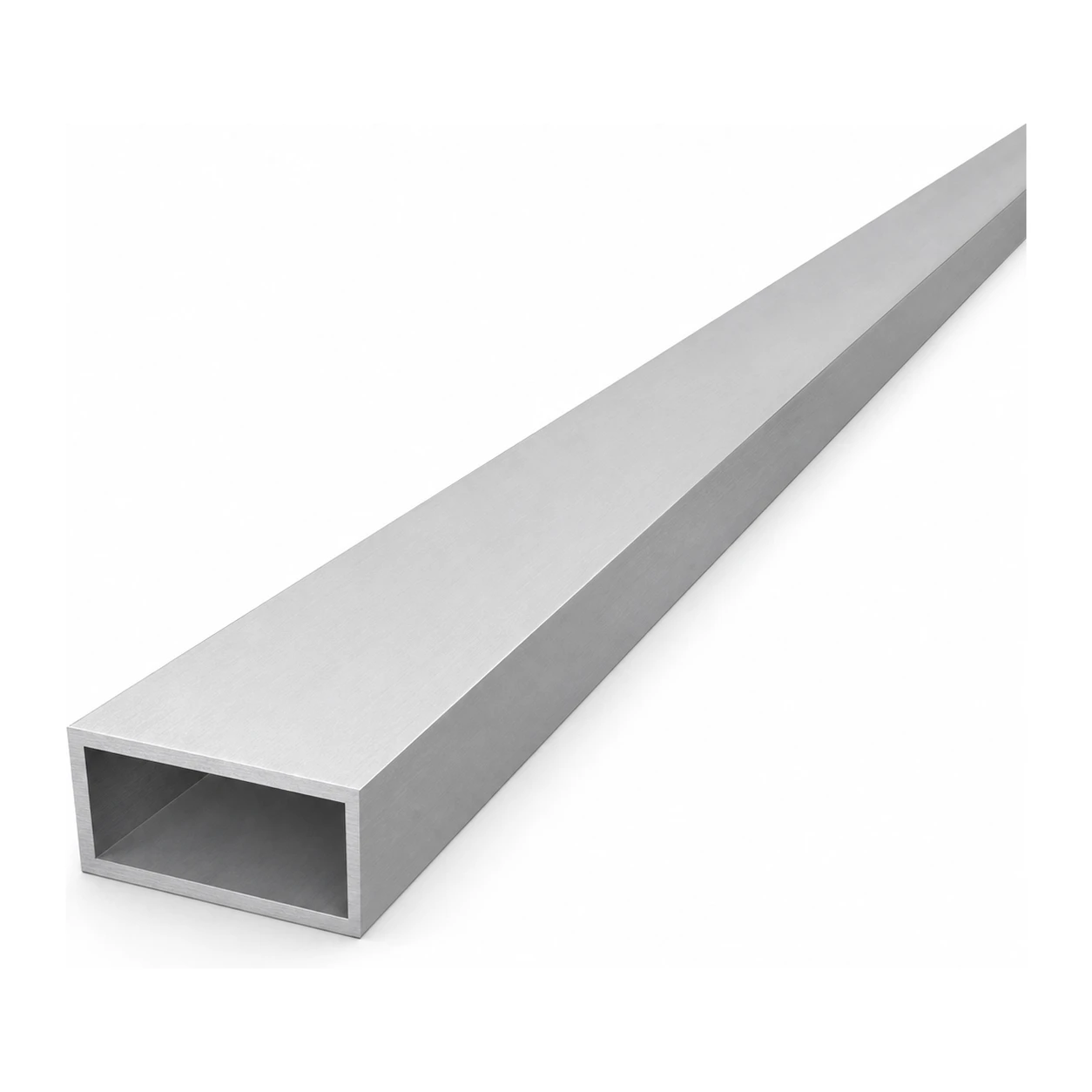

Rectangular aluminium tube 20×40×2 mm EN AW-6060 – length 2000 mm
Leave feedback on the product
Rectangular aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5). Cross-section 20×40 mm, wall thickness 2 mm, length 2000 mm. Weight 1.3 kg. Raw (non-anodised) surface.
Product code: 001-655
Product features
[PIM] profile-prostokatne #145
- Material Aluminium
- Shorter side [mm] 20
- Longer side [mm] 40
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Rectangular aluminium tube 20×40×2 mm EN AW-6060 – length 2000 mm
Rectangular aluminium tube 20×40×2 mm is a versatile closed rectangular profile made from EN AW-6060 T6/T66 aluminium alloy (AlMgSi0.5 / PA38). Combining low self-weight with high rigidity and natural corrosion resistance, this profile is suitable for both load-bearing structures and finishing elements — from frames and mounting structures to balustrades and handrails, as well as furniture and decorative components.
The raw (non-anodised) surface allows further processing — anodising, powder coating or painting — depending on the requirements of the project. The material is easy to cut, drill, bend and join, reducing lead times and lowering assembly costs.
Dimensions and technical specification
- Section type: closed rectangular tube
- External width (A): 20 mm
- External height (B): 40 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 20 × 40 × 2000 mm
- Weight: 1.3 kg (0.65 kg/m)
Material
- Alloy: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails and fencing
- Mounting frames and installation supports
- Furniture and decorative elements
- Modelling and workshop projects
The profile is available in a range of cross-section sizes and wall thicknesses, allowing selection of the optimum variant for a specific application.
