Rectangular aluminium tube 15×40×2 mm – closed profile EN AW-6060, L=2000 mm

Go to Product feedback

Rectangular aluminium tube EN AW-6060 T6/T66 (PA38, AlMgSi0.5). Cross-section 15×40 mm, wall thickness 2 mm, length 2000 mm. Weight 1.08 kg. Raw, non-anodised surface.

Go to full description
with VAT without VAT
Price €13.28
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] profile-prostokatne #145

  • Material Aluminium
  • Shorter side [mm] 15
  • Longer side [mm] 40
  • Wall Thickness [mm] 2
  • Length [mm] 2000

Description

Rectangular aluminium tube 15×40×2 mm – closed profile EN AW-6060, L=2000 mm

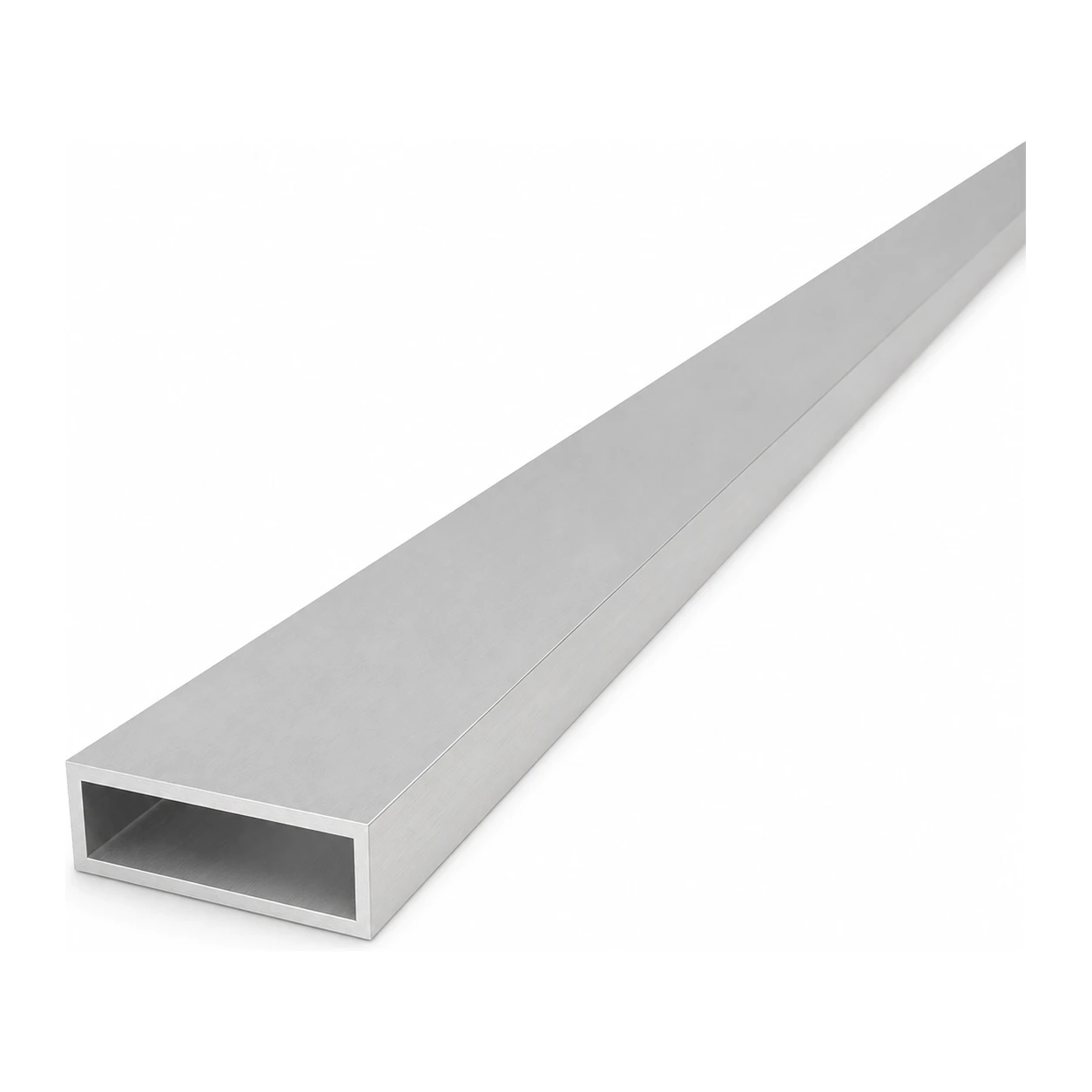

Rectangular aluminium tube 15×40×2 mm – perspective view of the closed profile
Rectangular aluminium tube 15×40×2 mm – perspective view of the closed profile

Rectangular aluminium tube 15×40×2 mm is a robust closed rectangular-section profile made from aluminium alloy EN AW-6060 T6/T66 (PA38, AlMgSi0.5). Thanks to its excellent stiffness-to-weight ratio and inherent corrosion resistance, this profile is suitable for lightweight aluminium structures as well as load-bearing elements such as frames, racks, and balustrades. The 2000 mm length makes it easy to design standard spans and segments without the need for cutting.

The raw, non-anodised surface allows for any finishing treatment — anodising, powder coating, or painting — depending on the aesthetic and environmental requirements of the project. Grade 6060 aluminium is easy to cut, drill, bend, and join, which significantly speeds up assembly work on site.

Cross-section of the rectangular tube with dimension labels A (width), B (height) and T (wall thickness)
Cross-section of the rectangular tube with dimension labels A (width), B (height) and T (wall thickness)

Technical Specification

  • Section type: closed rectangular tube
  • External width (A): 15 mm
  • External height (B): 40 mm
  • Wall thickness (T): 2 mm
  • Length: 2000 mm
  • Dimensions (W × H × L): 15 × 40 × 2000 mm
  • Weight: 1.08 kg (0.542 kg/m)
  • Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5, 3.3206)
  • Surface: raw (non-anodised)

Applications

  • Aluminium structures and load-bearing frames
  • Balustrades, handrails, and barriers
  • Equipment frames and enclosures
  • Furniture and finishing elements
  • Decorative features and modelling

The profile is available in a range of cross-section sizes and wall thicknesses, allowing the optimum variant to be selected for the design loads without over-engineering the structure.
