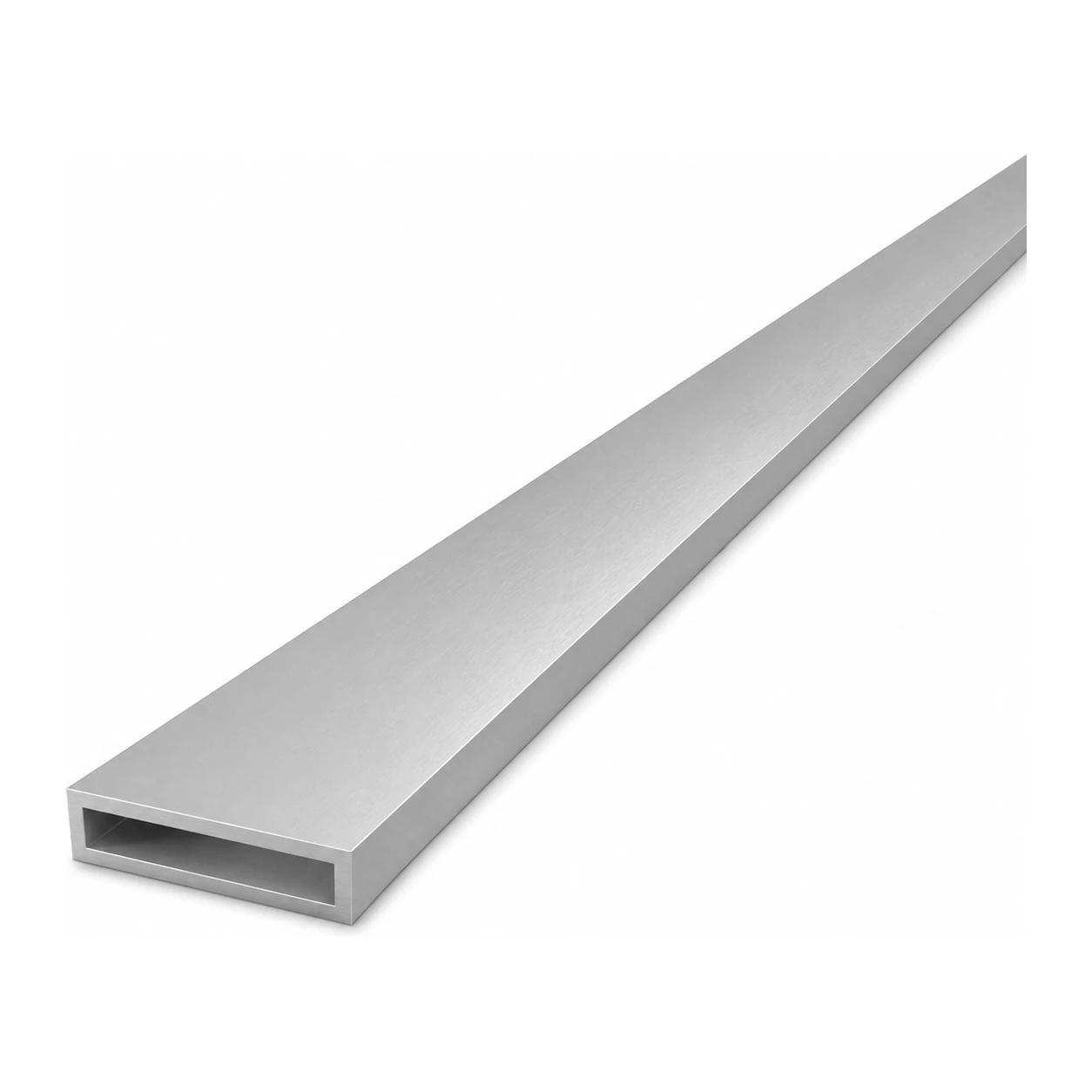

Rectangular aluminium tube 10×40×2 mm – closed profile L=2000 mm
Leave feedback on the product
Rectangular aluminium tube EN AW-6060 T6/T66 (PA38, AlMgSi0.5). Cross-section 10×40 mm, wall thickness 2 mm, length 2000 mm. Weight 1.0 kg. Raw, non-anodised surface.
Product code: 001-650
Product features
[PIM] profile-prostokatne #145
- Material Aluminium
- Shorter side [mm] 10
- Longer side [mm] 40
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Rectangular aluminium tube 10×40×2 mm – closed profile L=2000 mm
Rectangular aluminium tube 10×40×2 mm is a sturdy closed profile with a length of 2000 mm, made from aluminium alloy EN AW-6060 T6/T66 (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio and high corrosion resistance, this profile is suitable wherever lightweight construction and durability are required — from frames and mounting structures to balustrades, furniture components, and aluminium constructions.
The rectangular profile with a cross-section of 10 × 40 mm and a wall thickness of 2 mm combines low self-weight with high bending stiffness along the longer side. The raw, non-anodised aluminium surface allows for any finishing treatment — anodising, powder coating, or leaving in its natural state. The material is easy to machine: cutting, drilling, bending, and joining, which significantly speeds up assembly work on site and in the workshop.
Technical Specification
- Section type: closed rectangular tube
- External width (A): 10 mm
- External height (B): 40 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 10 × 40 × 2000 mm
- Weight: 1.0 kg (0.5 kg/m × 2 m)
- Material: aluminium PA38 (EN AW-6060 T6/T66)
- Alloy: AlMgSi0.5 (alternative designation: 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and mounting frames
- Balustrades, handrails, and fencing
- Furniture frames and subframes
- Decorative and finishing elements
- Modelling and DIY projects
This profile is part of a range of rectangular tubes available in many cross-section dimensions and wall thicknesses, making it easy to select the optimal variant for any project.
