Postal – corner mounting plate for flat handrail 43×43×4 mm AISI 304 satin
Description

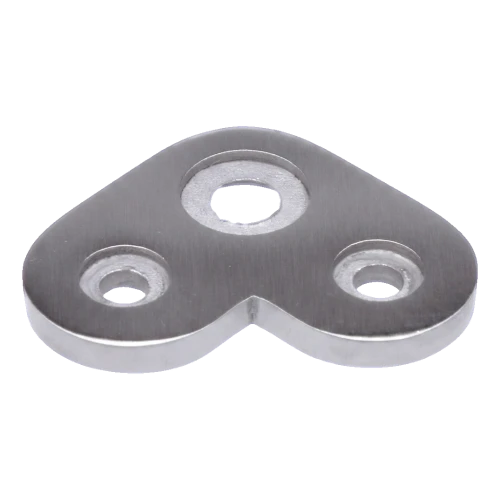

Postal – corner mounting plate for flat handrail 43×43×4 mm AISI 304 satin
Corner mounting plate for flat handrail systems, designed to secure handrails from above to flat surfaces using screws. Thanks to its compact 90° angle bracket form and three mounting holes, it provides stable and aesthetic corner connection of balustrade elements.
The plate is made from AISI 304 stainless steel with a satin finish, which guarantees high corrosion resistance and an elegant, understated appearance that perfectly complements modern balustrades. AISI 304 material performs well in both internal and external applications — it is resistant to moisture and cleaning agents.
Three mounting holes — including a central one with conical recess — enable secure fastening of the plate to the substrate. Compact dimensions and low mass (36 g) facilitate storage and transport, whilst the simple form reduces installation time on site.

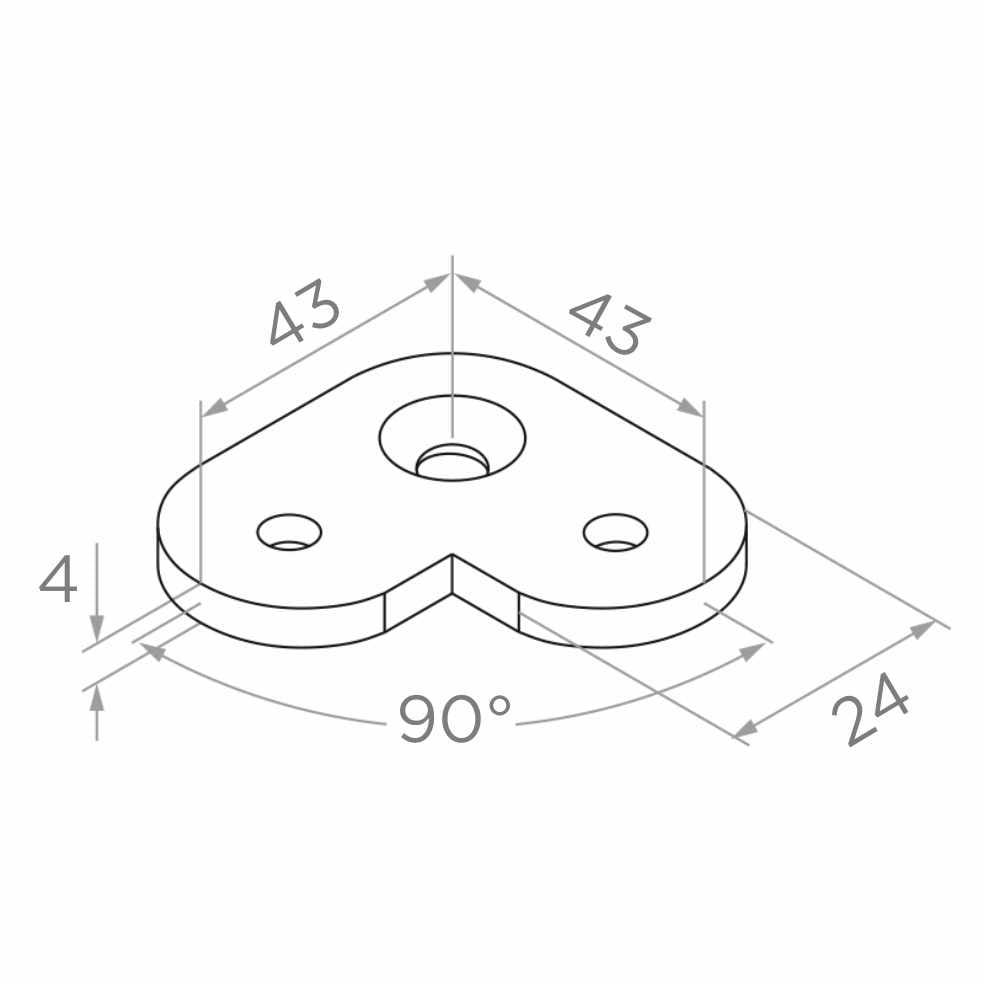

Dimensions and technical parameters
- Arm length 1: 43 mm
- Arm length 2: 43 mm
- Arm width: 24 mm
- Plate thickness: 4 mm
- Angle between arms: 90°
- Number of mounting holes: 3 (central with conical recess)
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.036 kg
- System: flat handrails
- EAN: 5901289672153
Application
The plate is designed for corner connection of handrail elements in flat systems. Screwed from above to flat surfaces, it provides an invisible handrail mounting point, allowing the finished balustrade to maintain a clean, minimalist character. It performs ideally in public buildings, commercial facilities and modern residential interiors where aesthetics and connection durability are required.
